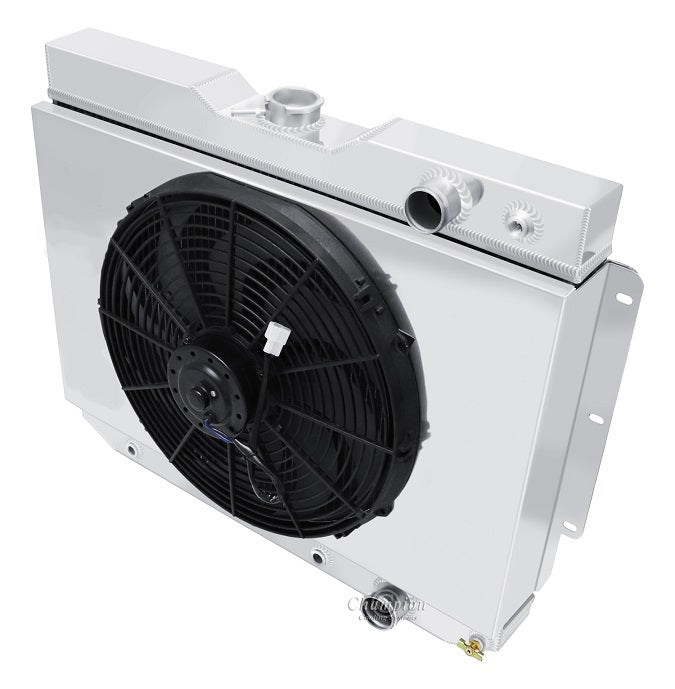

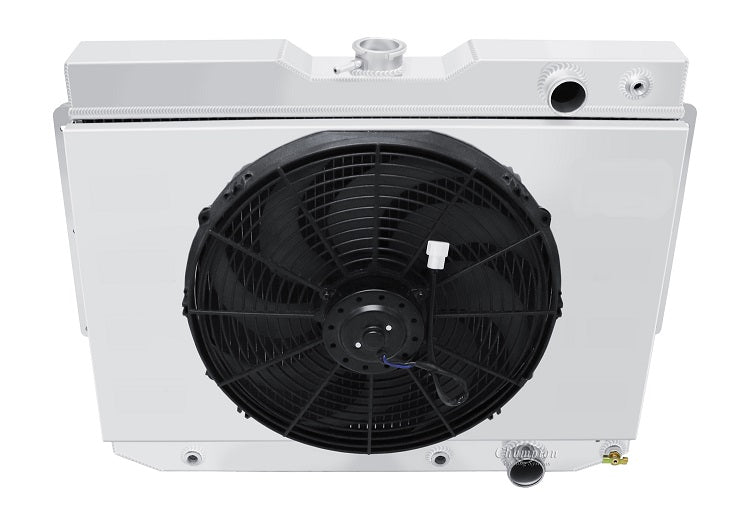

CC281B-LS-281FS16 3 Row for LS Conversion

Champion All-Aluminum Radiator
Plus Ledfoot Racing Shroud & Pro-Series 16" Fan
For LS Conversions
3-Row Core | Cools up to 650hp

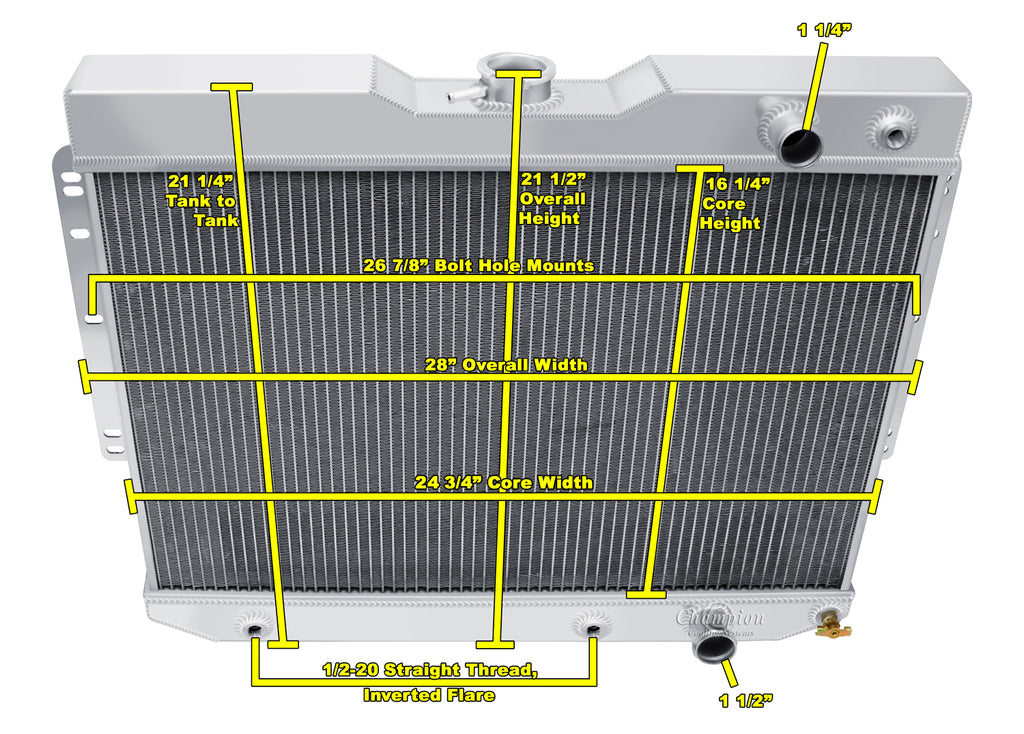

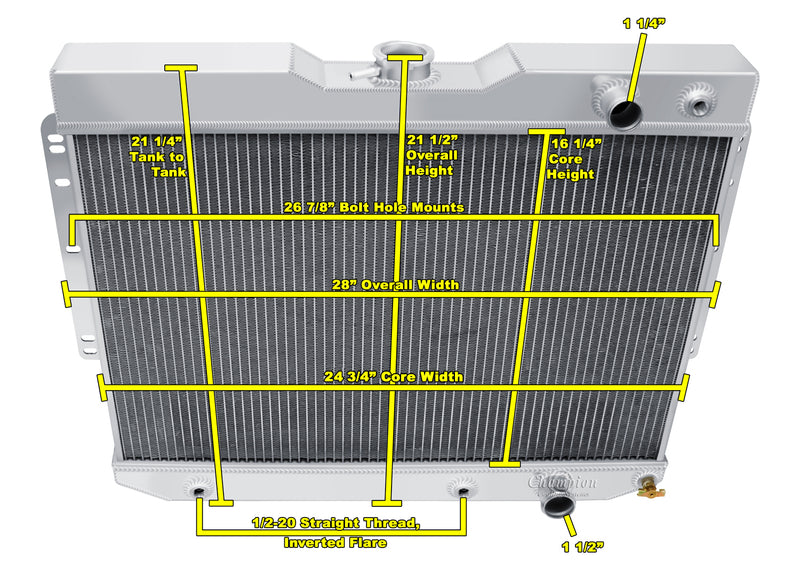

Radiator Dimensions:
Total: 21.75" tall x 28" wide (including brackets)
Core: 16.5" tall x 24.75" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6" to back of fan

Bracket Mounted

Includes Steam Port w/ Barbed fitting and plug
Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
