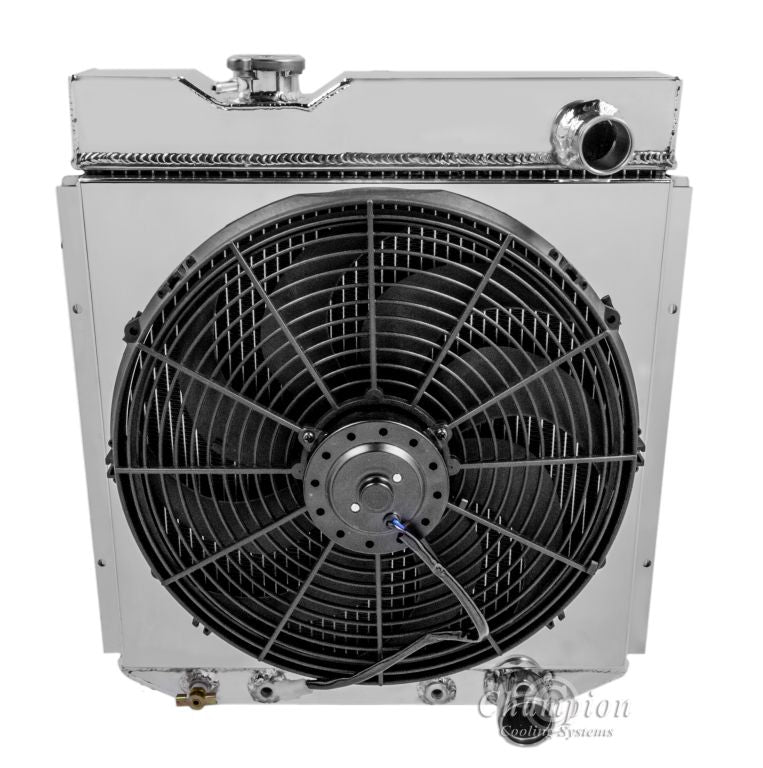

CC259B-259FS16SP 3 Row Combo

Champion All Aluminum Radiator PLUS
Shroud & 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
3-Row Core | Cools up to 450hp

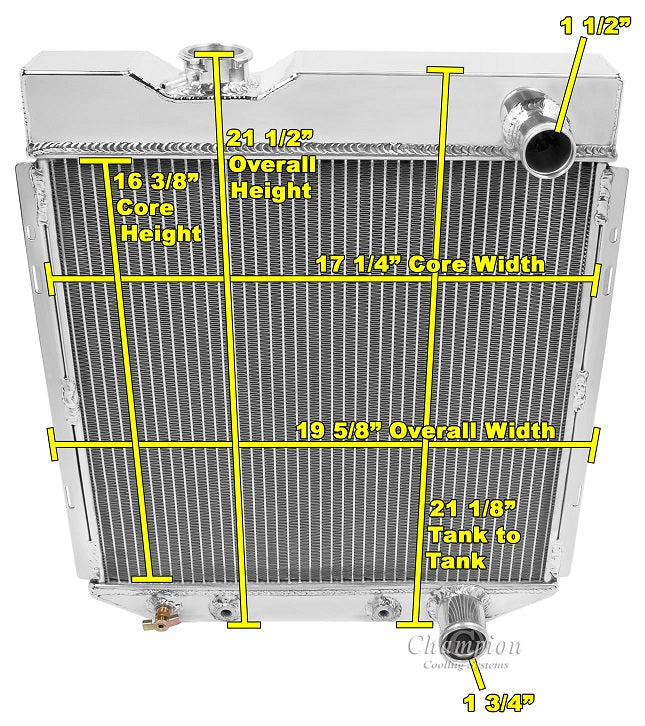

Radiator Dimension:
Total: 21" tall (21.5" with cap) x 19.63" wide (including brackets)
Core: 16.38" tall x 17.25" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick

Total Thickness: 5.5" to back of fan

Bracket Mounted

13 lb. Radiator Cap Included
Transmission Cooler Included (1/8-27NPT)
