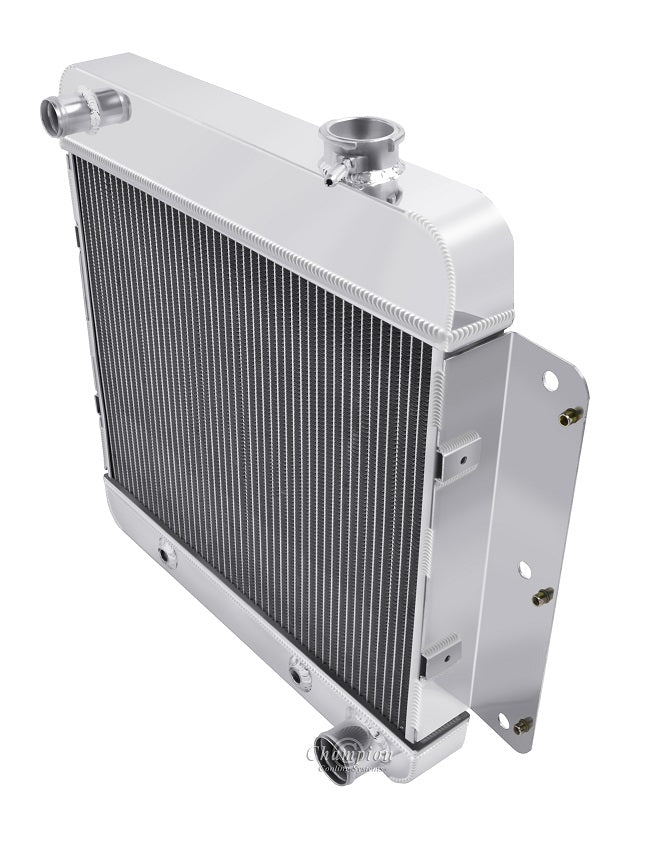

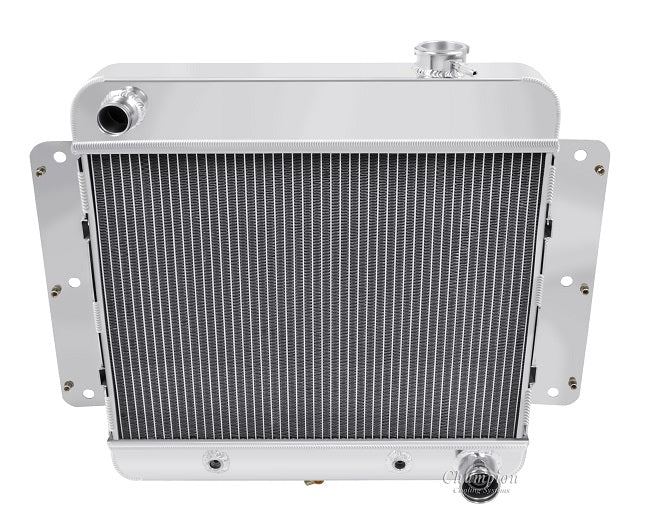

CC255 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp
(Too thick for the 6 cyl. Mild V8 engines only)

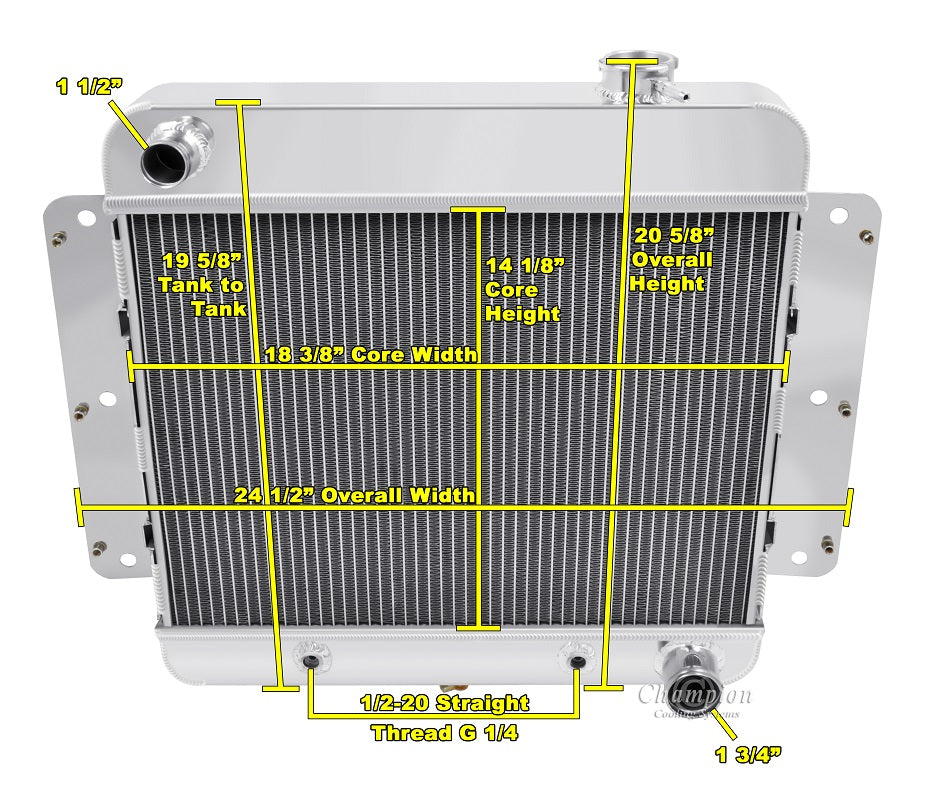

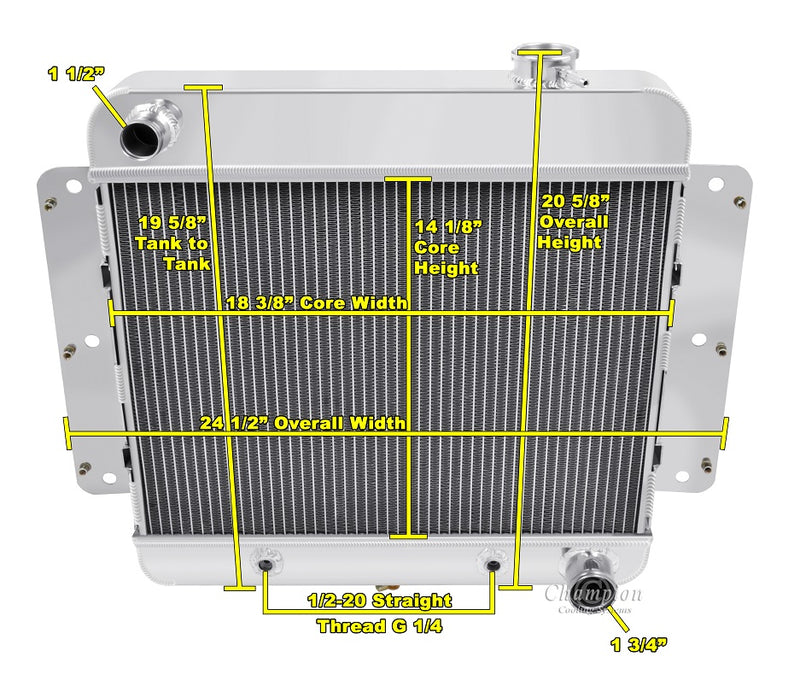

CC255 Radiator Dimensions:
Total: 22.13" tall x 24.5" wide (including brackets)
Core: 14.13" tall x 18.13" wide x 2" thick
Inlet: 1.25" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator Cap included
Transmission Cooler included (1/2" 20 STRAIGHT THREAD)

When using electric fans:
One 14" Electric fan recommended for this core size (sold separately)
