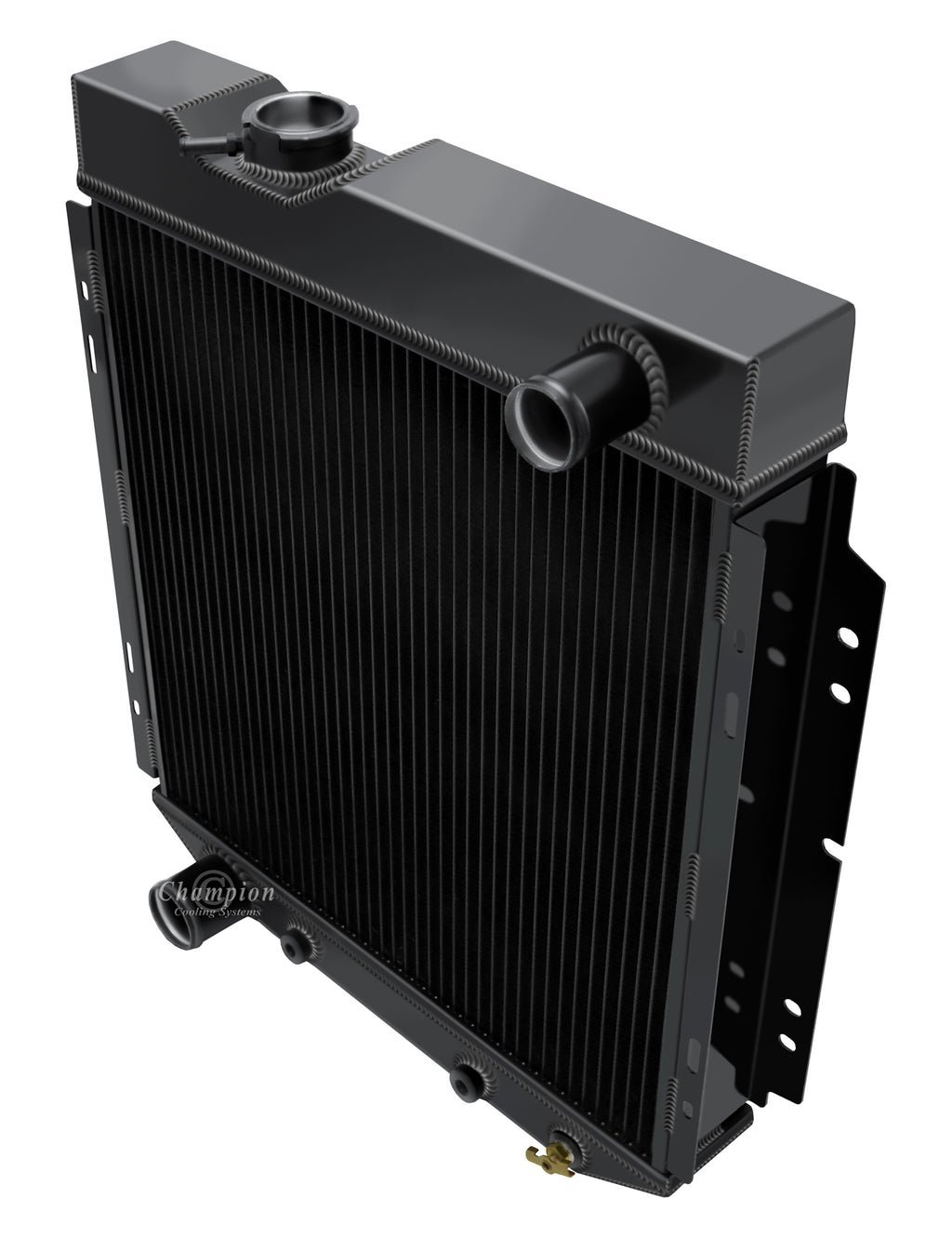

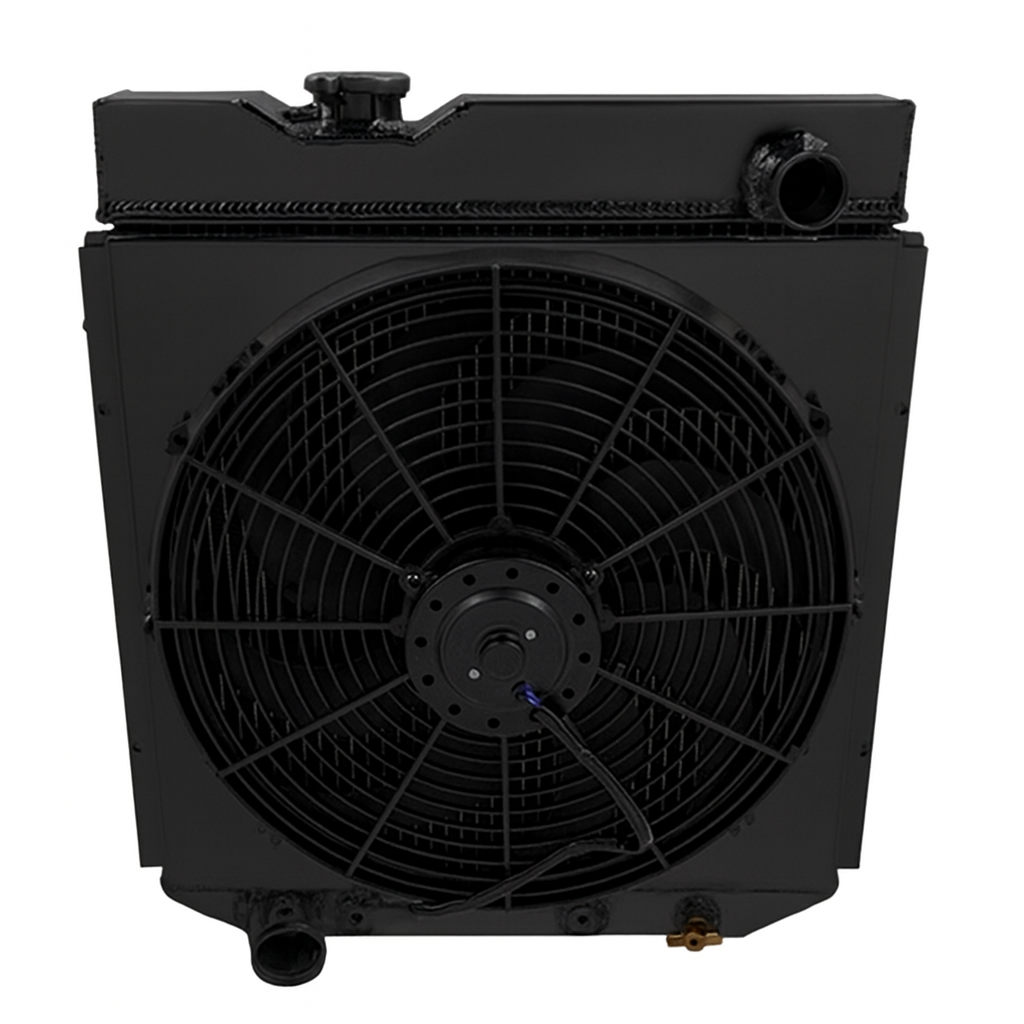

CC251B-BLK-251FS16SP 3 Row (Black)

Champion All Aluminum Radiator Plus
Shroud & SPAL-1516 Medium Profile 16" fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
3-Row Core | Cools up to 500hp

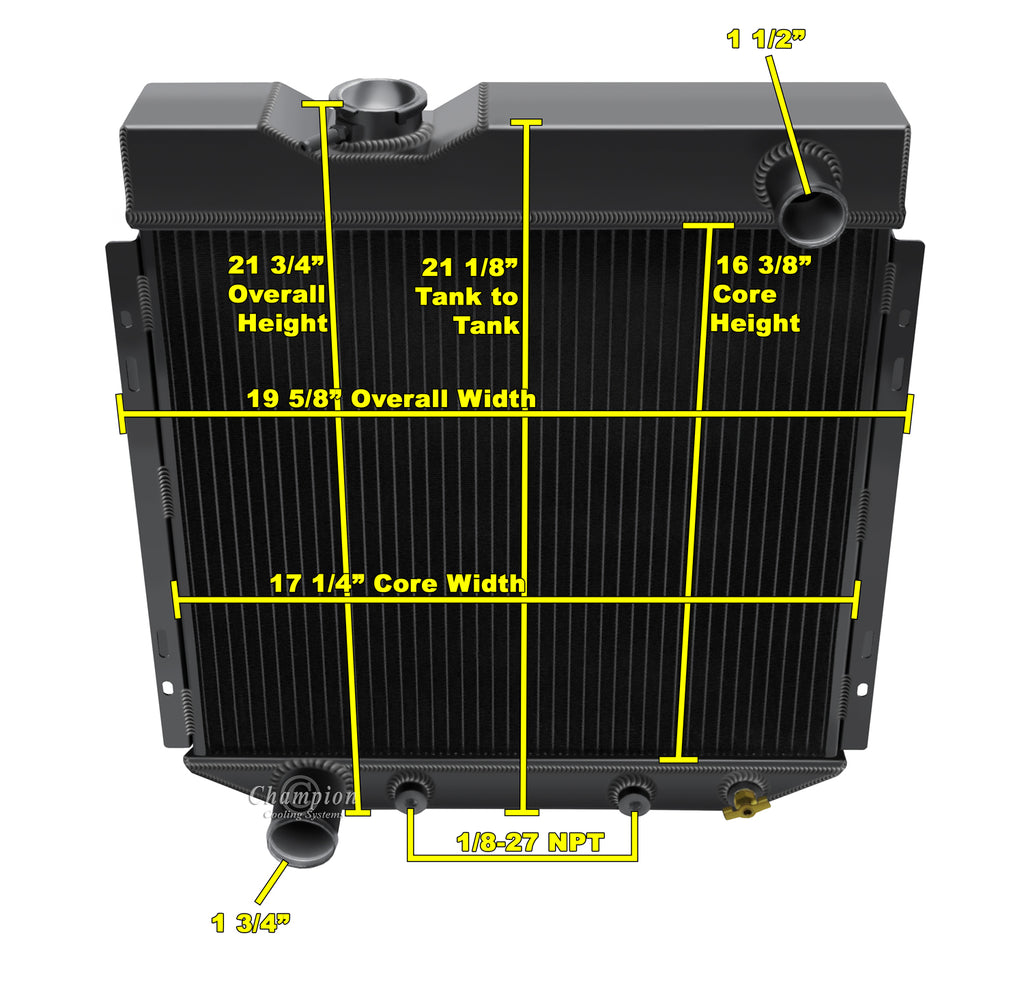

Radiator Dimensions:
Total: 21.75" tall x 19.63 wide (with brackets)
Core: 16.38" tall x 17.25" wide x 1.75" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 4.75" to back of fan

Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler Included (1/8-27NPT)
