Description

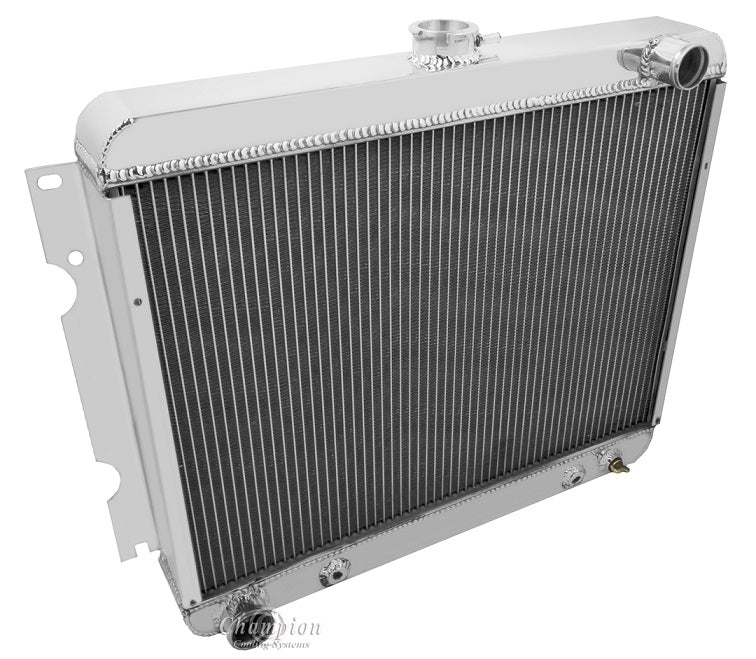

Champion All Aluminum Radiator

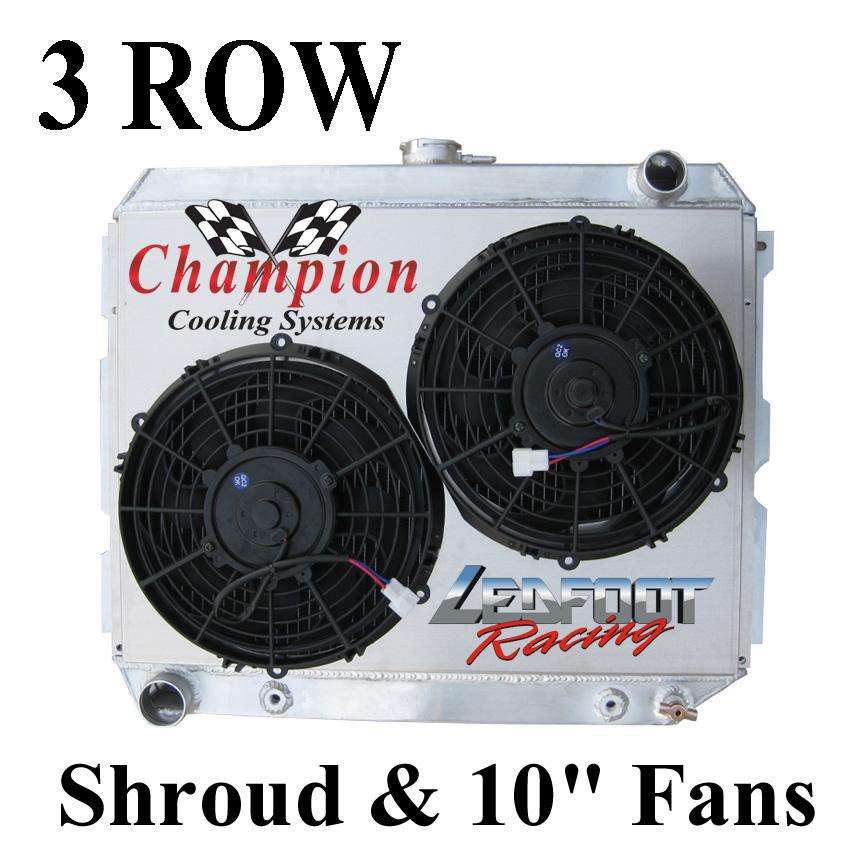

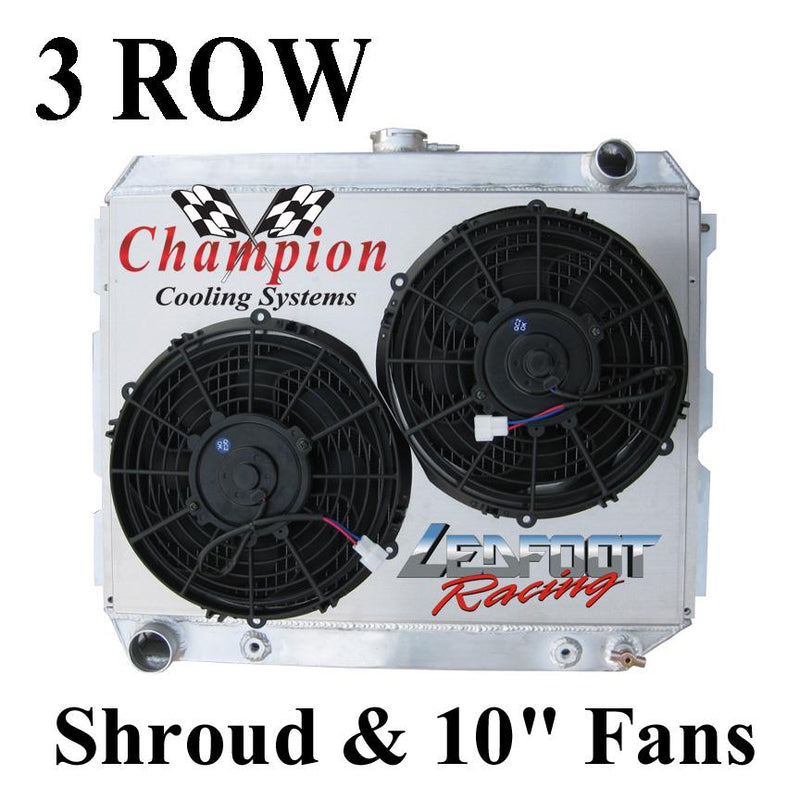

Plus Ledfoot Racing Aluminum Shroud & 2-10" SPAL Fans
3-Row Core | Cools up to 600hp

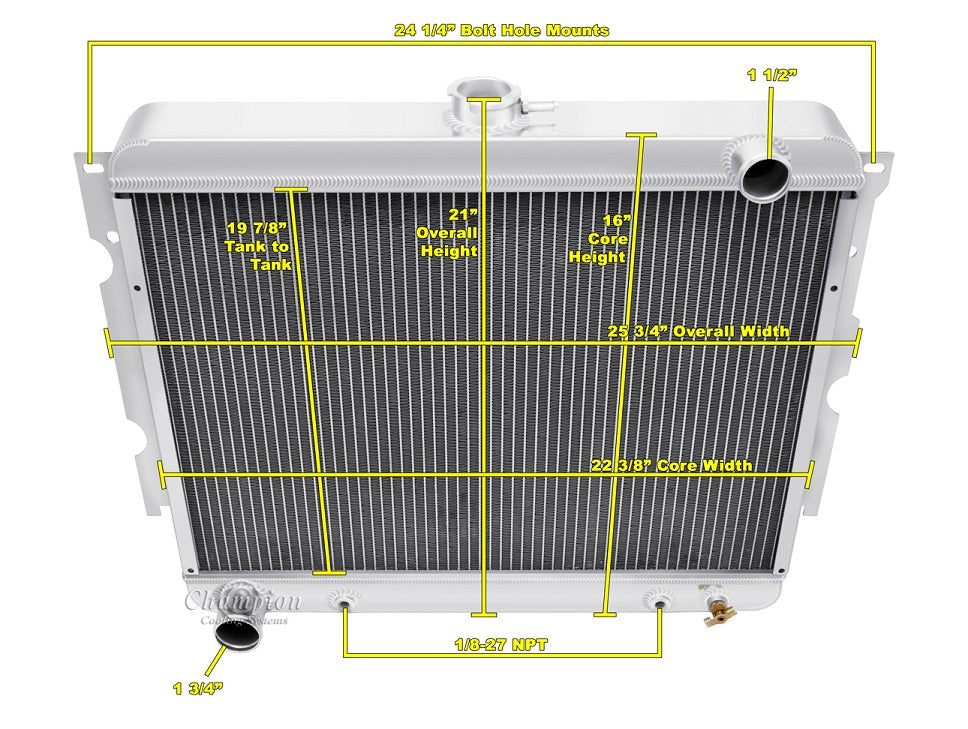

Radiator Dimension:
Total: 20" tall (21" with cap) x 25.63" wide (including brackets)
Core: 16" tall x 22.38" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75"
Tubes: 0.75" thick
Bracket Mounted
5" Thick to back of fans, 4.25" Between motors
Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
Note: This radiator is shorter than OEM
(To fit Multiple Mopar cars)
LIFETIME WARRANTY
PRICE MATCH GUARANTEE
