CC2374B-2374FS16 3 Row Combo

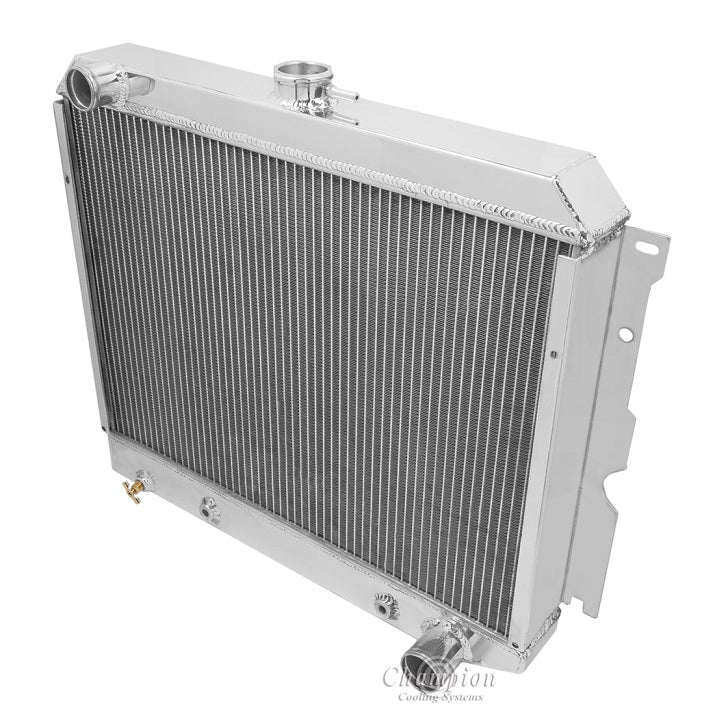

Champion All Aluminum Radiator

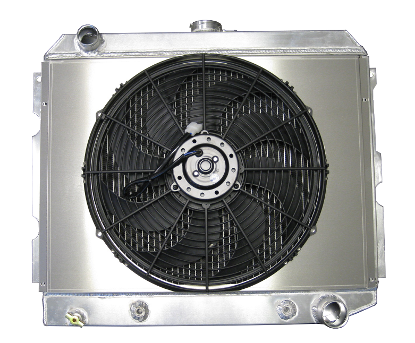

Plus Ledfoot Racing Aluminum Shroud & 16" Fan
3-Row Core | Cools up to 550hp

(Will outperform the 2-10" set up but needs more space)

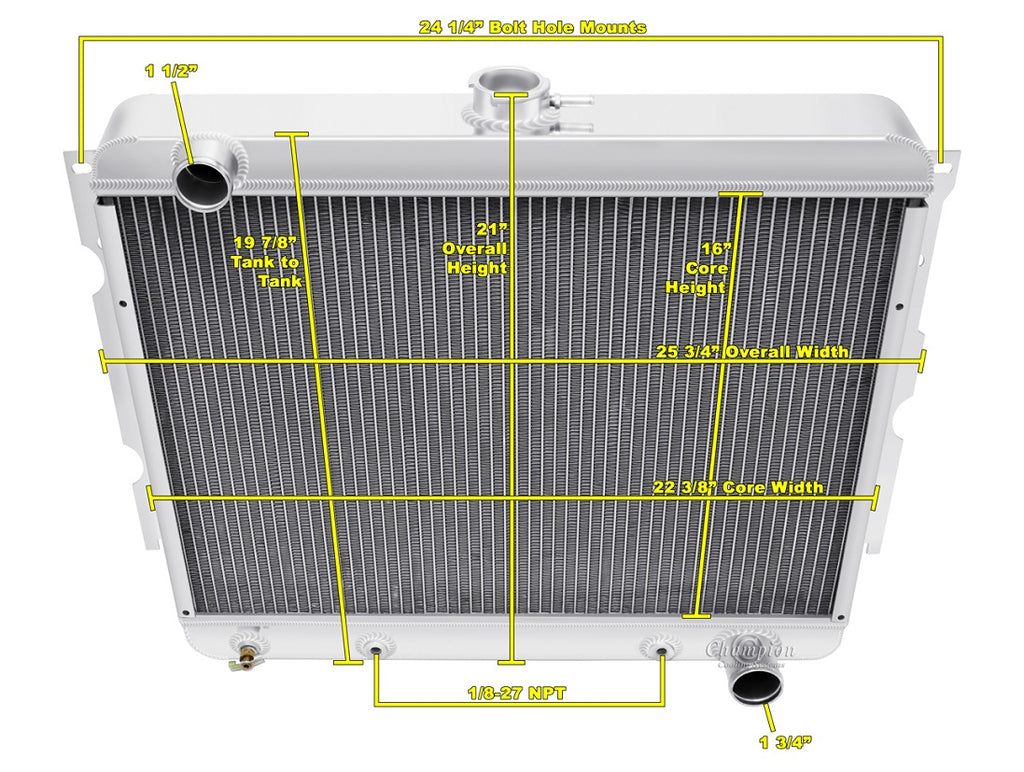

Radiator Dimensions:
Total: 20" (21" with cap) x 25.75" (with brackets)
Core: 16" tall x 22.38" wide x 2.5" thick
Inlet: 1.5" driver side of center
Outlet: 1.75" passenger
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5"
Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/8- 27NPT)
