CC2374B 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp

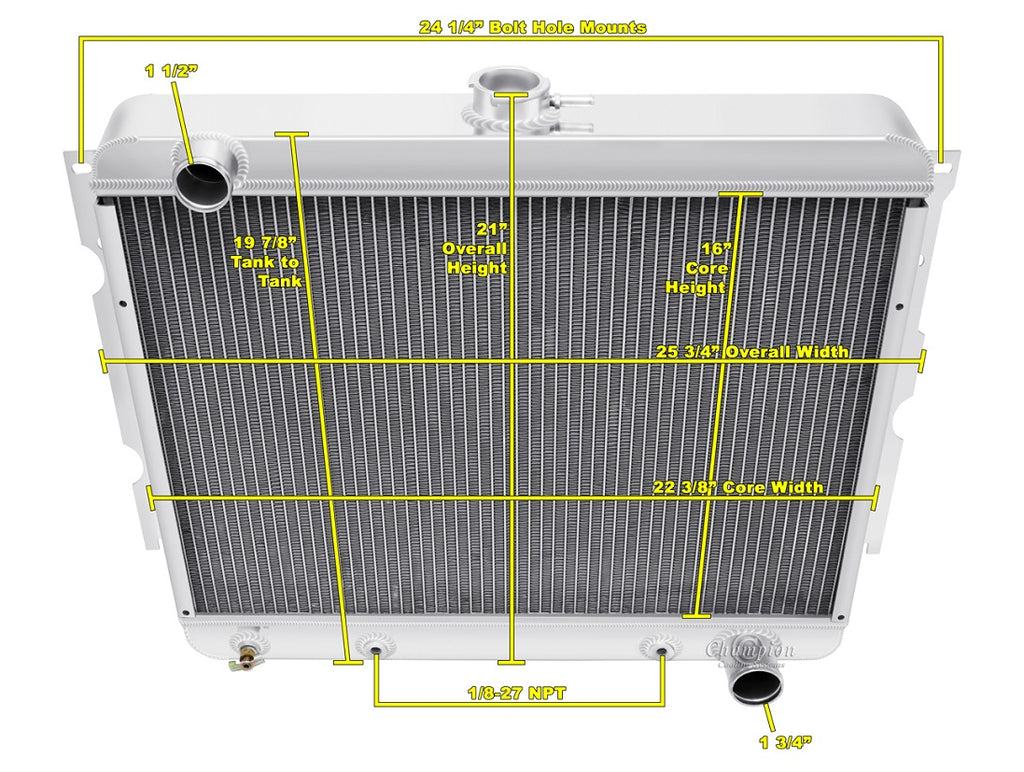

Radiator Dimensions:
Total: 20" tall (21" with cap) x 25.75" wide (with brackets)
Core: 15.88" tall x 22.38" wide x 2.5" thick
Inlet: 1.5" driver side
Outlet: 1.75" Pass
Tanks: 2.75" thick
Tubes: 0.75" thick

Bracket Mounted
(No OEM Shroud Support)

Radiator Cap included
Transmission Cooler included (1/8- 27NPT)
Custom Aluminum Shroud available (sold separately)

Note: This radiator is shorter than OEM
(To fit Multiple Mopar cars)

Recommended electric fans:
Two 10" fans recommended for this core size (sold separately)
