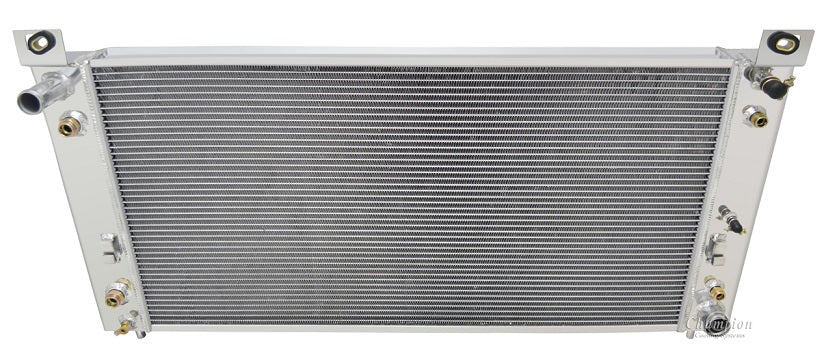

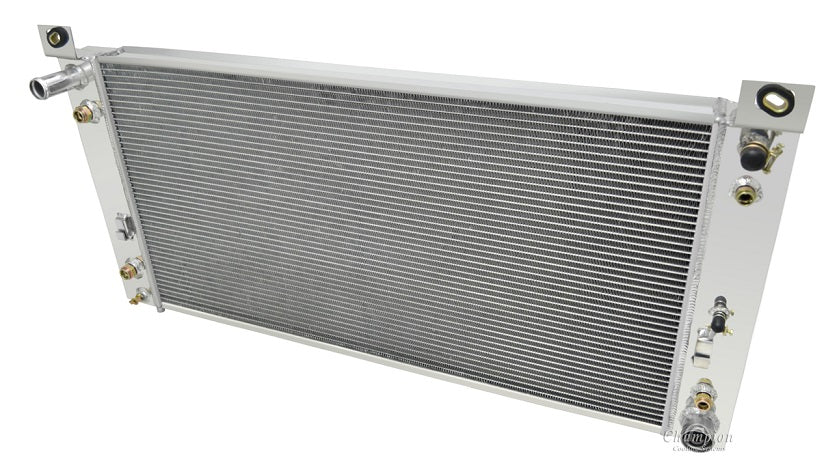

CC2370 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 800hp

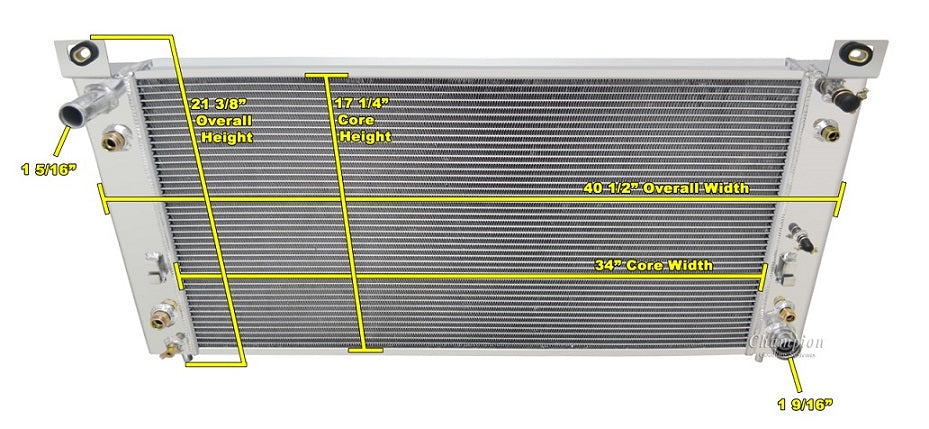

Radiator Dimensions:
Total: 21.38" tall x 40.5" wide
Core: 17.25" tall x 34" wide x 2.25" thick
Inlet: 1.31" driver side
Outlet: 1.55" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Pin / Bracket Mounted

Transmission Cooler included
(5/8"-18 with quick disconnect adapter)

Engine oil Cooler included
(M20 x 1.5 w/ quick disconnect adapter)

When using electric fans (sold separately):
Two 14" Electric fans or two 16" electric fans recommended for this core size

Custom shroud for electric fan(s) available upon request:
