CC2338 3 Row

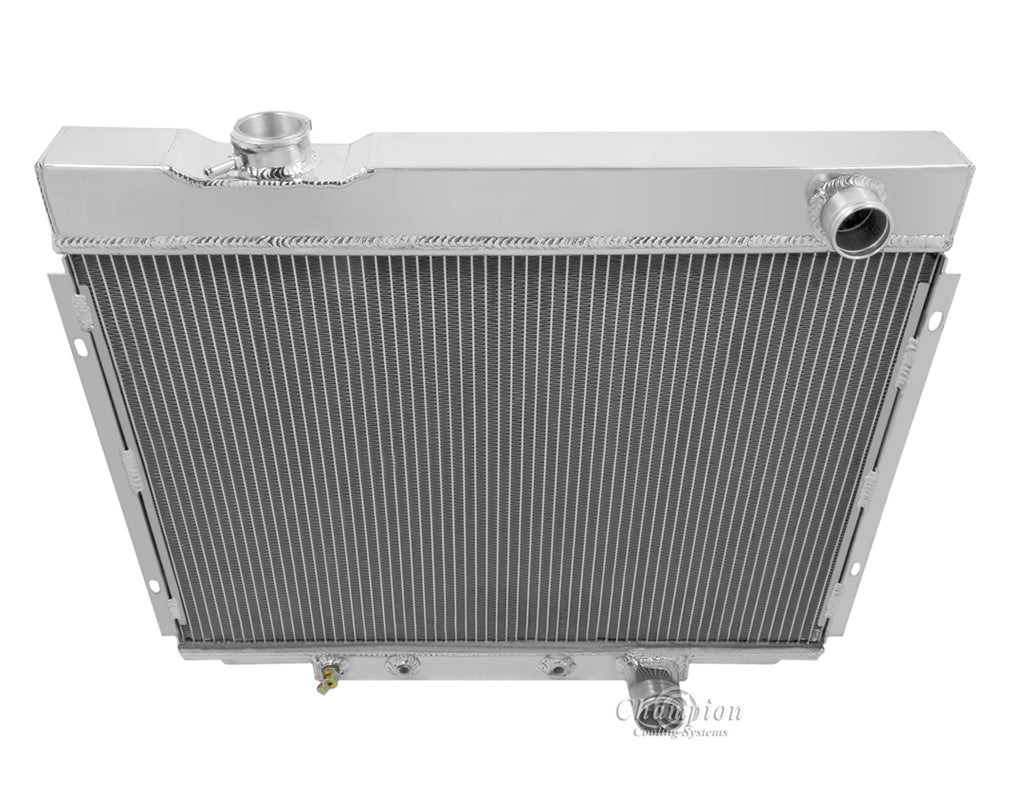

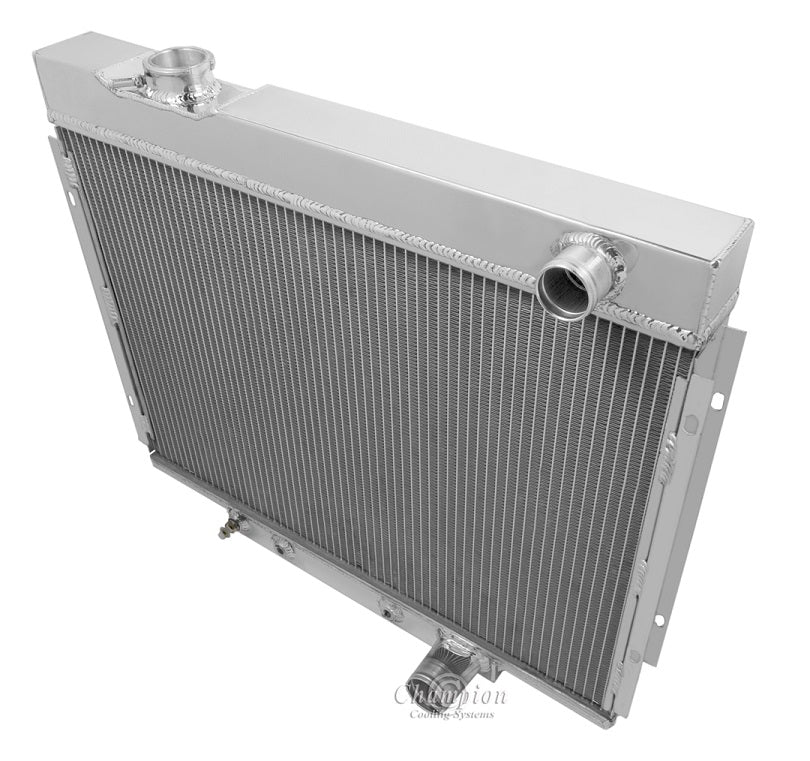

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

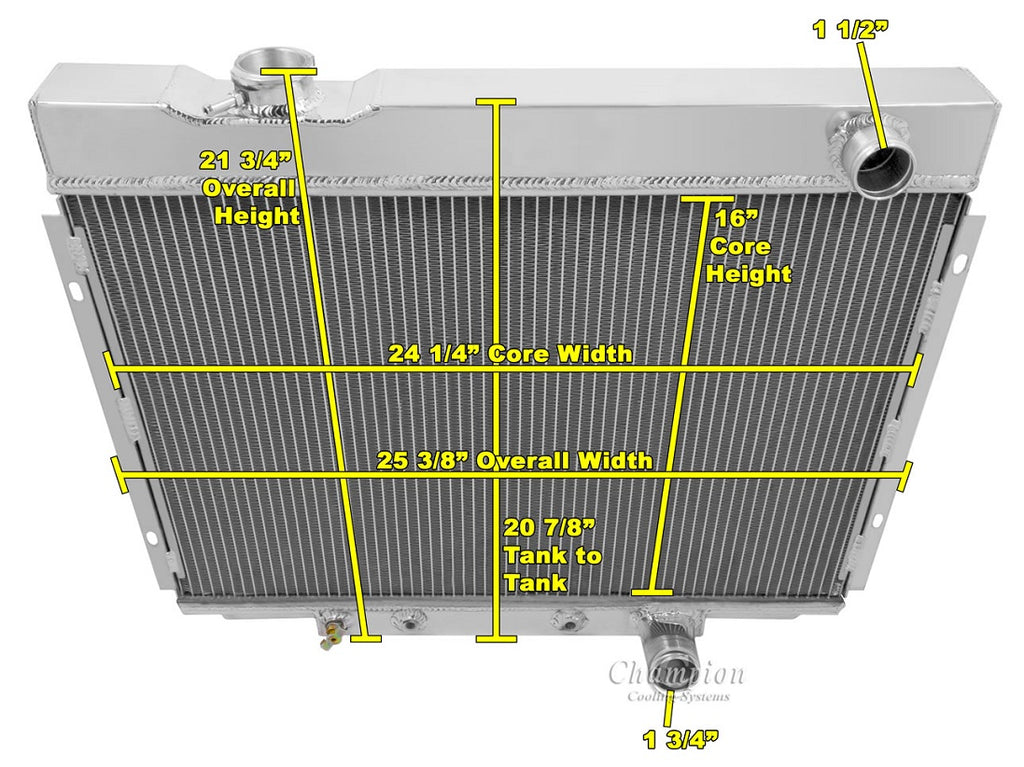

Radiator Dimensions:
Total: 21.75" tall (with cap)x 25.38" wide (with brackets) x 2.5" thick
Core: 16" tall x 24.25" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8-27 NPT)
