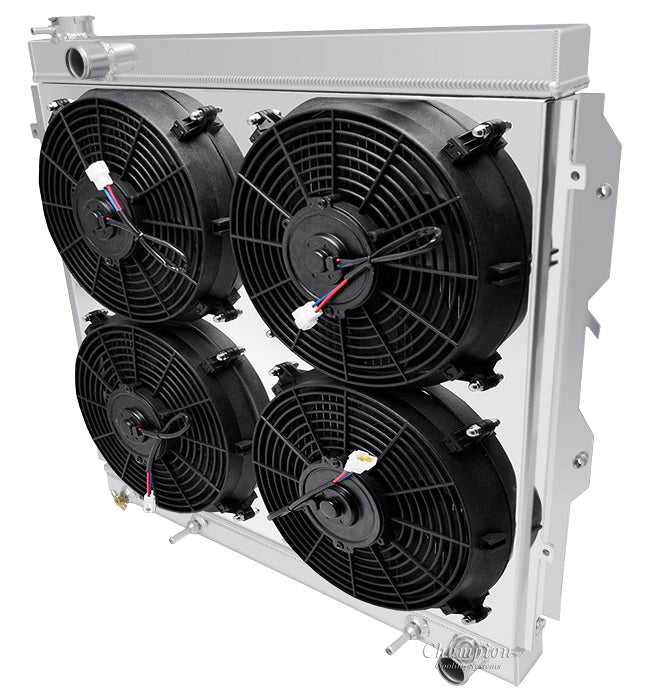

CC2321-2321SF10 + (4) SPAL-0435 3 Row Combo

Champion All Aluminum Radiator PLUS

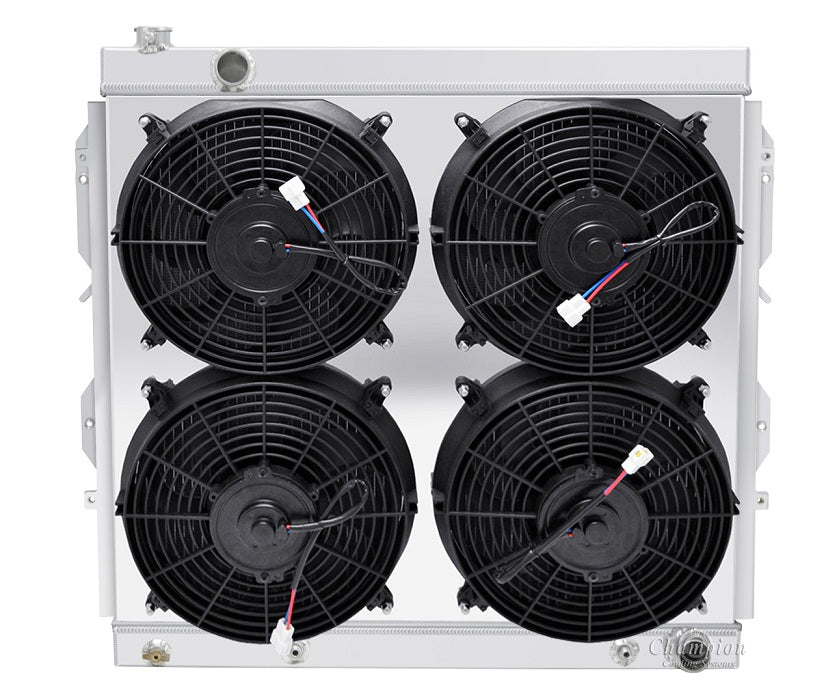

Aluminum Shroud & (4) SPAL-0435 10" Fans
3-Row Core | Cools up to 600hp

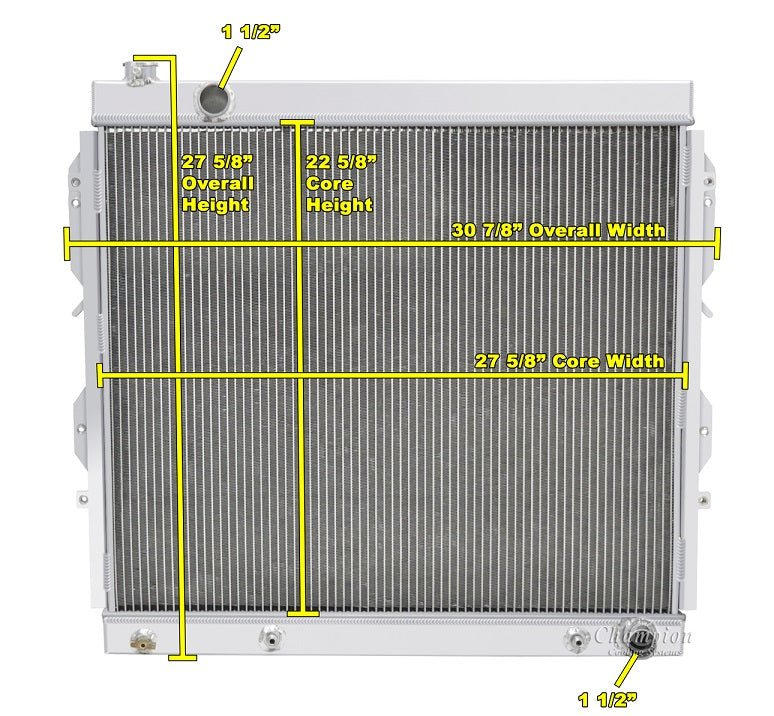

Radiator Dimensions:
Total: 27.5" tall (with cap)x 30.83" wide (with brackets) x 2.25" thick
Core: 22.63" tall x 27.63" wide x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator cap included
Transmission Cooler included (M14 x 1)
