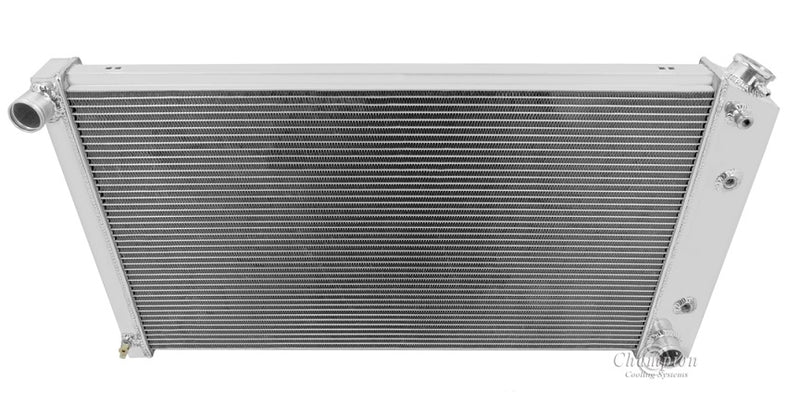

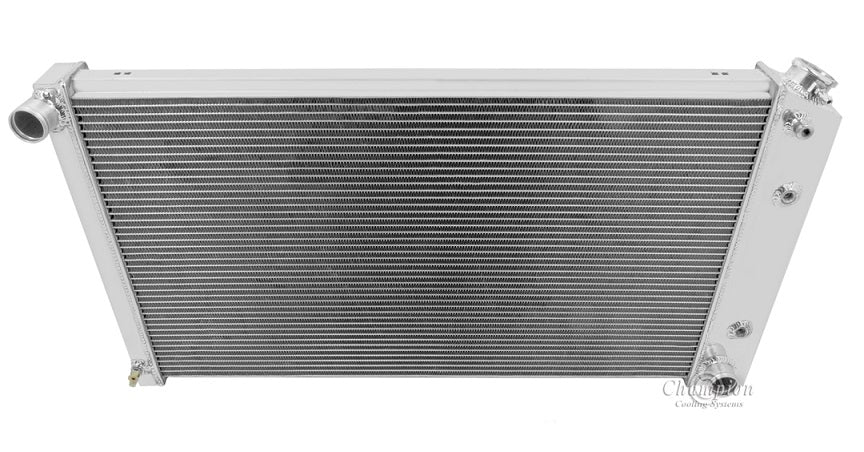

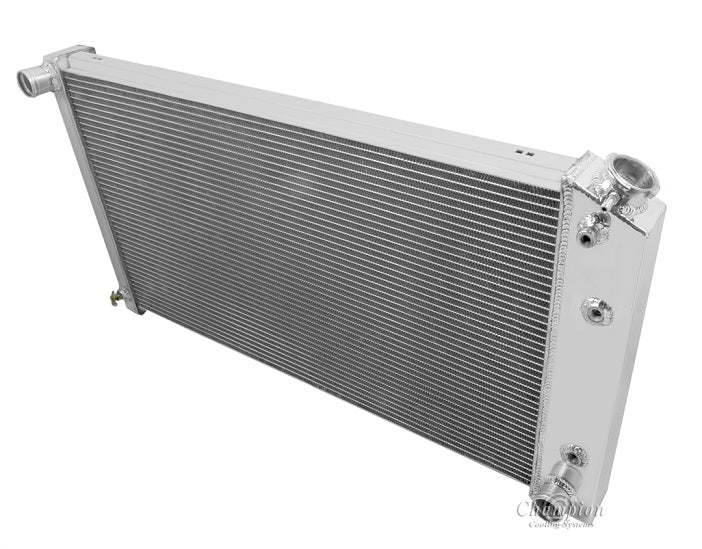

CC232 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 900hp
Note: This version is without an engine
oil cooler, only a transmission cooler

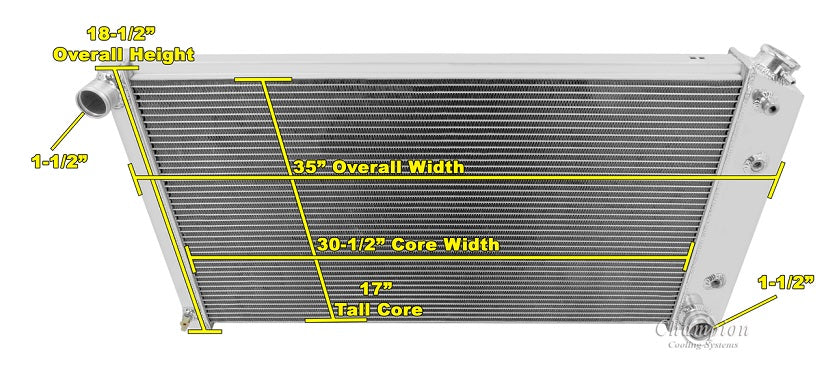

Radiator Dimensions:
Total: 18.5" tall (19" with cap) x 35.25" wide
Core: 17" tall x 30.5" wide x 2" thick x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Heater hose connection included

When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)
