CC2284-2284FS16 3 Row Combo

Champion All Aluminum Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" Fan
Verify clearance for electric fan
Total thickness: 6.5" to fan motor
3-Row Core | Cools up to 600hp

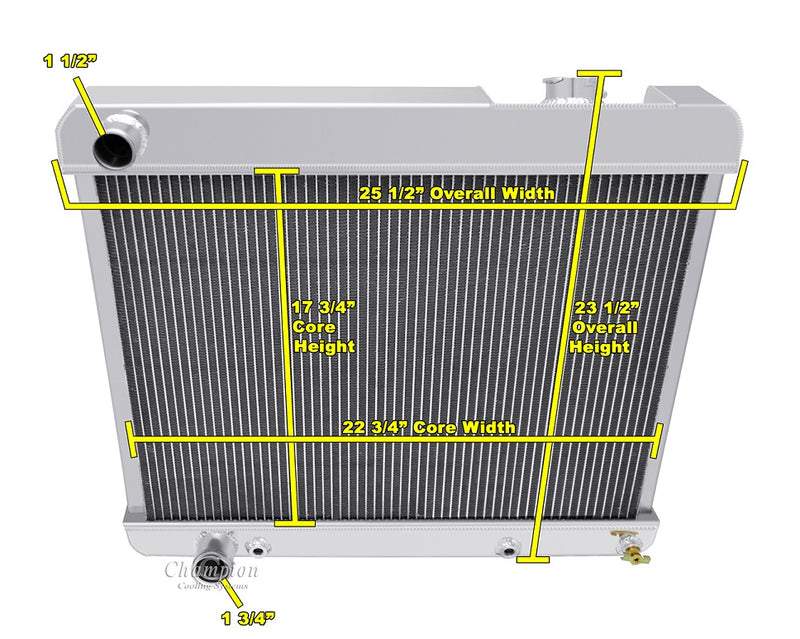

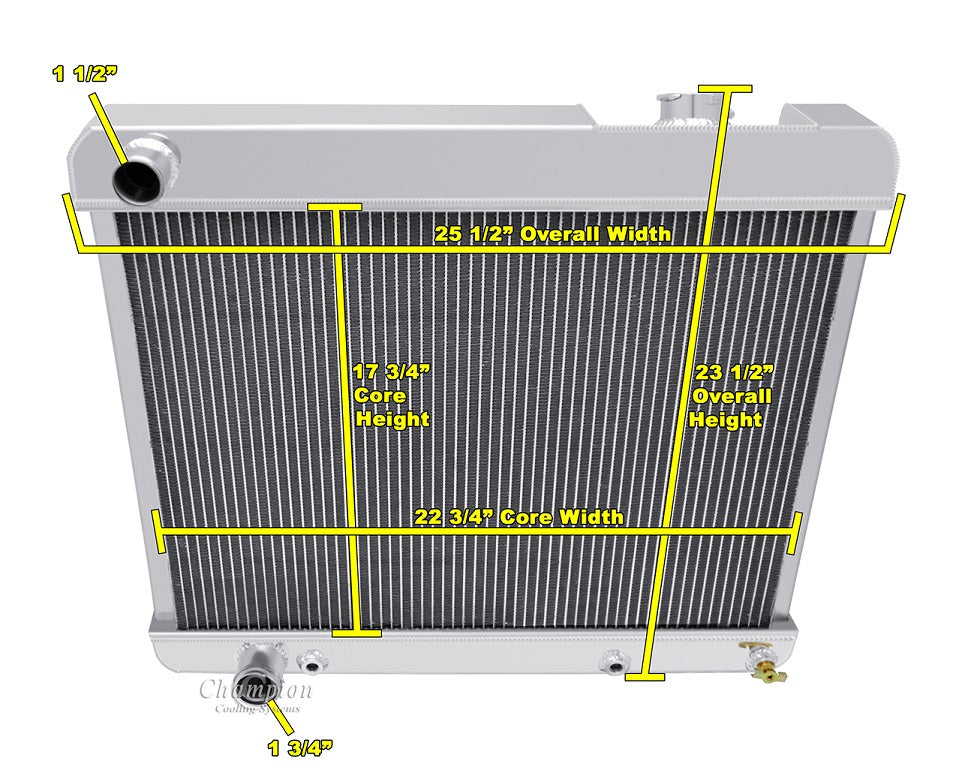

Radiator Dimensions:
Total: 22.5" tall (23.5" with cap) x 25.25" wide
Core: 17.8" tall x 22.75" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" driver Side
Tanks: (top) 2.75" thick, (bottom) 2.38" thick
Tubes: 0.63" thick
Total Thickness: 6"

Saddle Mounted

Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
13 lb. Radiator Cap included
