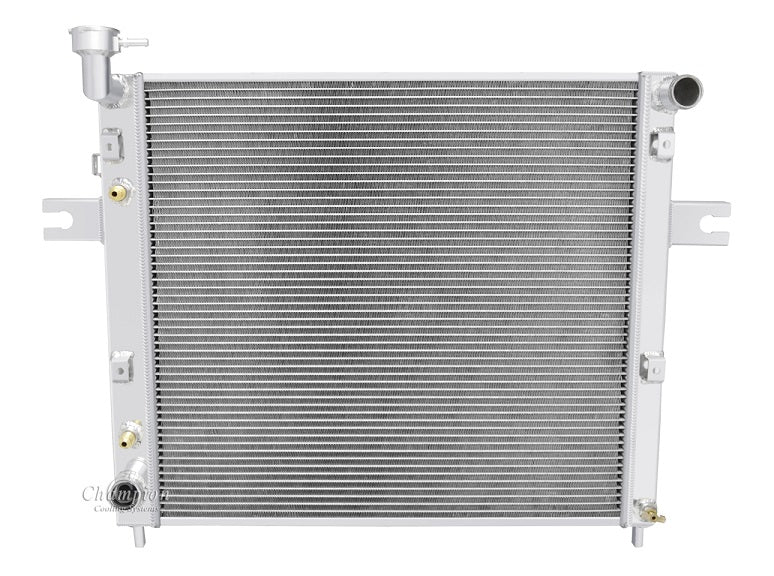

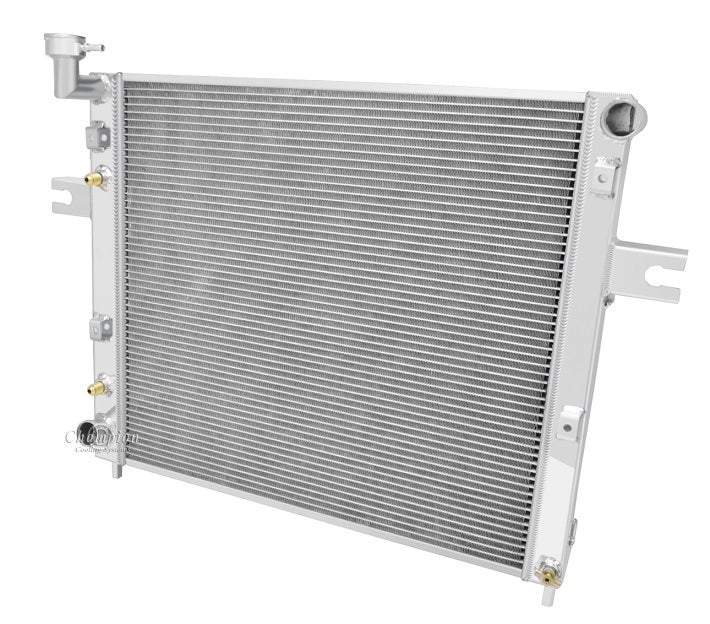

CC2262 3-Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 600hp
Note: Make sure you have room for a thicker radiator
some steering boxes are larger and this radiator will not fit.

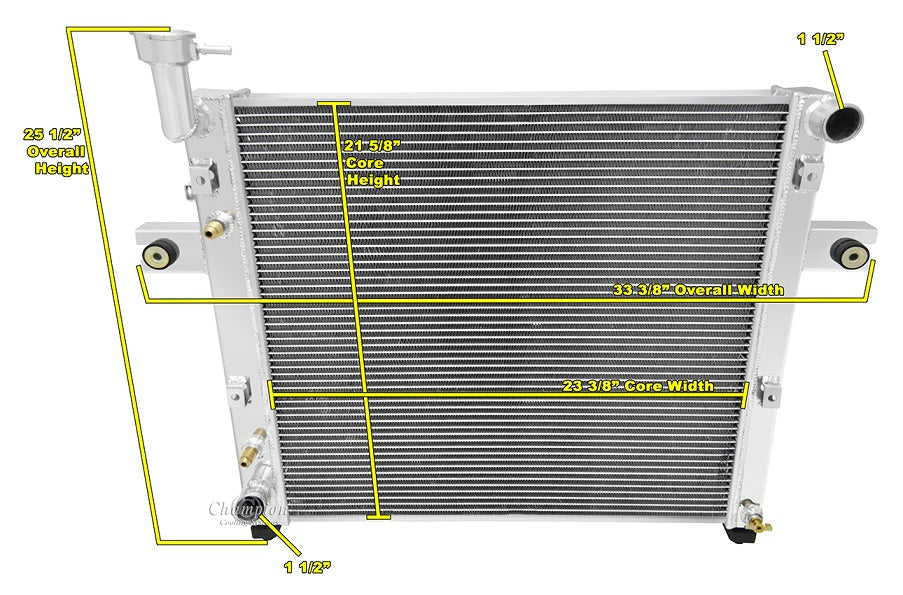

Radiator Dimensions:
Total: 25.5" tall (with cap) x 33.38" wide (including brackets)
Core: 21.55" tall x 23.38" wide x 2.25" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket / Pin Mounted

16 lb. Radiator Cap included
Transmission Cooler included ( 1/4"-18 NPT)

When using electric fans:
16" Electric fans recommended for this core size (sold separately)

Shipping is higher for this oversized item
