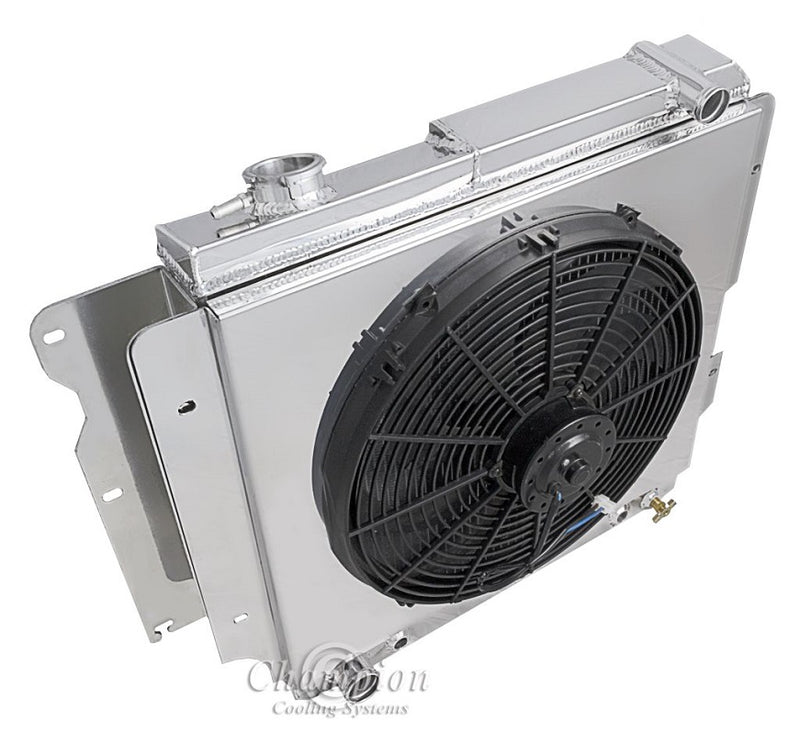

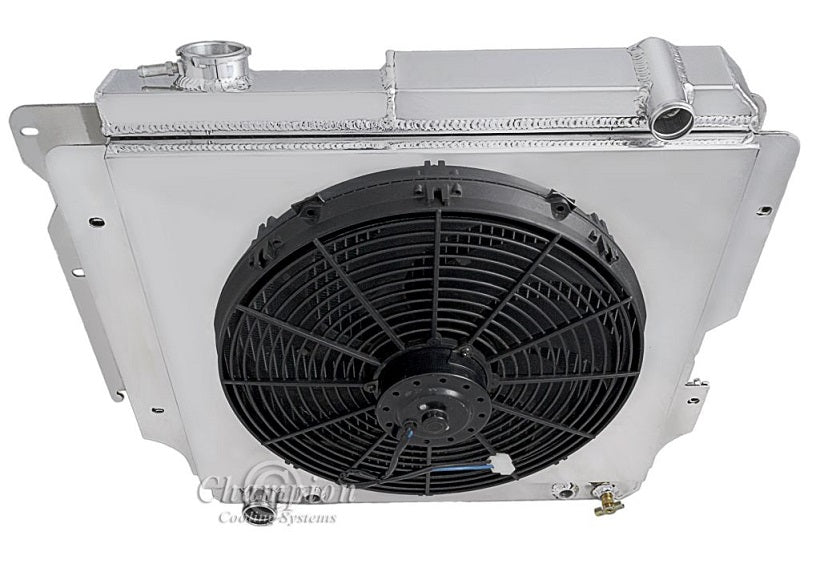

CC2101-2101FS16SP 3 Row Combo

Champion All Aluminum Radiator Plus
Shroud and 16" SPAL-1516 Medium Profile Fan
The SPAL fan solves the thickness issues of the Pro Series fan
Please confirm your available room to the Total Thickness below
3-Row Core | Cools up to 600hp

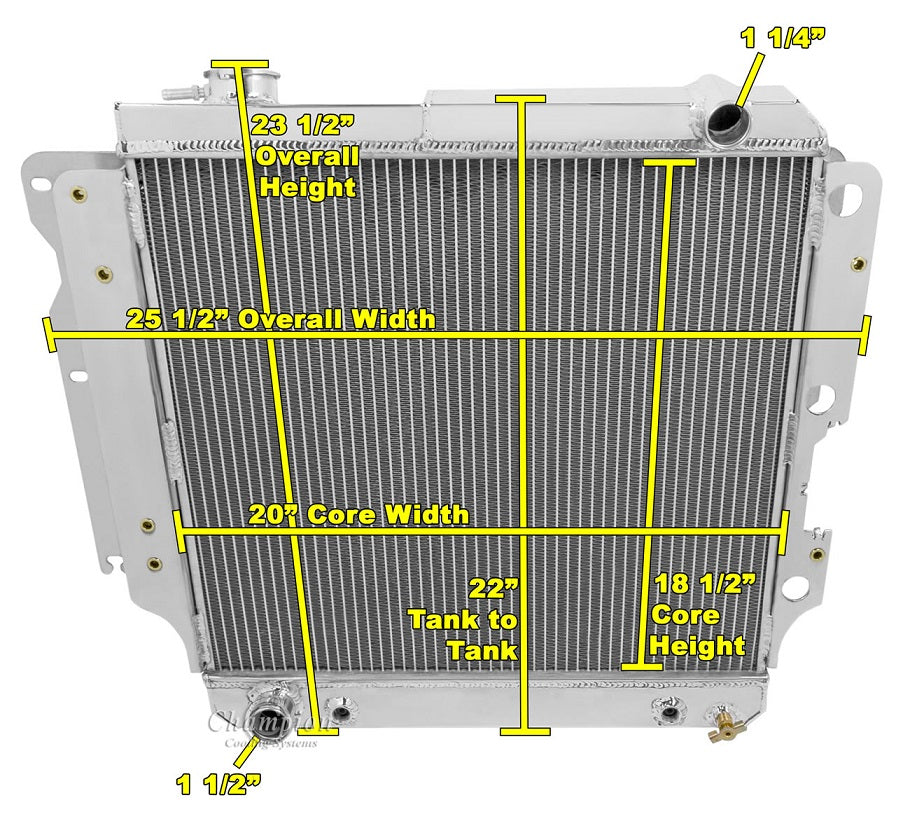

Radiator Dimensions:
Total: 23.5" tall x 25.5" wide (including brackets)
Core: 18.5" tall x 20" wide x 2" thick
Inlet: 1.25" passenger
Outlet: 1.5” driver
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.5" to back of fan

Bracket Mounted
Rivit Nuts in shroud bracket: size M6

Radiator Cap Included
Transmission Cooler Included (M16-1.5)
