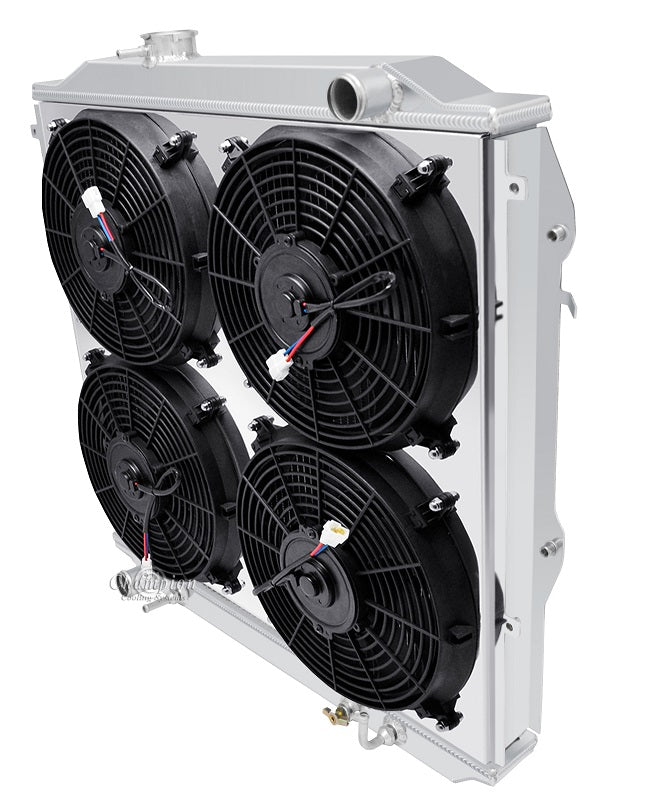

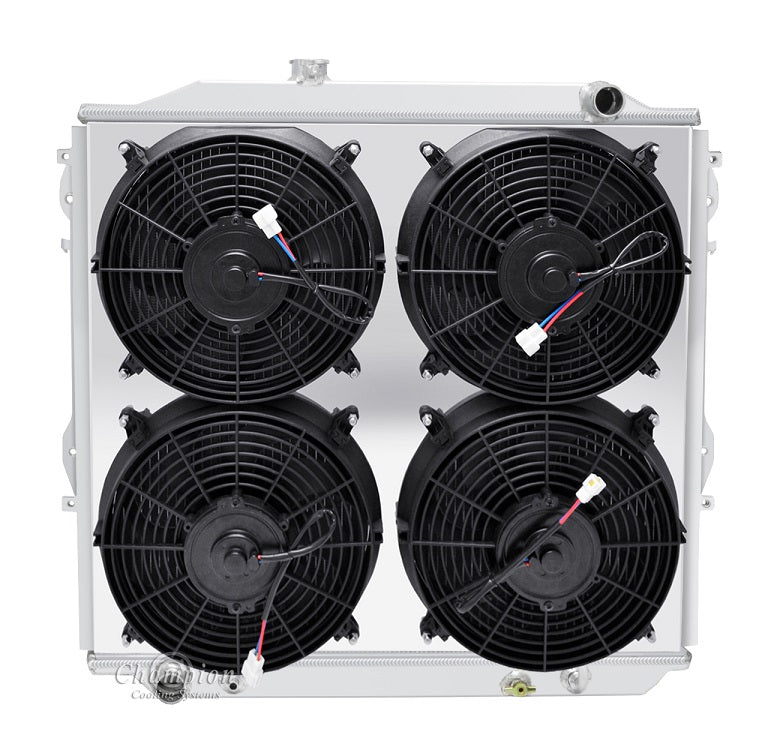

CC1998-1998FS10x4CSP 3 Row Combo

Champion All Aluminum Radiator PLUS
Aluminum Shroud & (4) SPAL-0435 10" Fans
3-Row Core | Cools up to 550hp

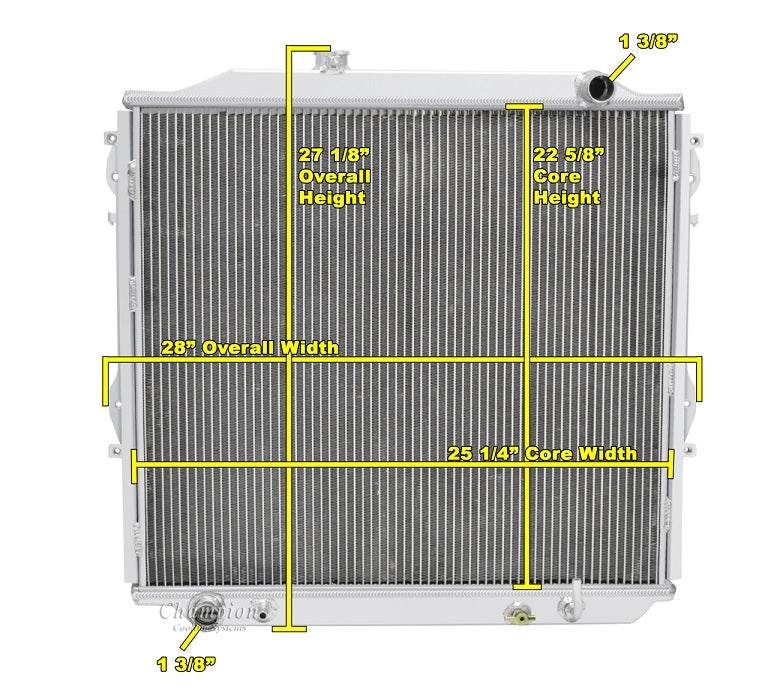

Radiator Dimensions:
Total: 27.13 x 28 wide (including brackets)
Core: 22.63" tall x 25.25" wide x 2" thick
Inlet: 1.38" passenger
Outlet: 1.38” driver
Tanks: 2.5" thick
Tubes: 0.68" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included

When using electric fans (sold separately):
One 16" Electric fan recommended for this core size
