CC1930CH 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 850hp

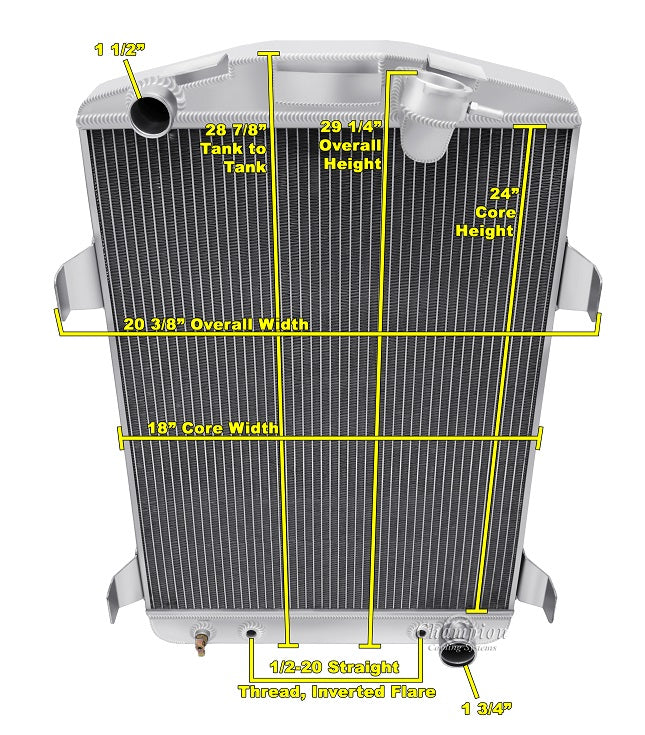

Radiator Dimensions:
Total: 20.38" wide (lower bracket) x 29.25" tall
Core: 18" wide x 24" tall x 2.25" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: 3" thick | 17.5" wide
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"-20 STRAIGHT THREAD)

When using electric fans:
One 16" fan recommended for this core size (sold separately)
