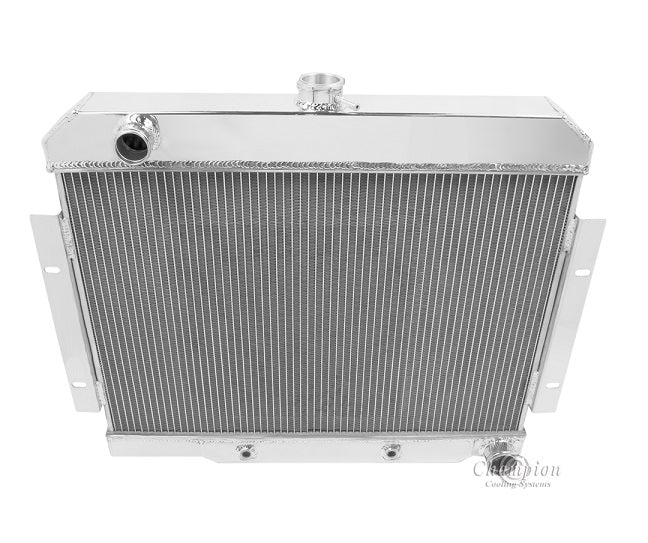

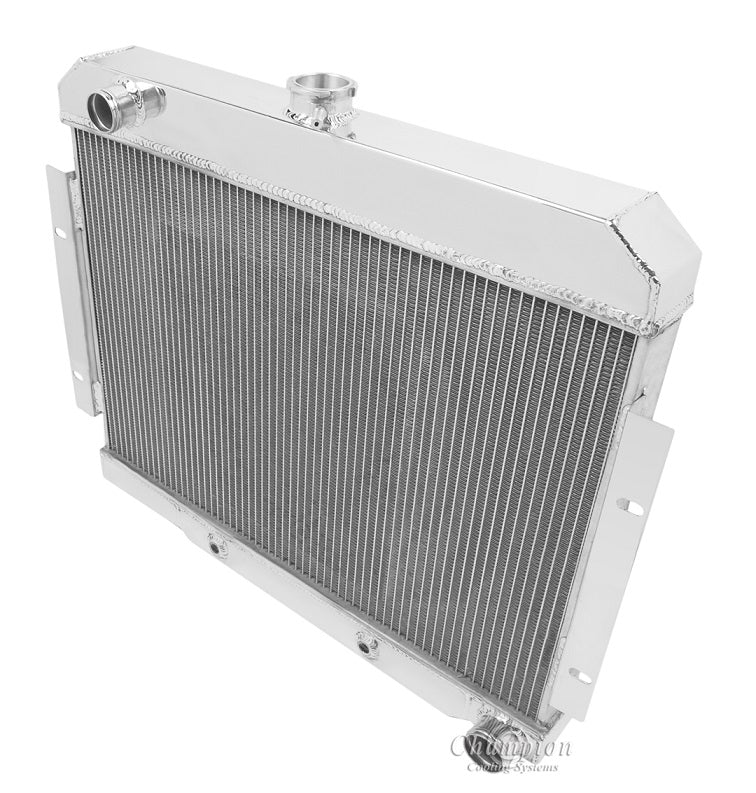

CC1919 3 Row

Champion All Aluminum Radiator
3-Row Core; (Chevy Conversions) | Cools up to 550hp

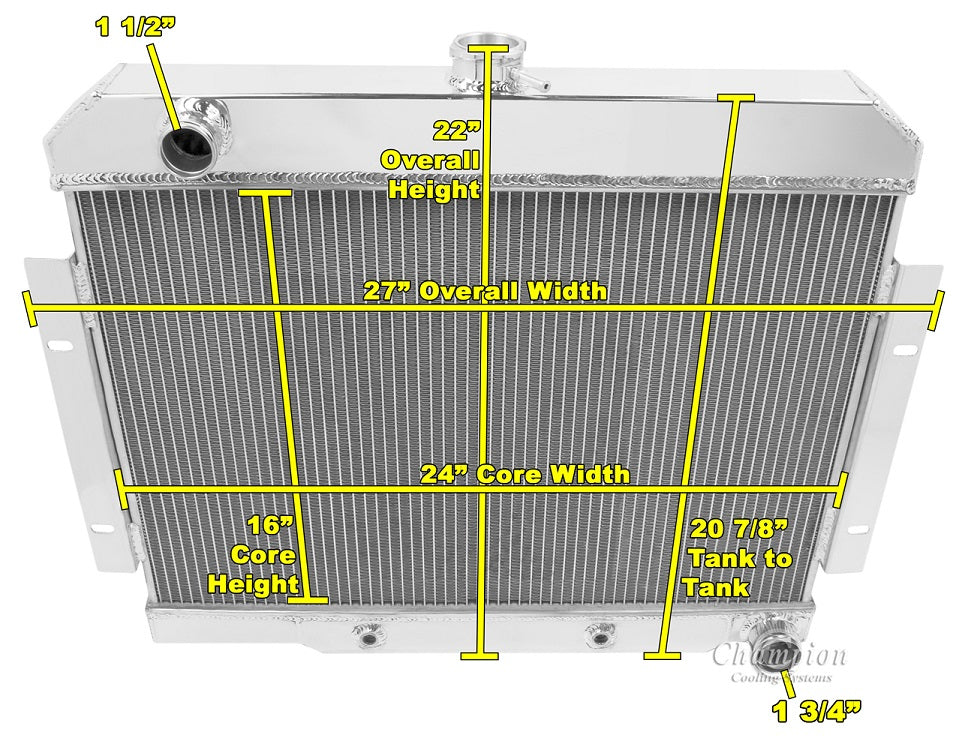

Radiator Dimensions:
Total: 22" tall x 27" wide (with brackets)
Core: 16” tall x 24" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler Included (1/2-20 Straight Thread, Inverted Flare)
Aluminum shroud available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
