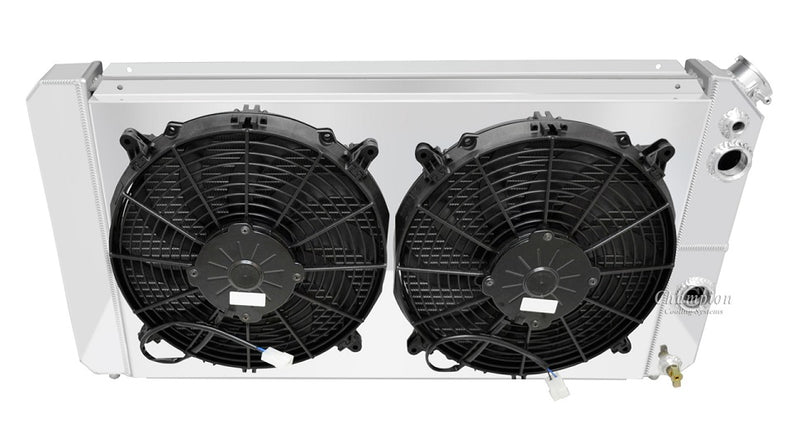

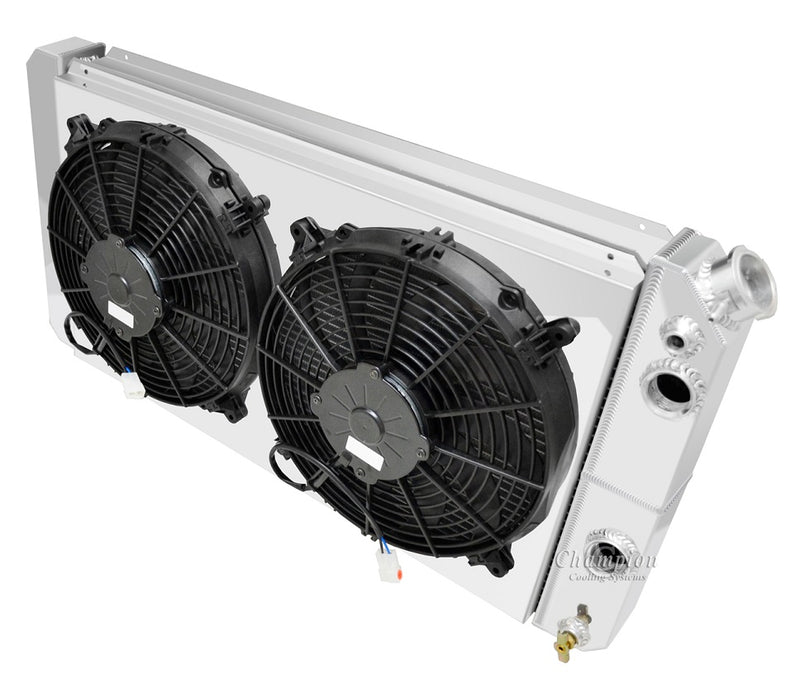

CC1826DP-1826FS12SP 3 Row Dual Pass

Champion All Aluminum Radiator
Dual Pass / LS Conversions
Includes Ledfoot Racing Aluminum Shroud
Plus 2-12" SPAL-1522 Fans and Shroud
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
Please confirm your available room to the Total Thickness below

3-Row Core | Cools up to 800hp
If you remove the lower pins this radiator is only 16.25" tall

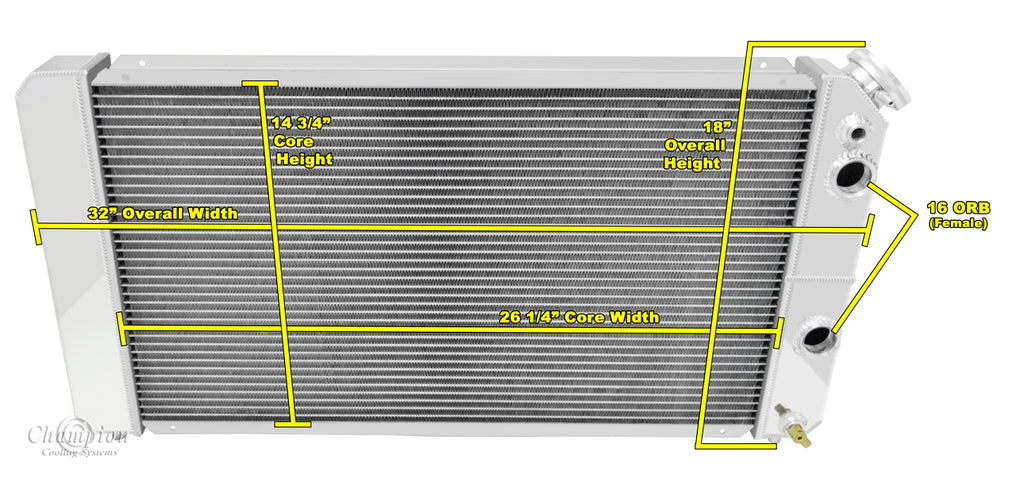

Radiator Dimensions:
Total: 16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: passenger side
Outlet: passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick
Total Thickness: 5.75" (4.75" between fan motors)

Pin Mounted

Radiator Cap Included
