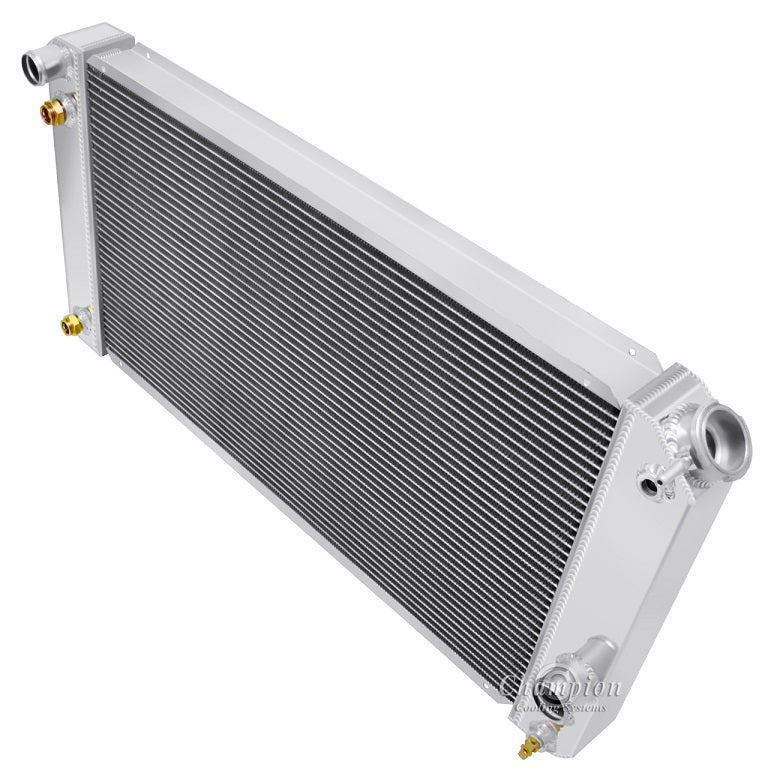

CC1826 3 Row

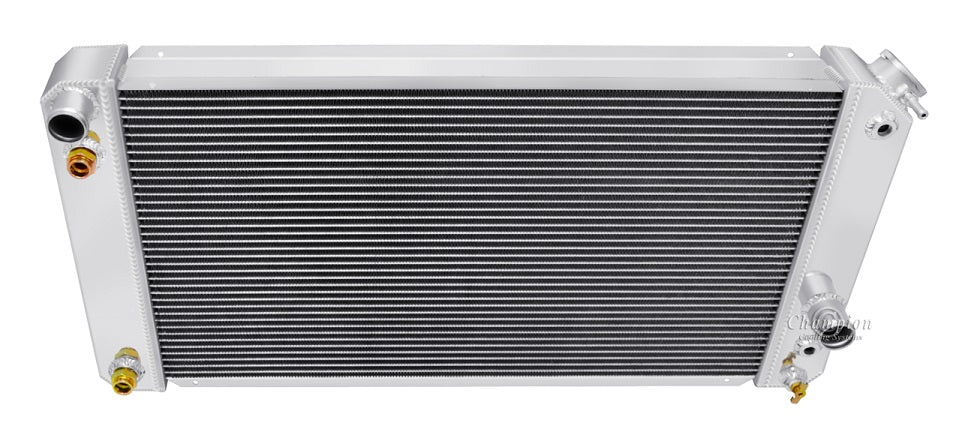

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
New Design is complete with Internal Engine Oil Cooler
If you remove the lower pins this radiator is only 16.25" tall
Does not fit 4 Cyl

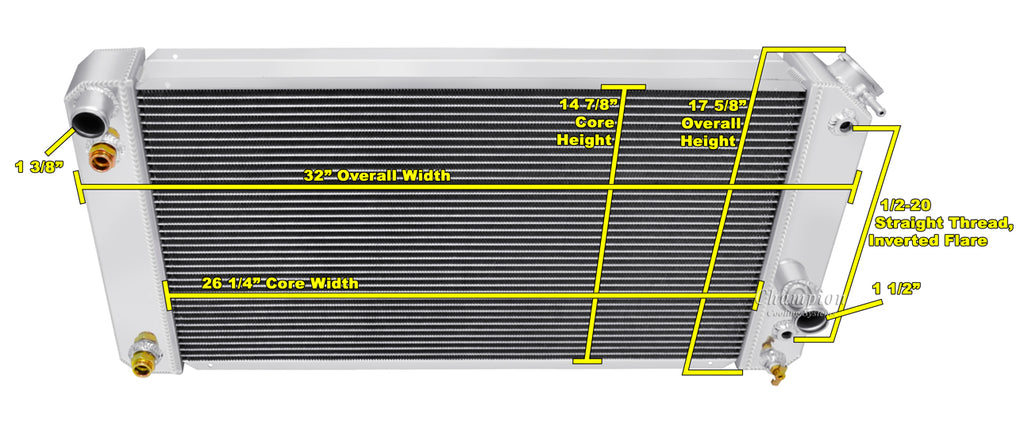

Radiator Dimensions:
Total: 16.25"(18" incl pins) tall x 32" wide
Core: 14.75" tall x 26.25" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.5" passenger side
Tanks: 2.63" thick
Tubes: 0.63" thick

Pin Mounted

Radiator Cap Included
Transmission Cooler Included (1/2"-20 Straight Thread)
Engine Oil Cooler Included (Metric 20-1.5)

Recommended electric fans (sold separately):
Two 12" Electric Fans
