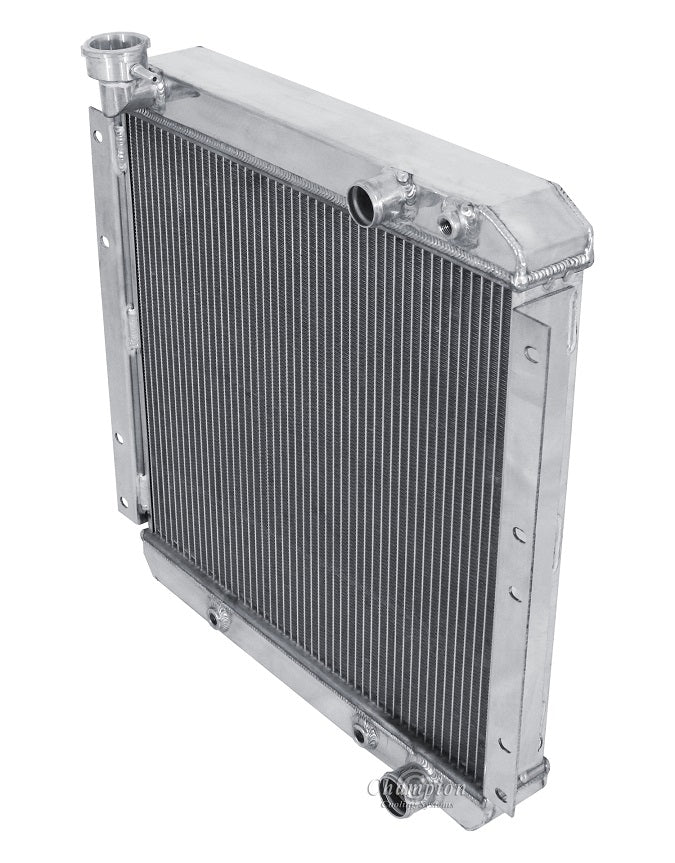

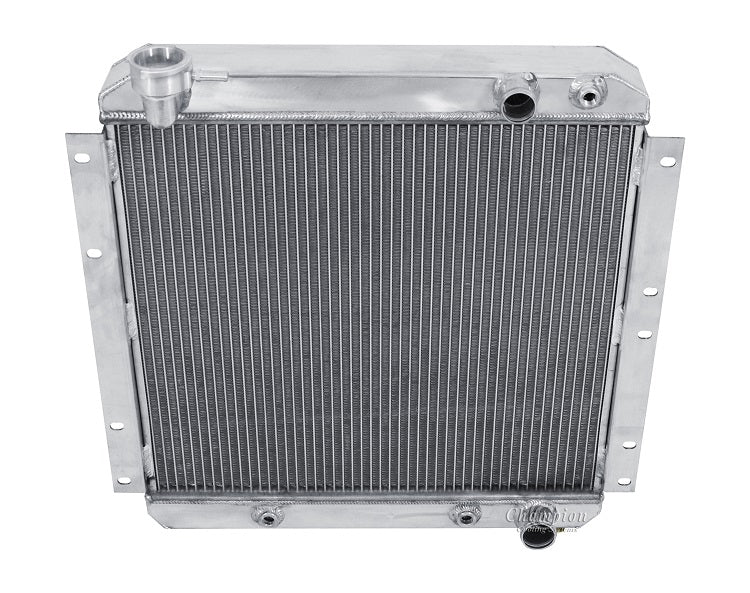

CC180-LS 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 500hp
LS Conversions

Radiator Dimensions:
Total: 22" tall x 22.13" wide (with brackets)
Core: 16.5" tall x 19.25" wide x 2" thick
Inlet: 1.25" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

Includes Steam Port with Barbed Fitting and Plug
16 lb. Radiator Cap included
Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)
Aluminum Fan Shroud is also available (sold separately)

Recommended Fans:
16" Electric Cooling Fan (sold separately)
