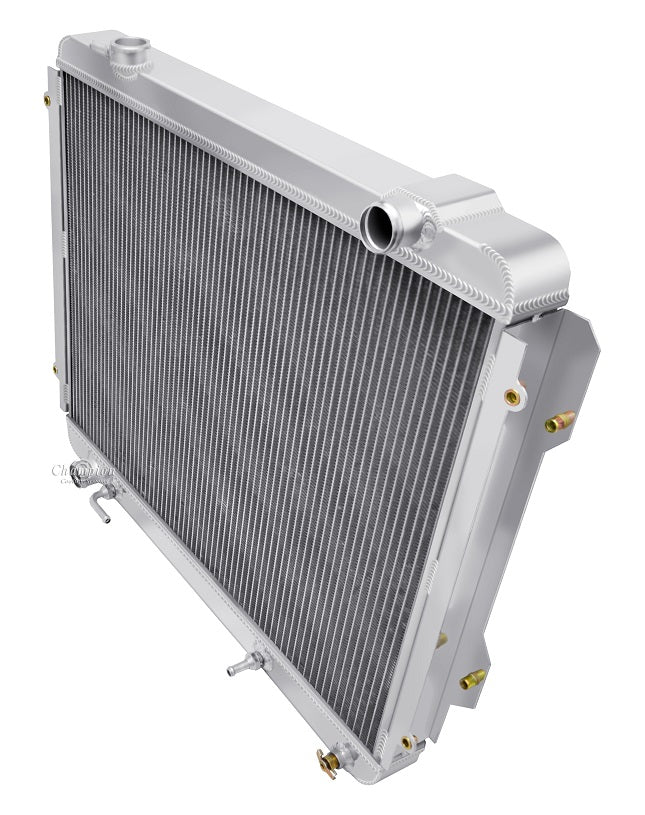

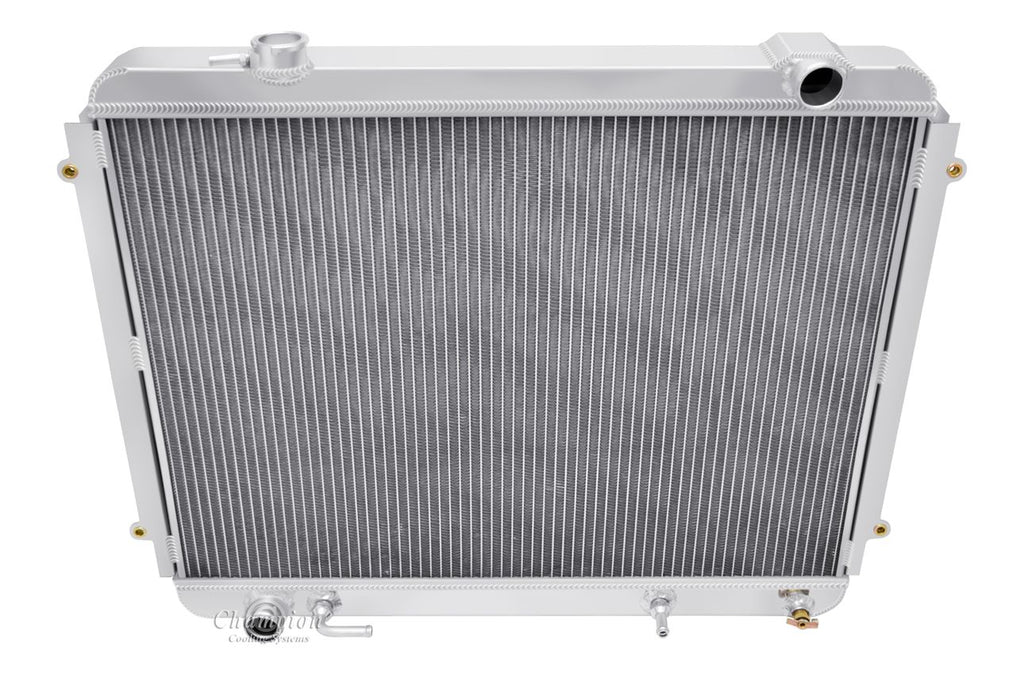

CC1778 3 Row (2WD Only)

Champion All Aluminum Radiator
3-Row Core | Cools up to 550hp
(2WD ONLY)
Please verify height:
Prerunner applications sometimes used the
4WD radiator which is 2" taller. The extra height
is all at the bottom of the radiator.

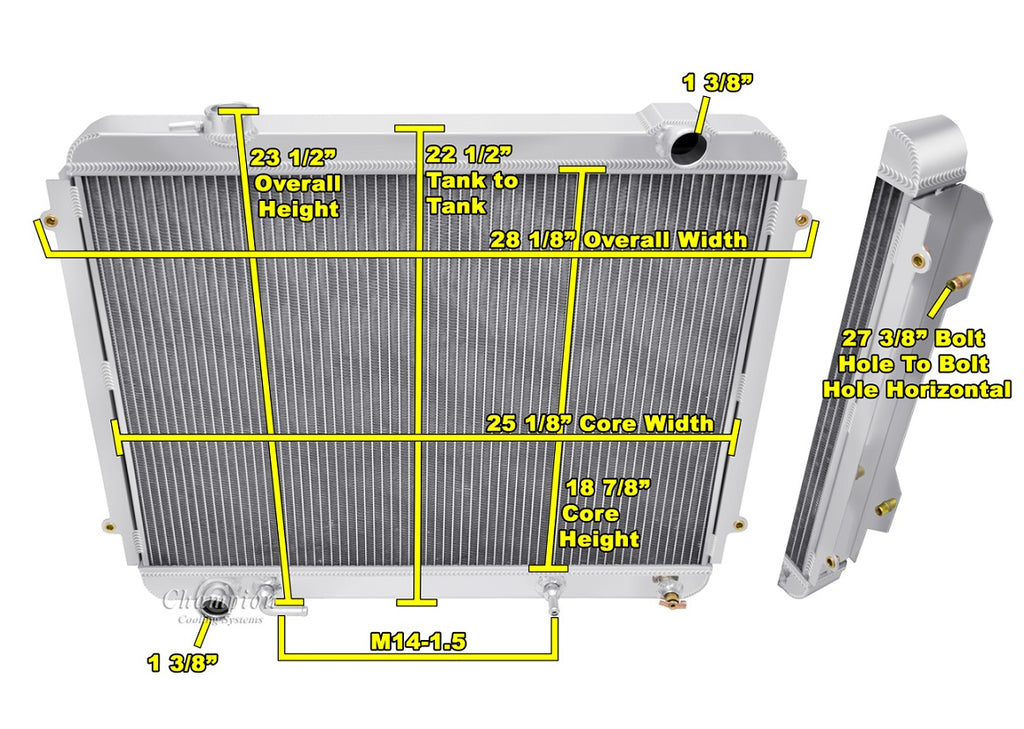

Radiator Dimensions:
Total: 23.5 x 28.13 wide (including brackets)
Core:18.875" tall x 25.13" wide x 2" thick
Inlet: 1.38" passenger
Outlet: 1.38” driver
Tanks: 2.5" thick
Tubes: 0.68" thick

Bracket Mounted

Radiator Cap Included
Transmission Cooler (M14-1.5)

When using electric fans (sold separately):
One 16" Electric fan recommended for this core size
