CC1755-1755FS14C 3 Row Combo 4WD

Champion All Aluminum Radiator PLUS

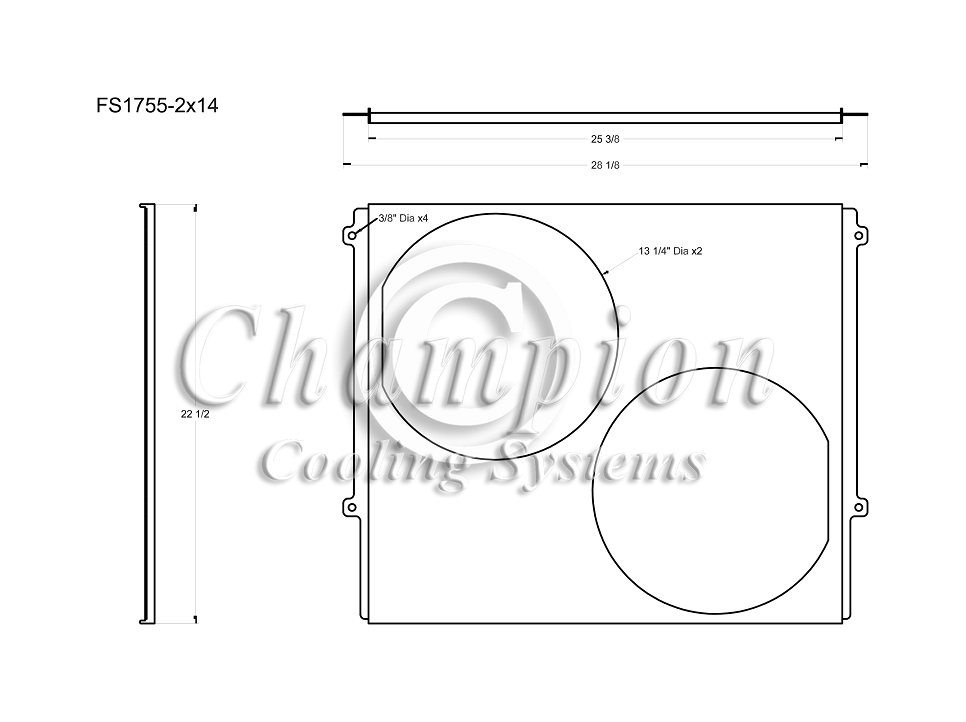

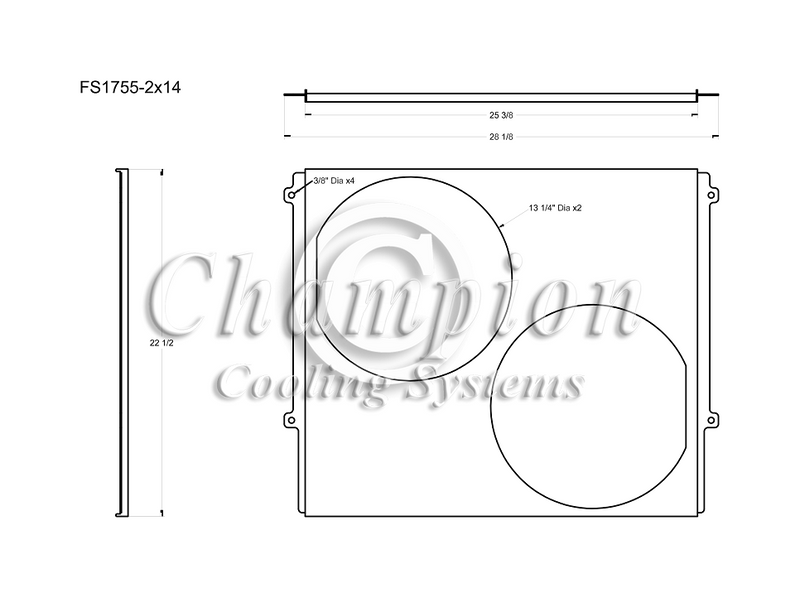

Aluminum Shroud and (2) 14" Pro-Series Fans
3-Row Core | Cools up to 550hp
(4WD ONLY)

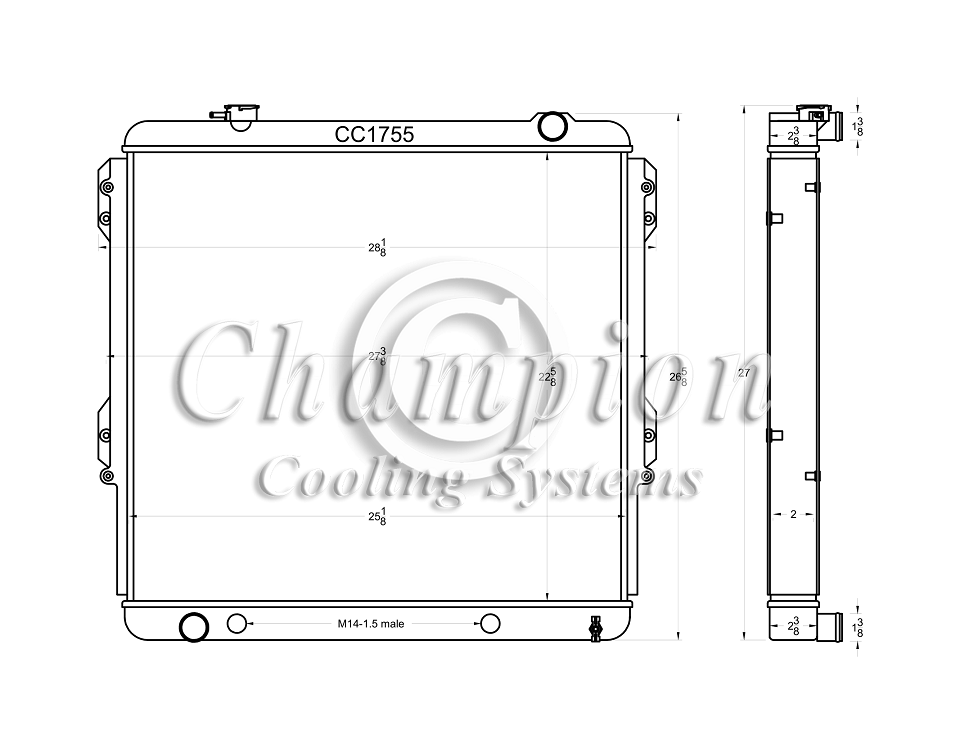

Radiator Dimensions:
Total: 27" tall x 28.13" wide (including brackets)
Core: 22.63" tall x 25.13" wide x 2" thick
Inlet: 1.38" passenger
Outlet: 1.38” driver
Tanks: 2.38" thick
Tubes: 0.68" thick
Total Thickness: 6.75" back of motors, 5.5" Between motors

Bracket Mounted

Radiator Cap Included
Transmission Cooler (M14-1.5 Male)
