CC1716-1451FS14 3 Row for L6

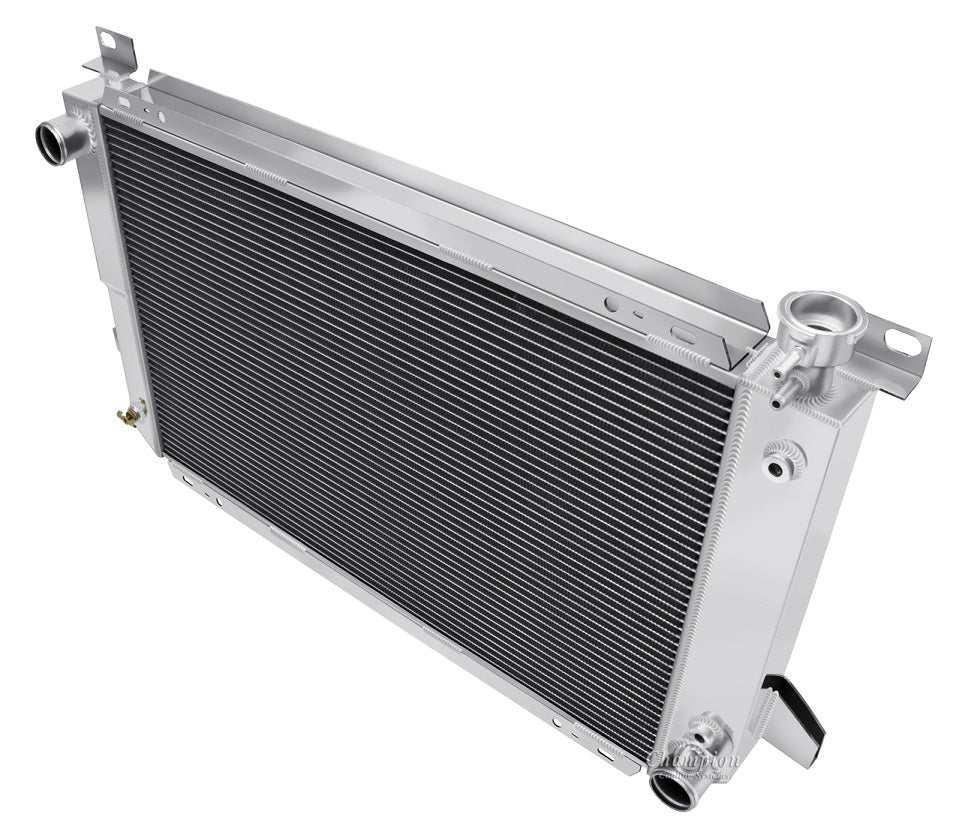

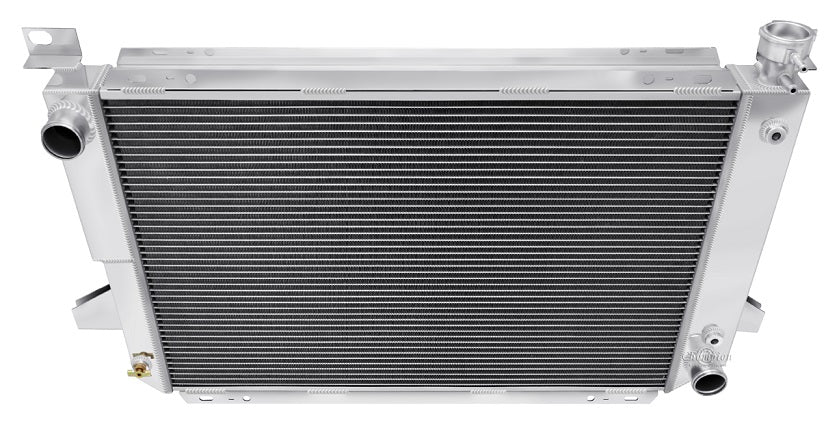

All Aluminum Champion Radiator PLUS

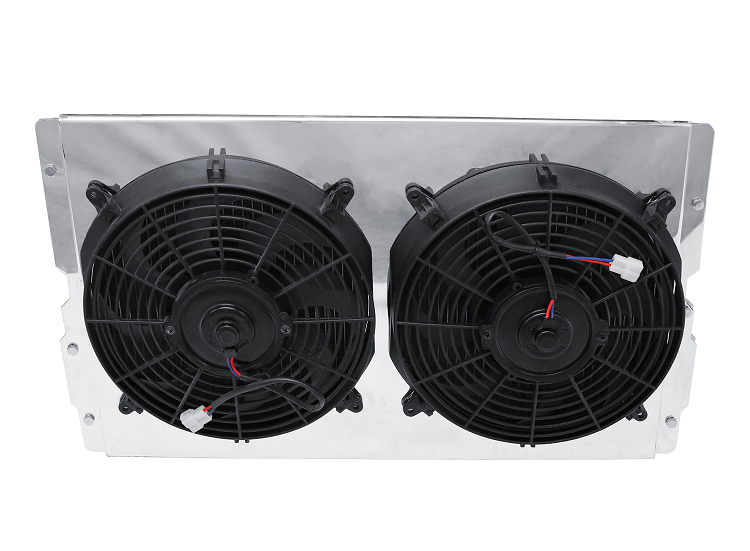

Aluminum Shroud and (2) 14" Pro-Series Fans
3-Row Core | Cools up to 750hp

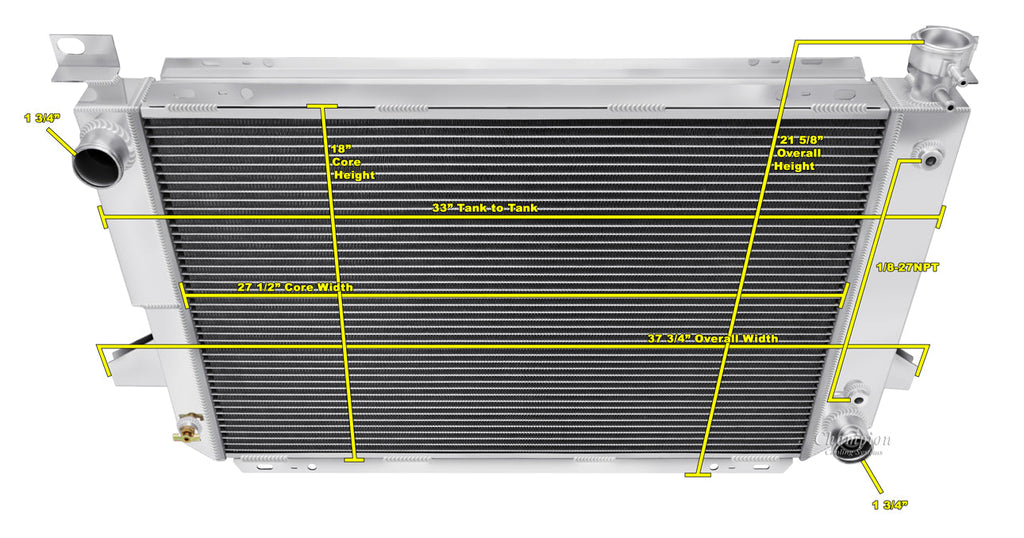

Radiator Dimensions:
Total: 22.25" tall (with cap) x 37.25" wide
Core: 18" tall x 28.13" wide x 2" thick
Inlet: 1.75" driver side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.63" thick

13 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Aluminum Fan Shroud is also available (sold separately)

Recommeded Fans:
Two 12" or 14" Electric fans recommended for this core size
