CC1696 3 Row

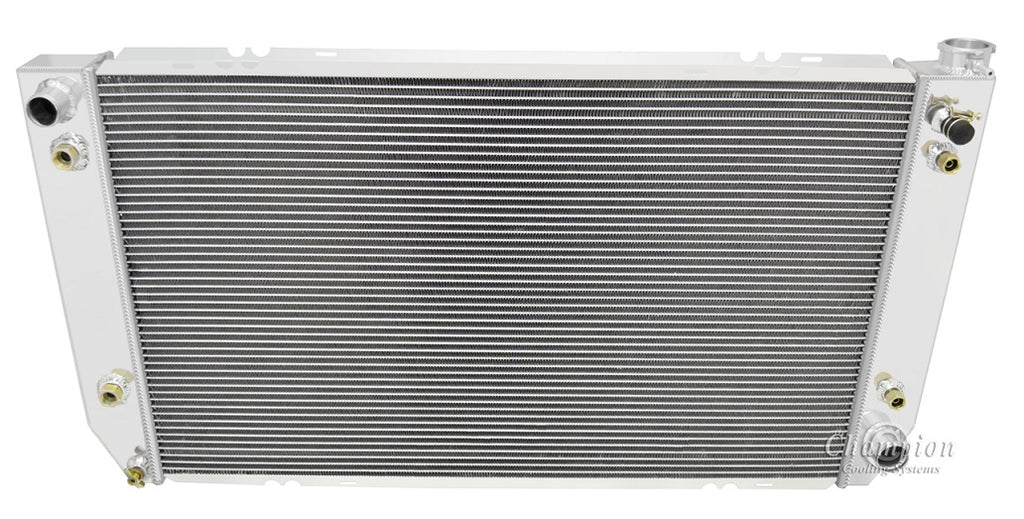

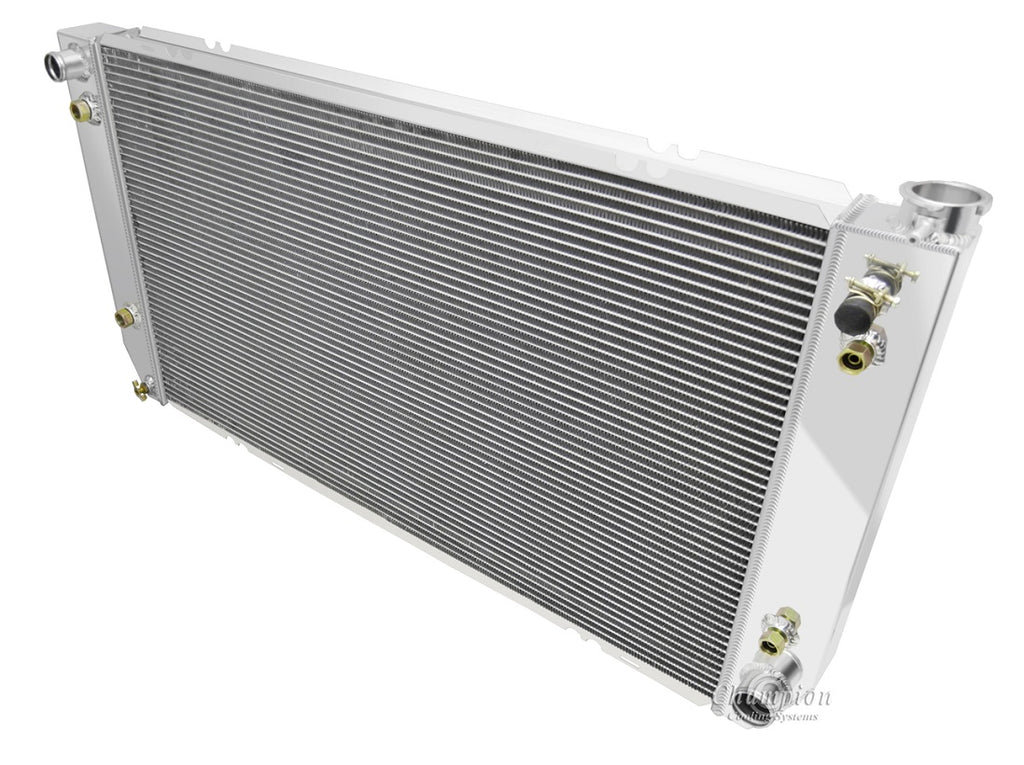

Champion All Aluminum Radiator
3-Row Core | Cools up to 800hp

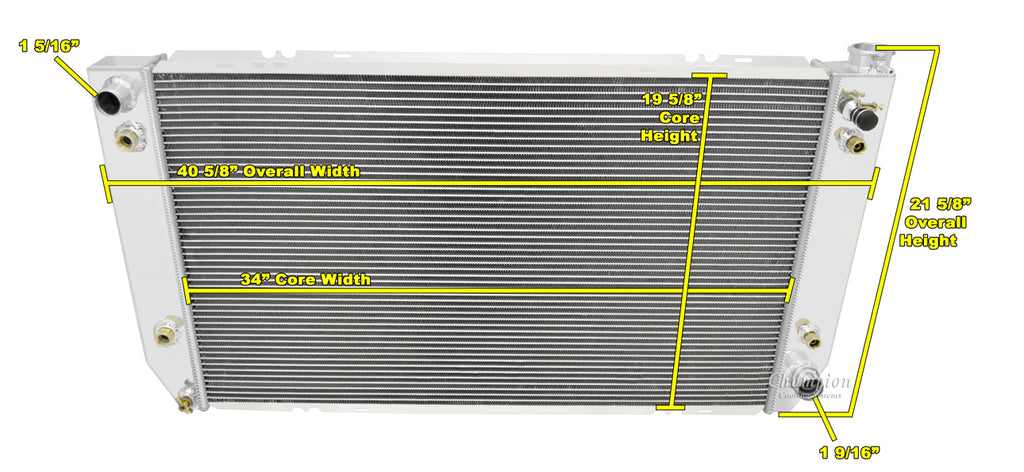

Radiator Dimensions:
Total: 21.63 tall x 40.63 wide
Core: 19.63 tall x 34 wide x 2.25" thick
Inlet: 1.3"driver side
Outlet: 1.55" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator Cap included

Transmission Cooler included
(1/2"- 20 straight thread w/ 5/8"-18 adapter)

Engine oil Cooler included
(M20 x 1.5 w/ 3/4"-18 adapter)

When using electric fans (sold separately):
Two 16" Electric fans available for this core size
