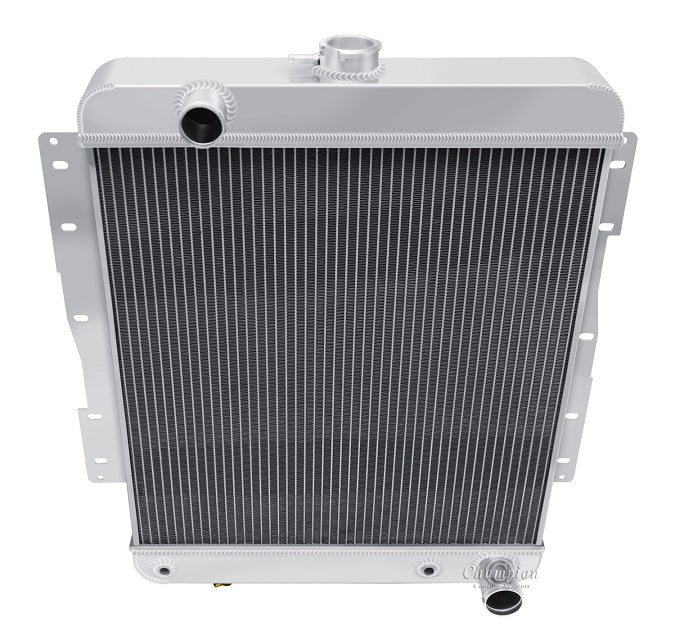

CC1662 3 Row w/AC

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

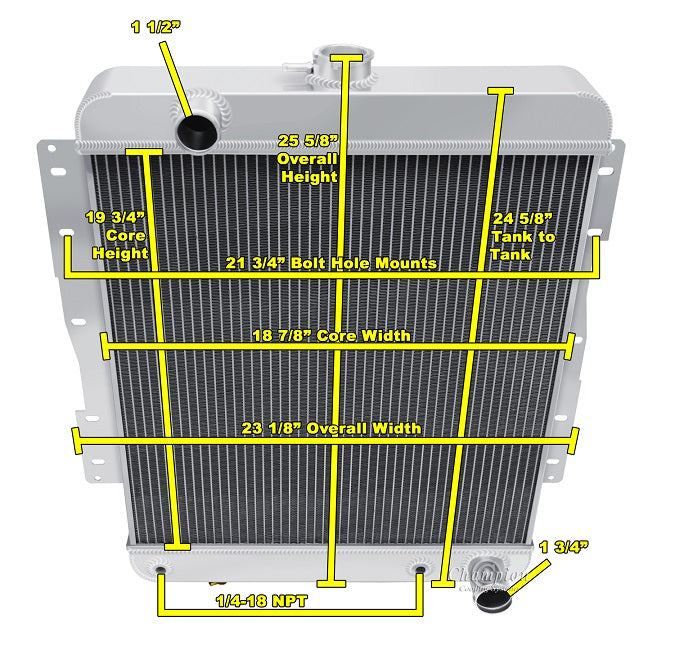

Radiator Dimensions:
Total: 24.5" tall (25.63" with cap) x 23.13" (including brackets)
Core: 19.75" tall x 18.875" wide x 2." thick
Inlet: 1.5" driver
Outlet: 1.75" passenger side
Tanks: Upper tank 3.13"thick
Lower tank 2.63 thick
Tubes: 0.63" thick

Bracket Mounted
Direct Fit Replacement

13lb. Radiator Cap included
Transmission Cooler included (1/4" NPT)

When using electric fans:
One 16" Electric fan recommended for this core size (sold separately)
