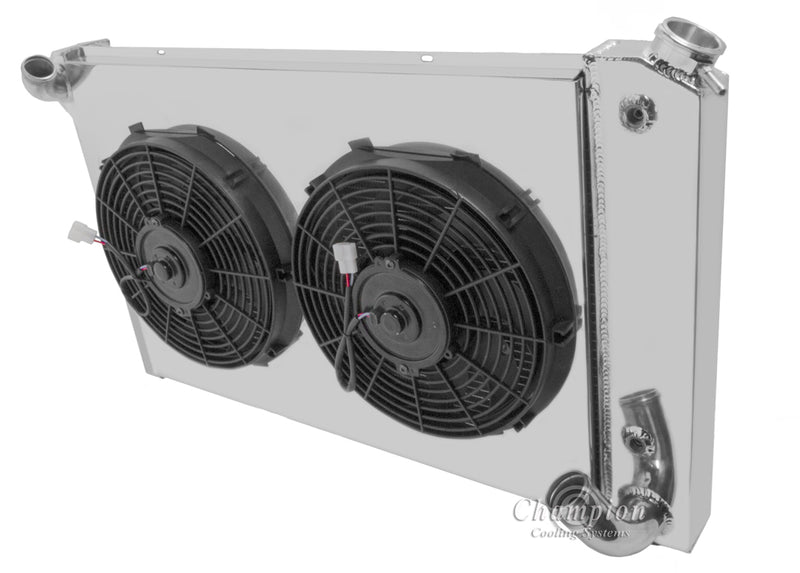

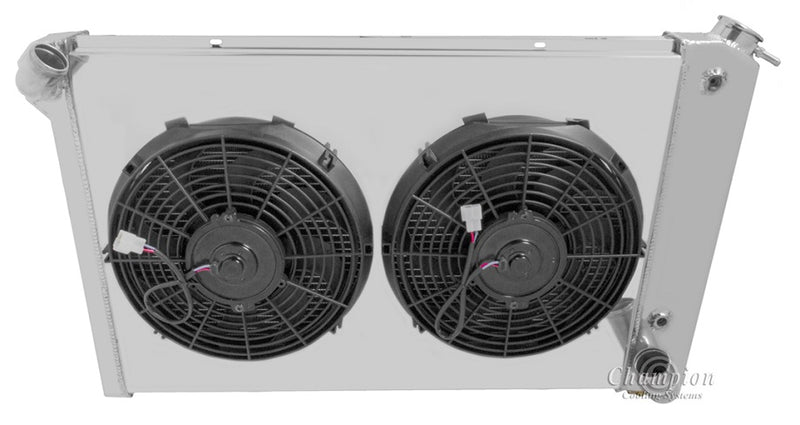

CC1655-1655FS12SP 3 Row Combo

Champion Aluminum Radiator
Plus Shroud and (2) SPAL-1522 12" fans
Fans larger than shown in photo
3-Row Core | Cools up to 650hp
Note: Automatic Transmissions ONLY. If you need the
small radiator with the U shaped outlet refer to CC6372B

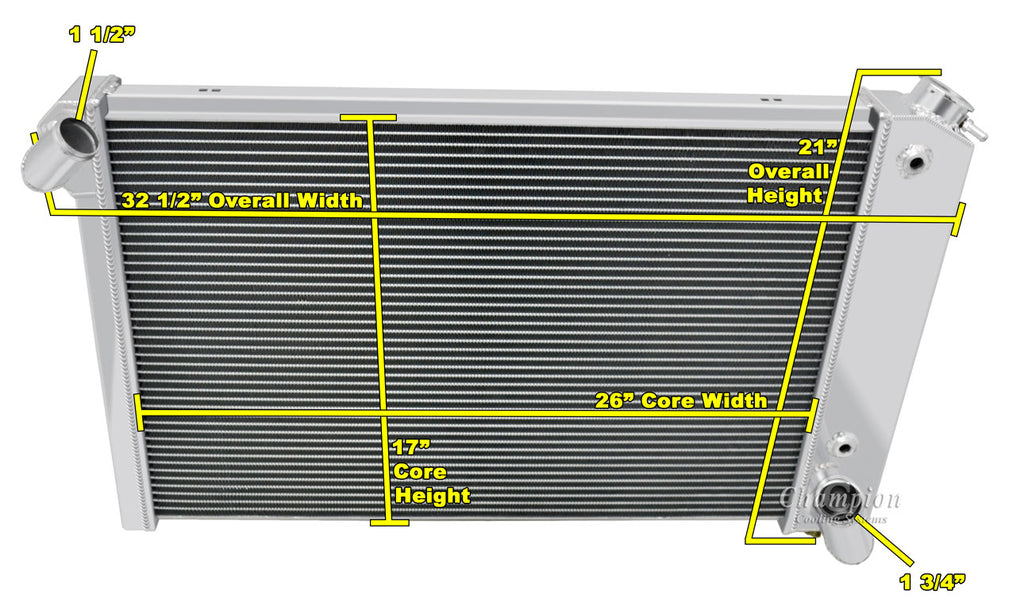

Radiator Dimensions:
Total: 18.5" tall (19.5" incl cap) x 31.63" wide
Core: 17" tall x 26" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Saddle Mounted

Radiator Cap included
Transmission Cooler included: 1/2"-20 Straight Thread
