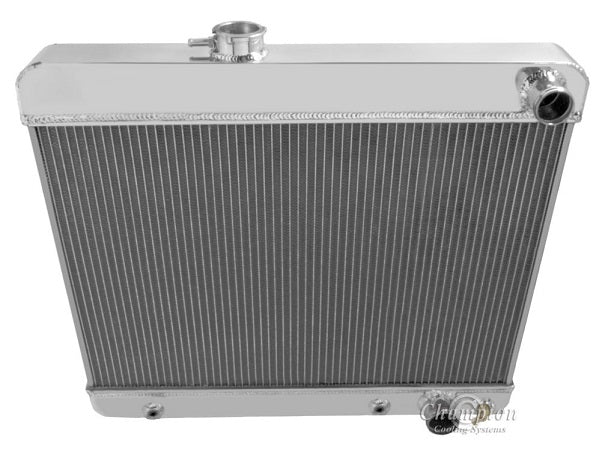

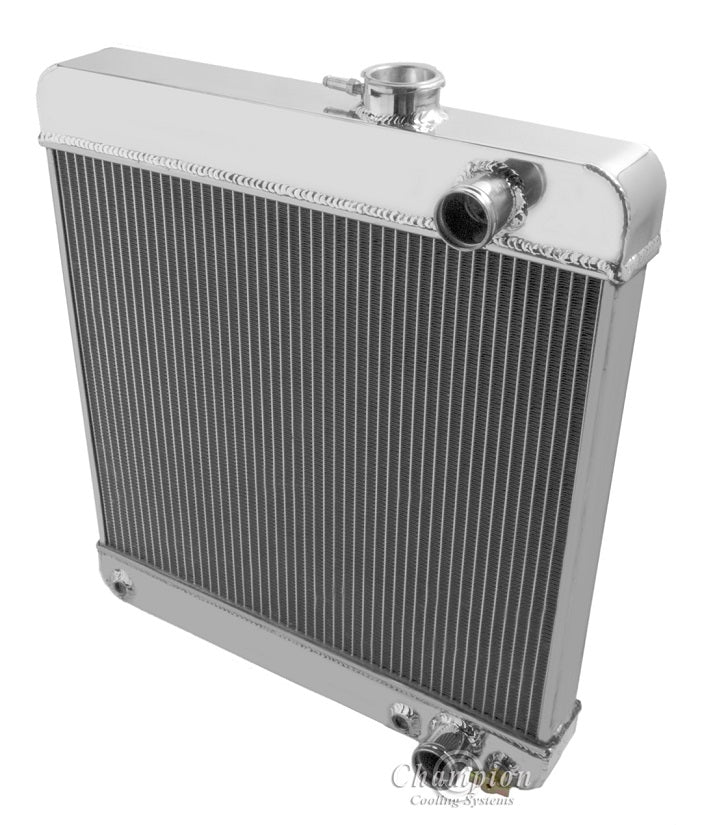

CC1651 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp
For the 4.9 300 V8 with a Down Flow radiator
Make sure you do not have the cross flow radiator
The 4.9 300 crossflow is the CC571
We do not carry the 6.6 401 crossflow radiators

Radiator Dimensions:
Total: 22" tall x 23.63" wide (including cap) x 2.5" thick
Core: 15.5" tall x 23" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/2"-20 Straight Thread)

Custom Shroud Available Upon Request.
