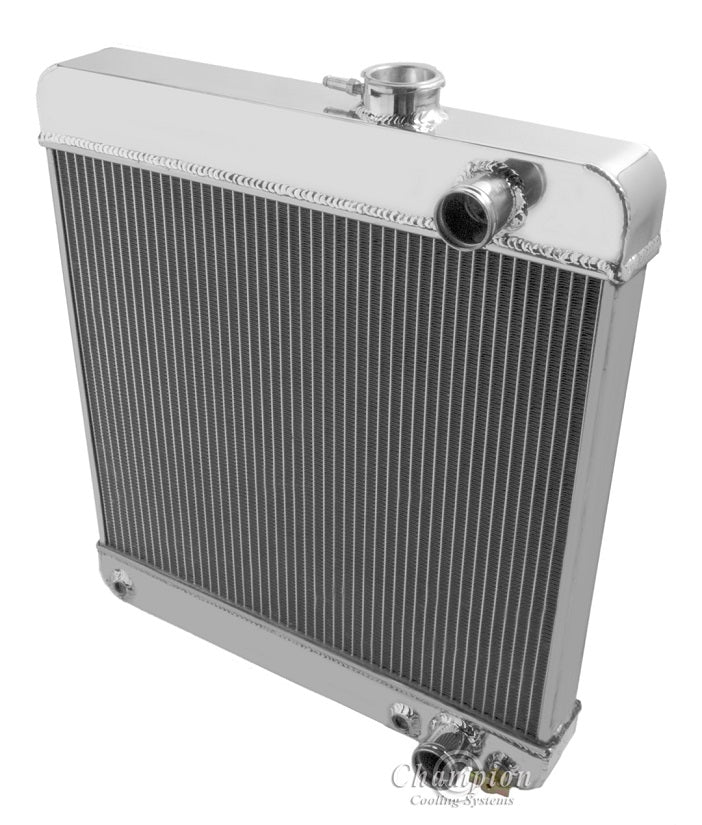

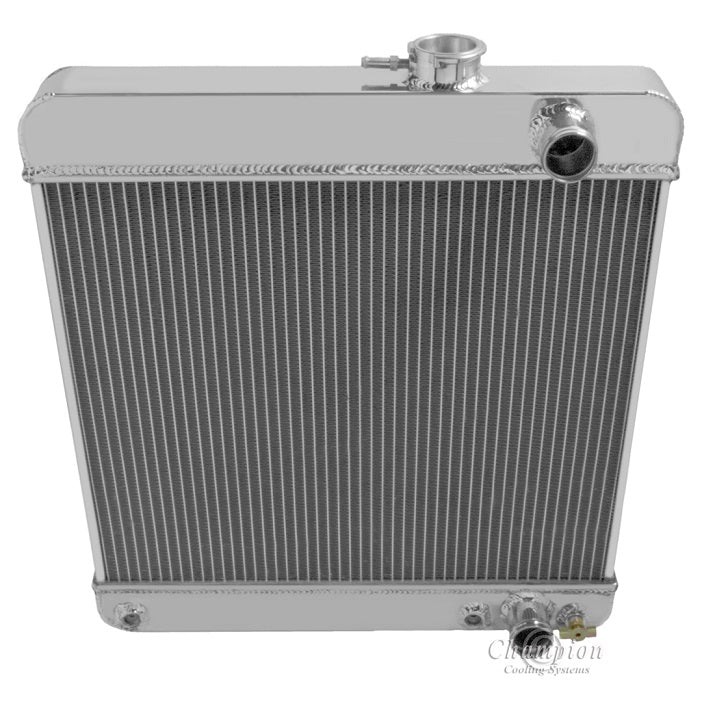

CC1650 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp
For the 3.7 225 V6

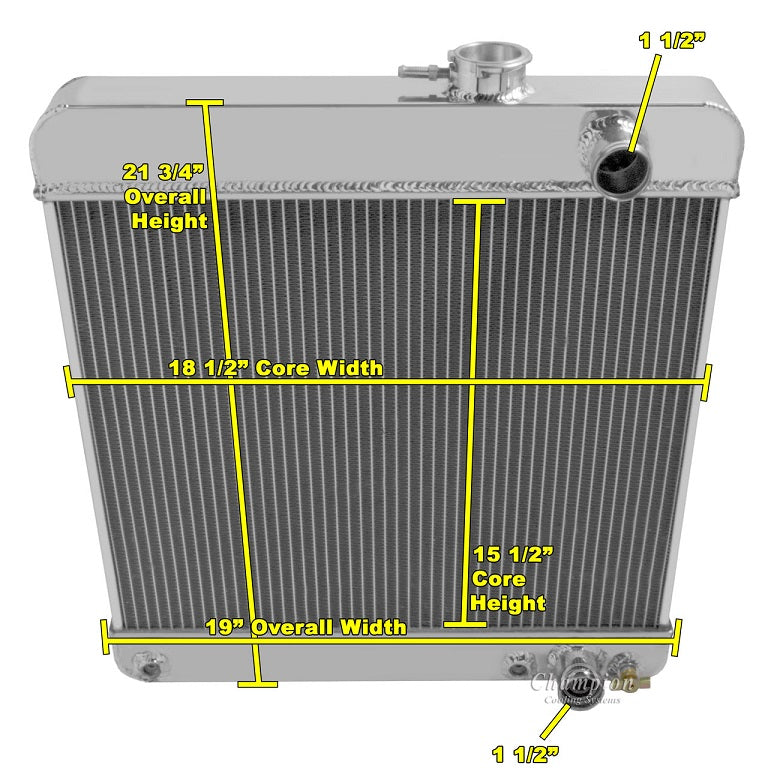

Radiator Dimensions:
Total: 21.75" tall (including cap) x 19" wide x 2.5" thick
Core: 15.5" tall x 18.5" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/2"-20 Straight Thread)
