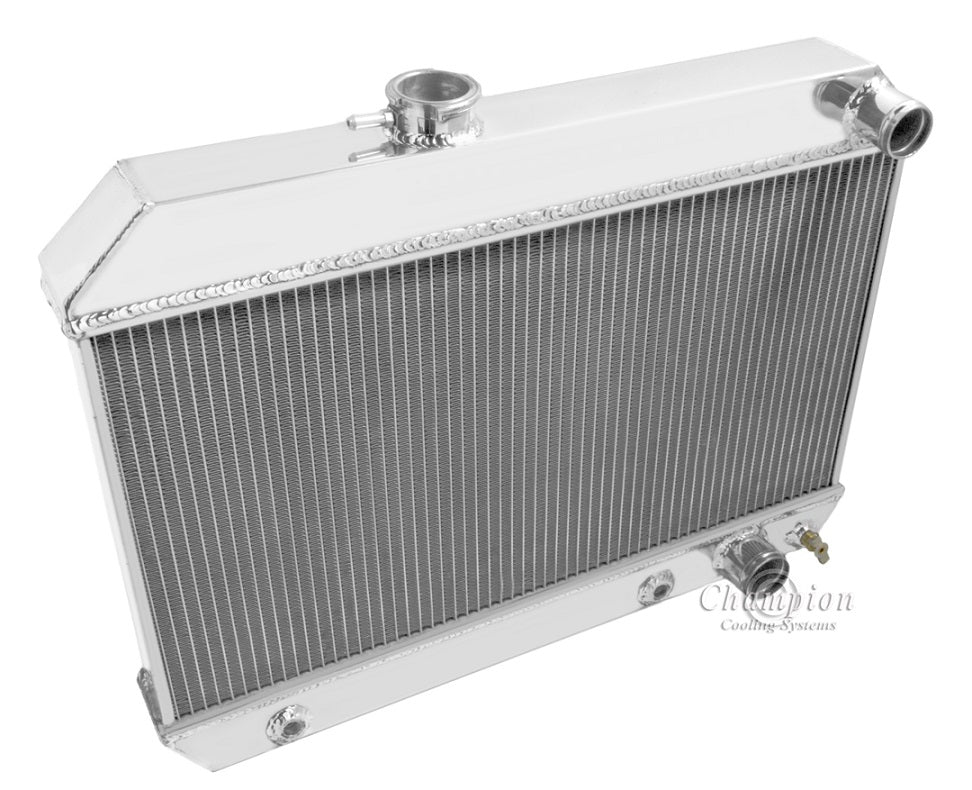

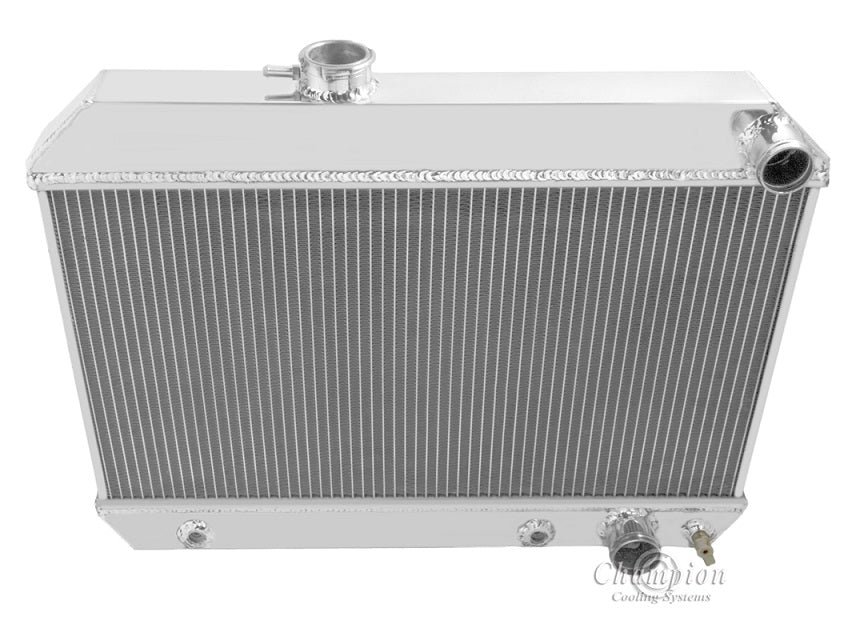

CC1649 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 500hp

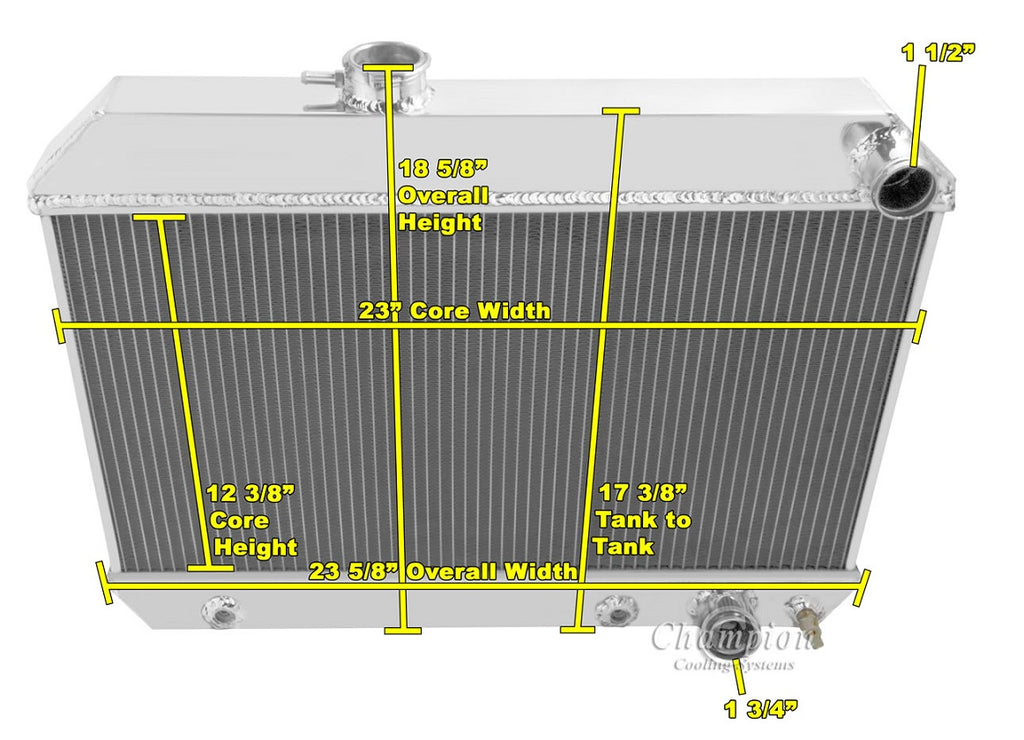

Radiator Dimensions:
Total: 18.63" tall x 23.63" wide (with cap) x 2.5" thick
Core: 12.38" tall x 23" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/2"-20 Straight Thread)
