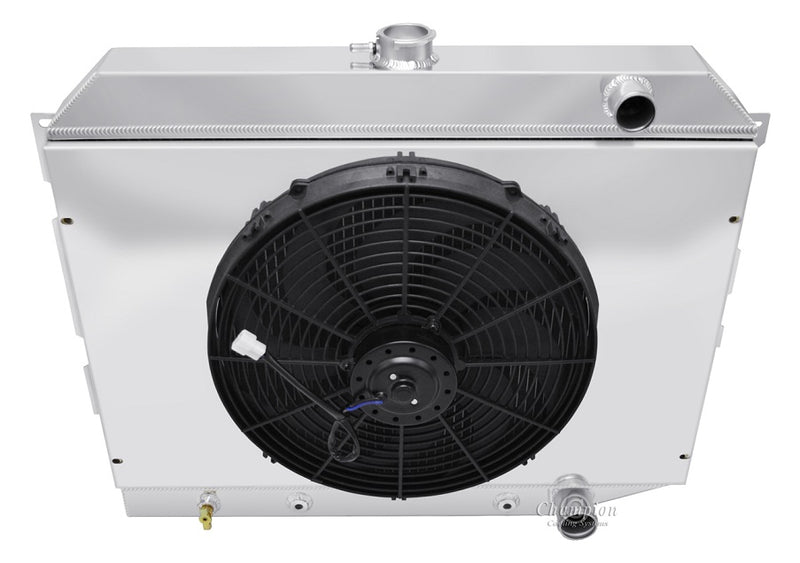

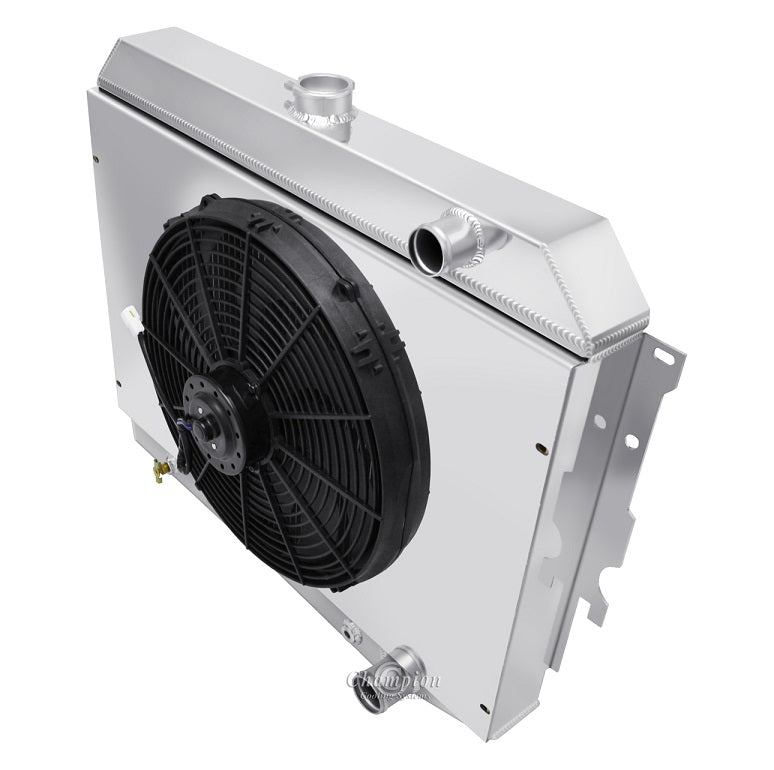

CC1643B-1643FS16 3 Row Combo

All Aluminum Champion Radiator PLUS
Aluminum Shroud & 16" Pro-Series Fan
3-Row Core | Cools up to 650hp

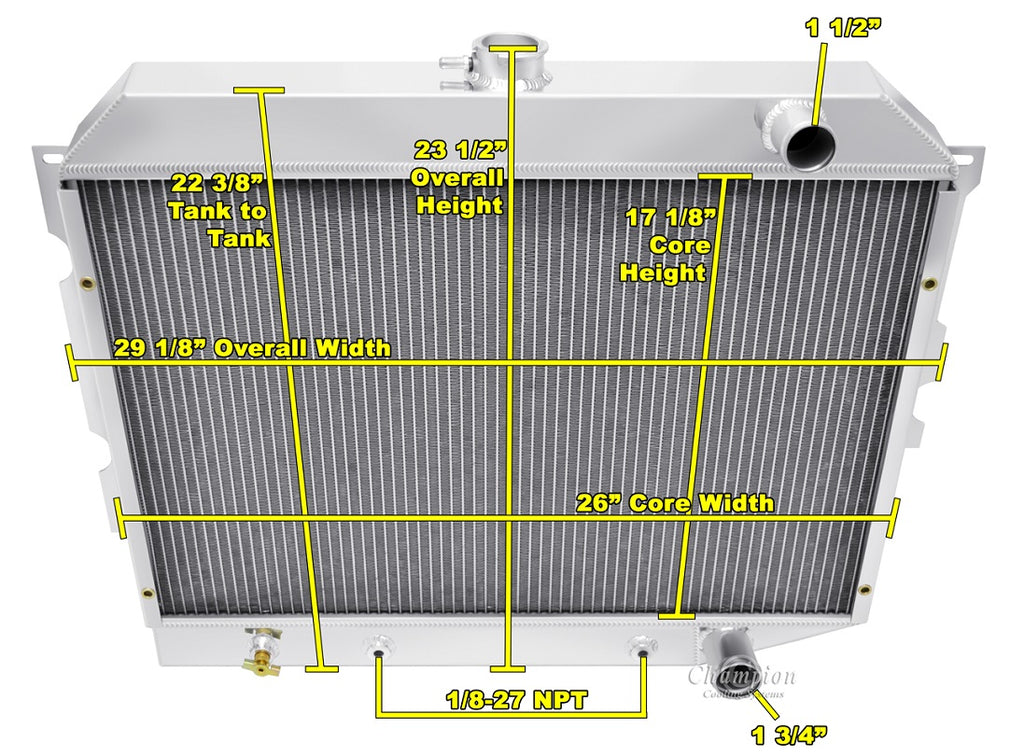

Radiator Dimensions:
Total: 21.25" tall (22.63" with cap) x 29" wide (with brackets)
Core: 16.25" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5"

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
