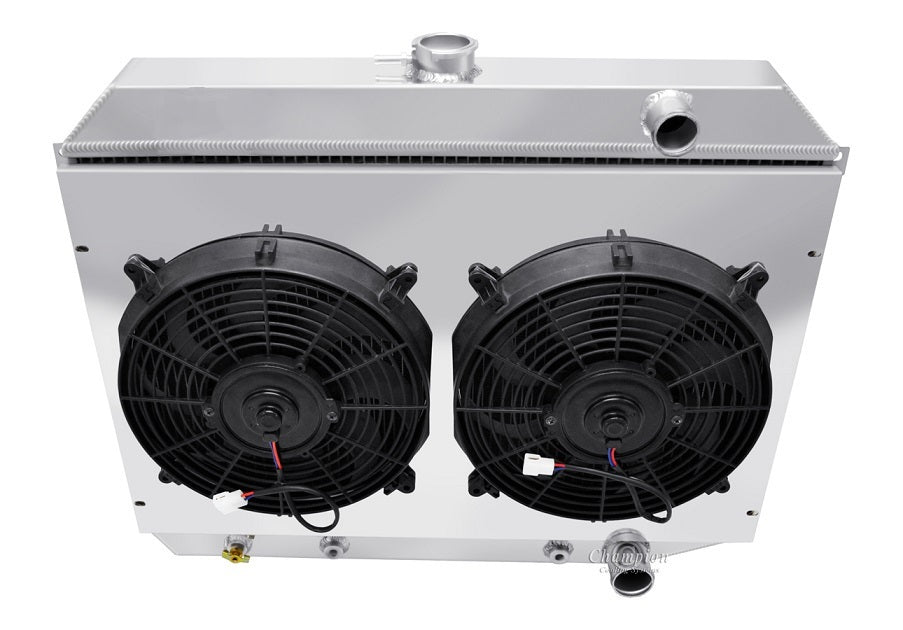

CC1643B-1643FS12SP 3 Row Combo

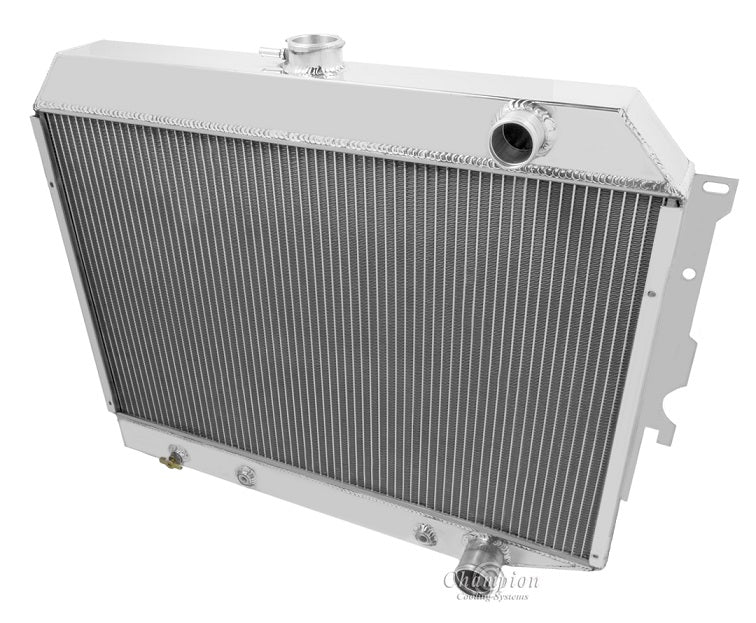

All Aluminum Champion Radiator PLUS
Ledfoot Racing Shroud & Two SPAL-1522 12" Fans
3-Row Core | Cools up to 650hp

Radiator Dimensions:
Total: 21.25" tall (22.63" with cap) x 29" wide (with brackets)
Core: 16.25" tall x 26" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.75" passenger side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.38" (5.5" between fan motors)

Bracket Mounted

Radiator Cap included
Transmission Cooler included (1/8-27NPT)
