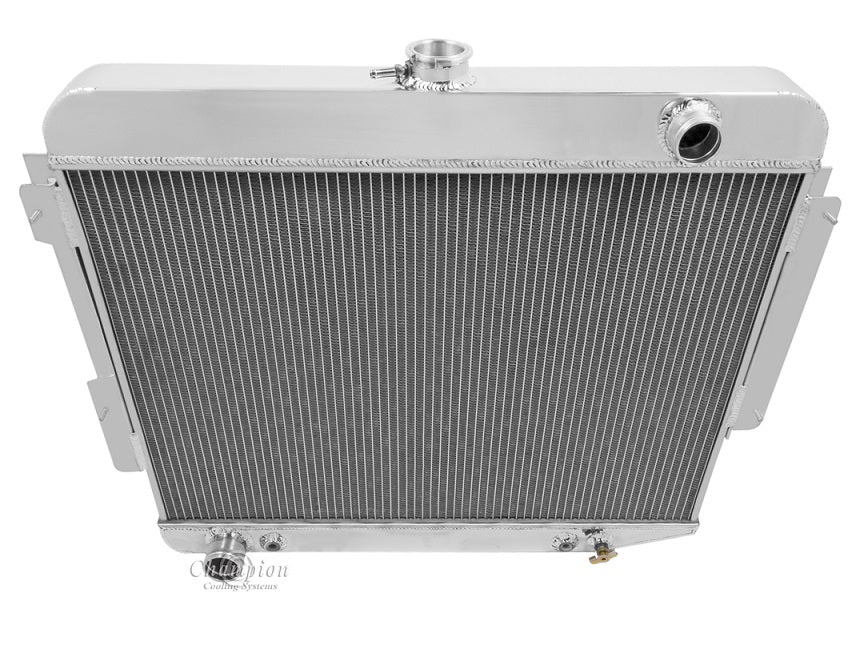

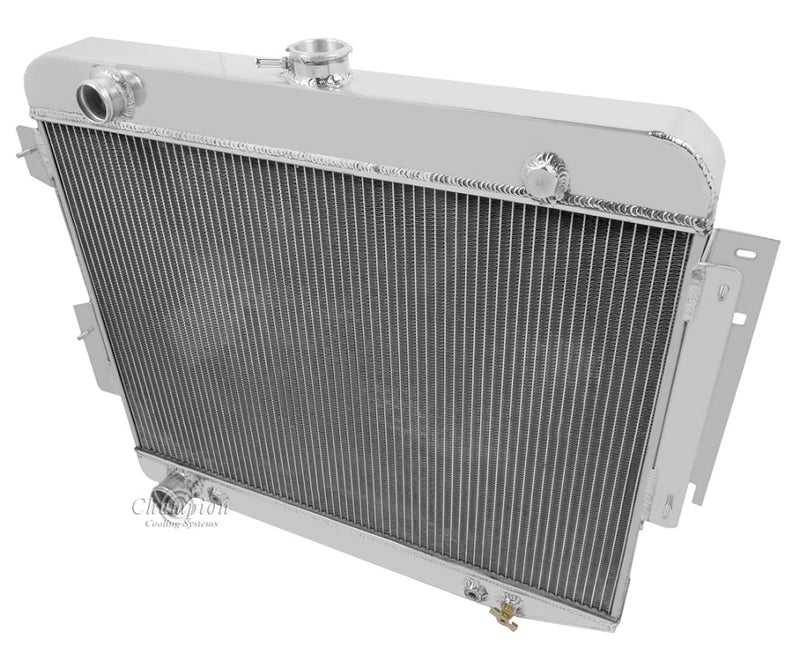

CC1640 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 650hp

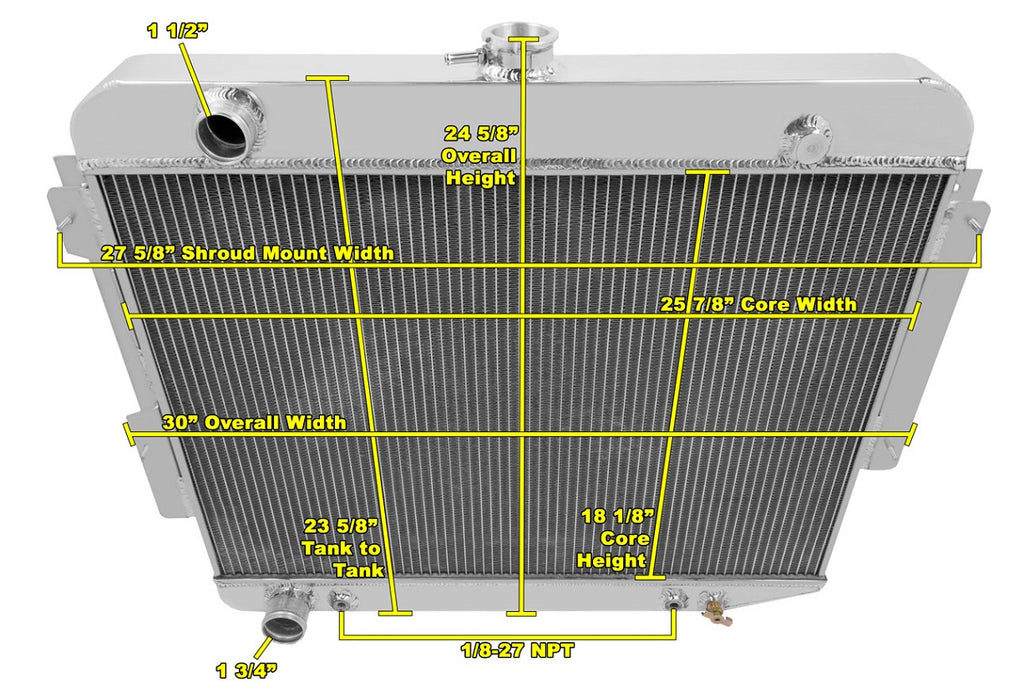

Radiator Dimensions:
Total: 24.75" tall (with cap) x 29.75" wide (with brackets) x 2.25" thick
Core: 18" tall x 26.25" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" driver side
Tanks: 2.5" thick
Tubes: 0.63" thick

Bracket Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Custom shroud for electric fan(s) available upon request:
