CC1635-BLK 3 Row Black

All Aluminum Champion Radiator (Black)
3-Row Core | Cools up to 550hp
If you need a shorter version, refer to part CC66
For the passenger side outlet refer to part CC1635LP

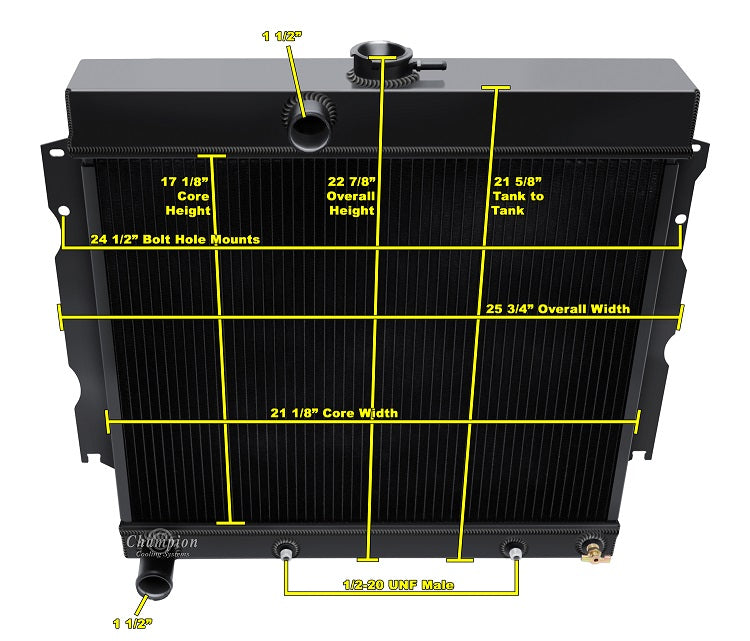

Radiator Dimensions:
Total: 21.63" tall (22.87" with cap) x 26" wide (with brackets)
Core: 17.13" tall x 22" wide x 2" thick
Inlet: 1.5" driver side; off center
Outlet: 1.5" driver side
Tanks: 3.5" thick
Tubes: 0.63" thick

Bracket Mounted

13 lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)

Aluminum Fan Shroud is also available (sold separately)

Recommended fans:
16" Electric Cooling Fan (sold separately)
