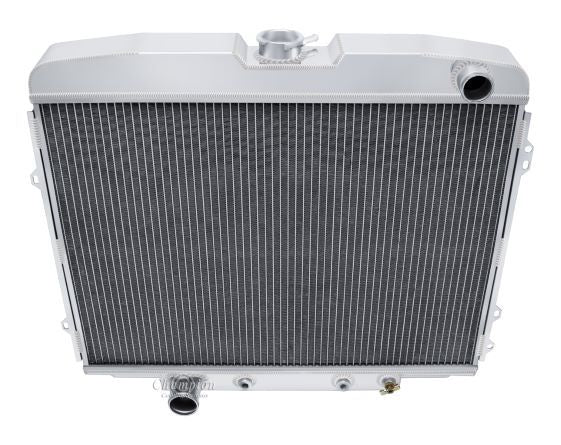

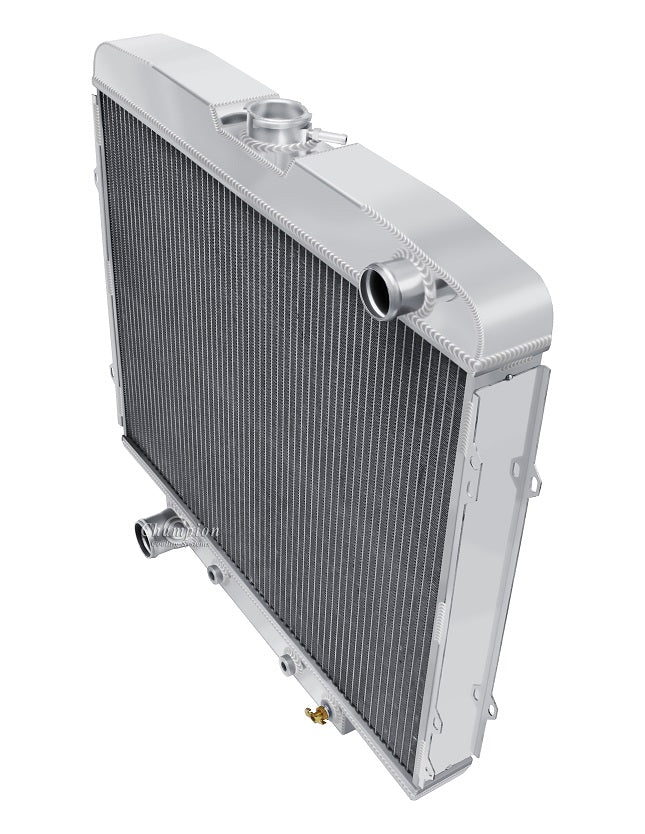

CC1633 3 Row Big Blocks

Champion All Aluminum Radiator
3-Row Core | Cools up to 600hp

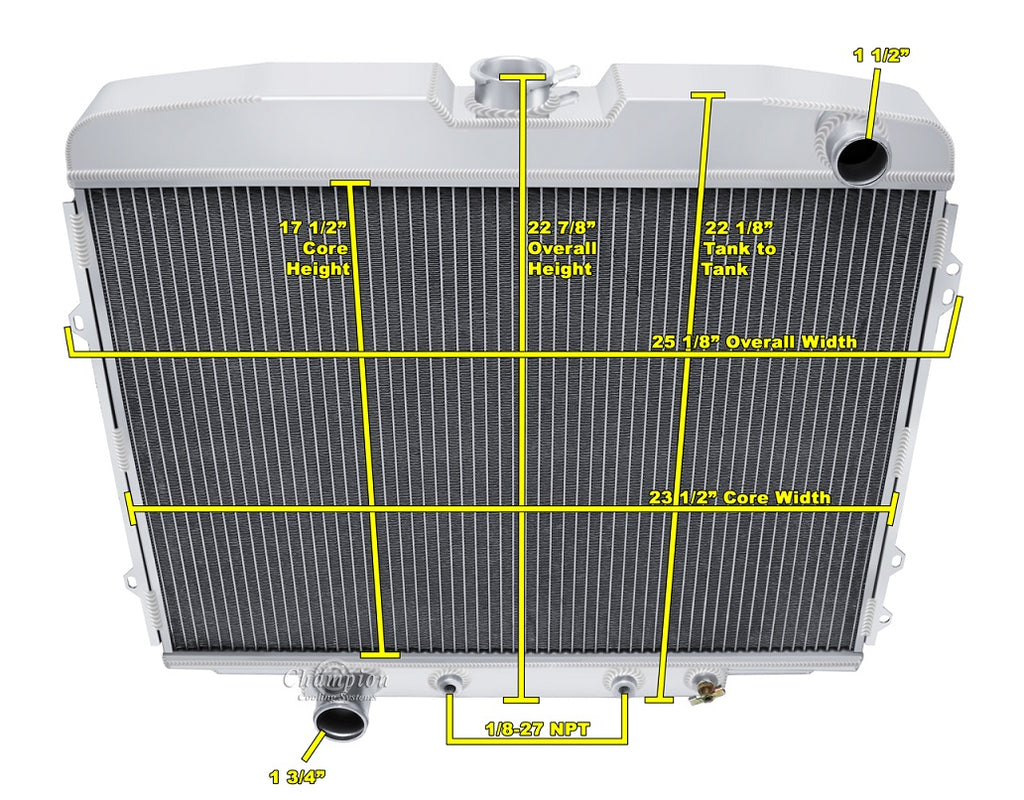

Radiator Dimensions:
Total: 22.88" tall x 25.13" wide (with brackets)
Core: 27.5" tall x 23.5" wide x 2" thick
Inlet: 1.5" driver
Outlet: 1.75" passenger
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle or Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 11" Electric fans recommended for this core size
