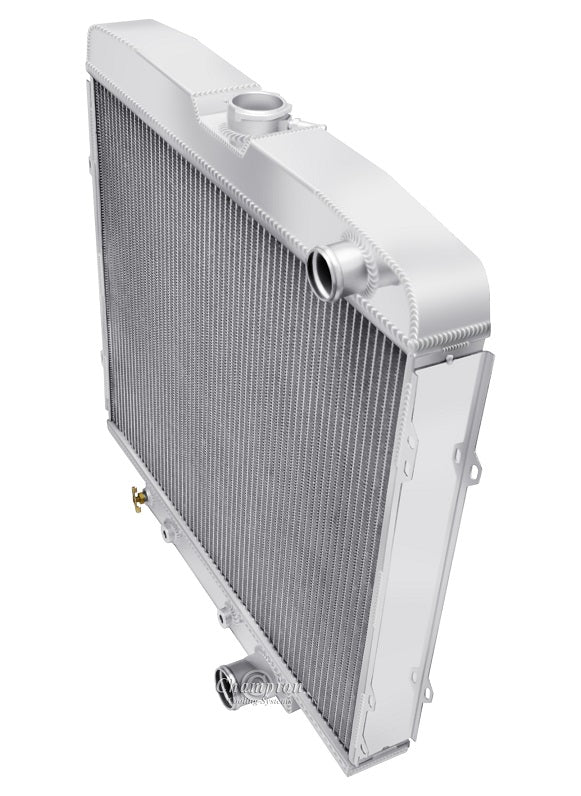

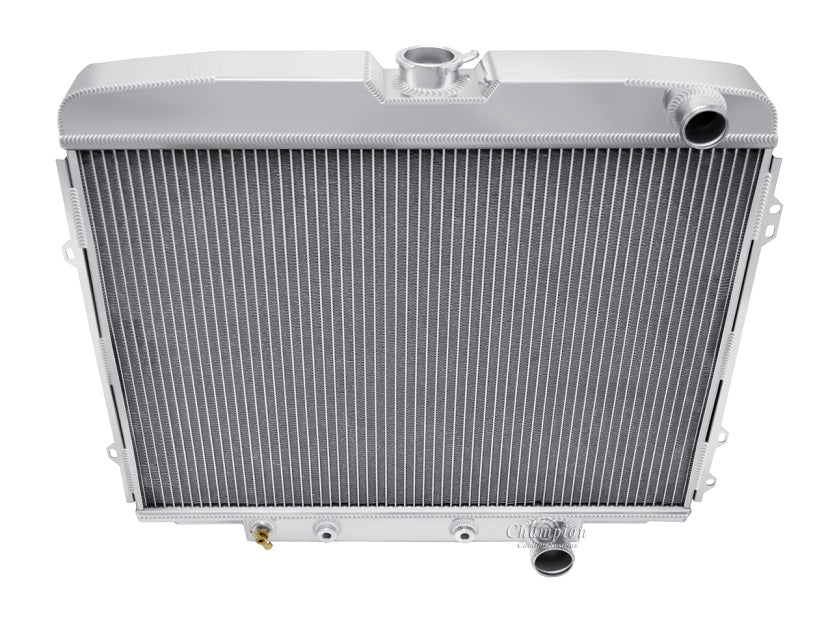

CC1631-1631FS11C 3 Row Dual Combo

Champion All Aluminum Radiator PLUS
Aluminum Shroud and (2) SPAL-1500 11" Fans
3-Row Core | Cools up to 600hp

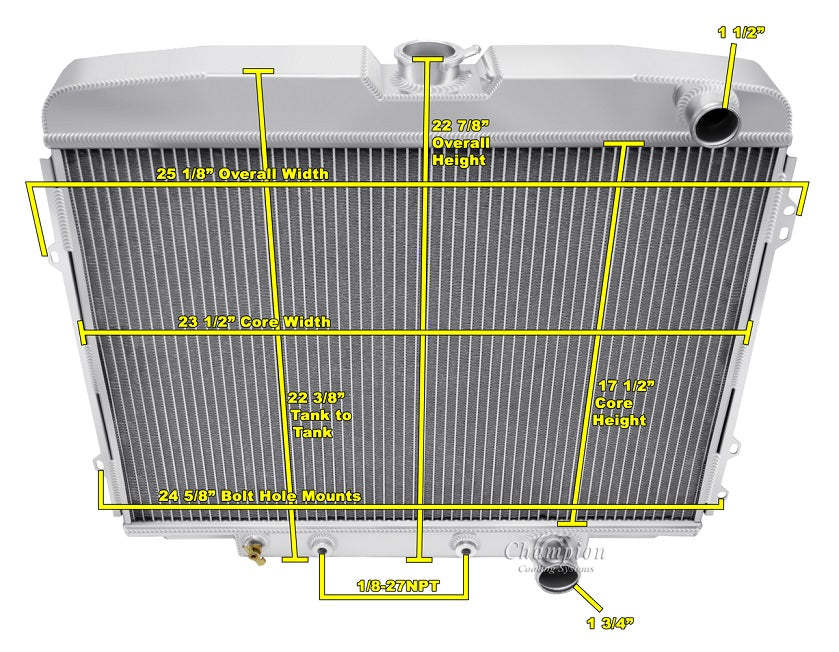

Radiator Dimensions:
Total: 22.88" tall x 25.13" wide (with brackets)
Core: 17.5" tall x 23.5" wide x 2" thick
Inlet: 1.5" passenger
Outlet: 1.75" passenger
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle or Bracket Mounted

13lb. Radiator Cap included
Transmission Cooler included (1/8-27NPT)
