CC162DP-BLK 3 Row Dual Pass Black

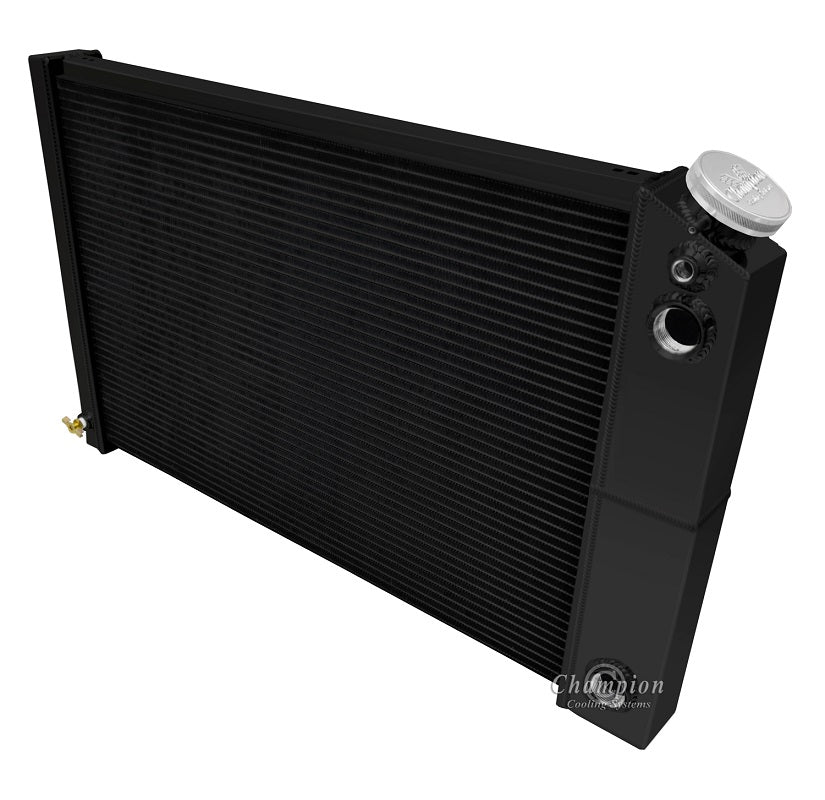

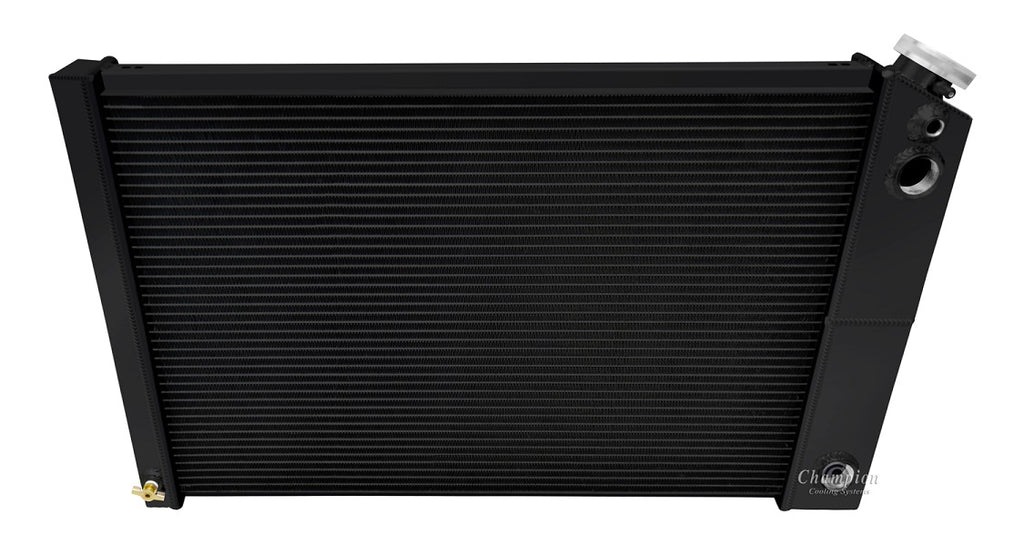

Champion All Aluminum Radiator (Black)
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 800hp

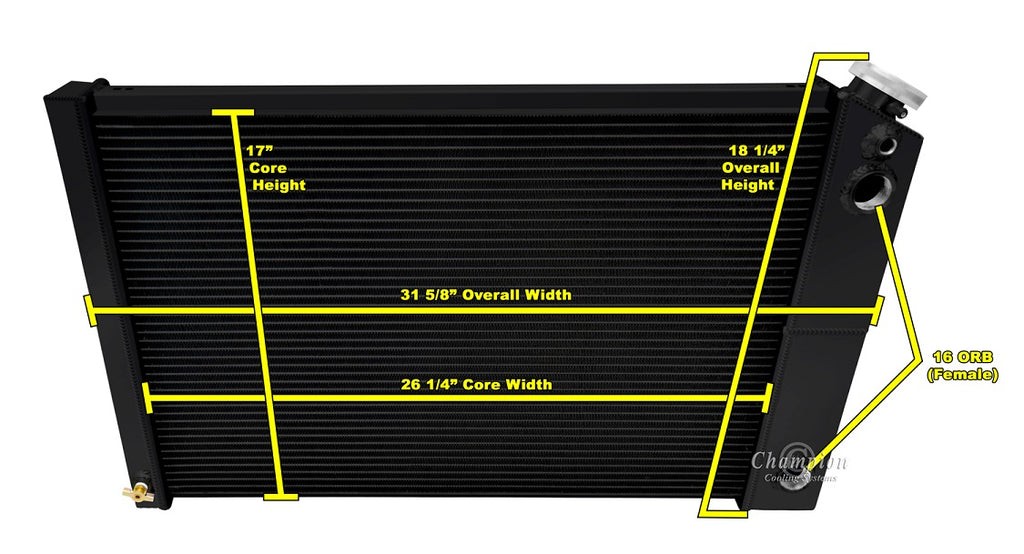

Radiator Dimensions
Total: 31" wide x 18.25" tall (19" with cap) x 2.5" deep
Core: 26.25" wide x 16.75" tall x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
