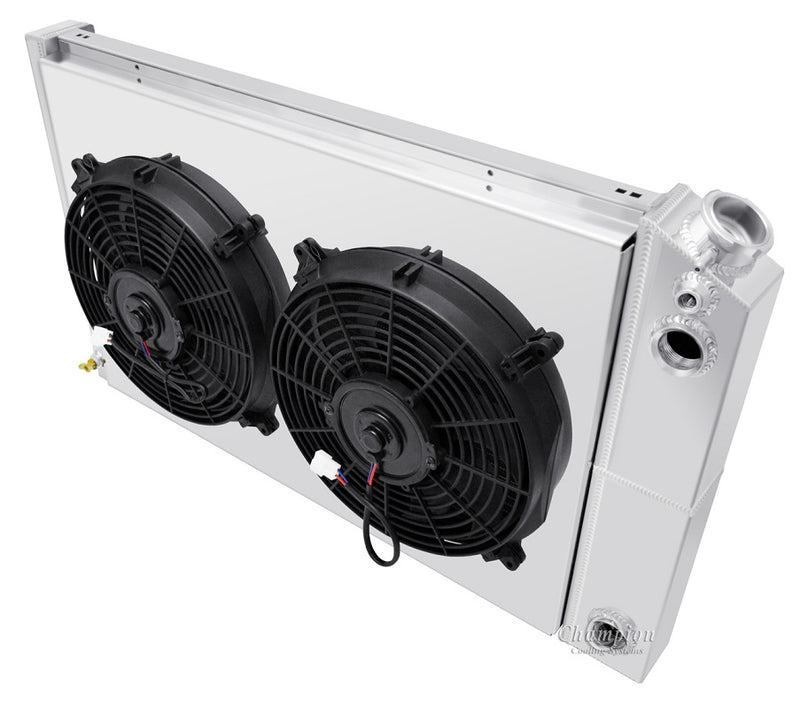

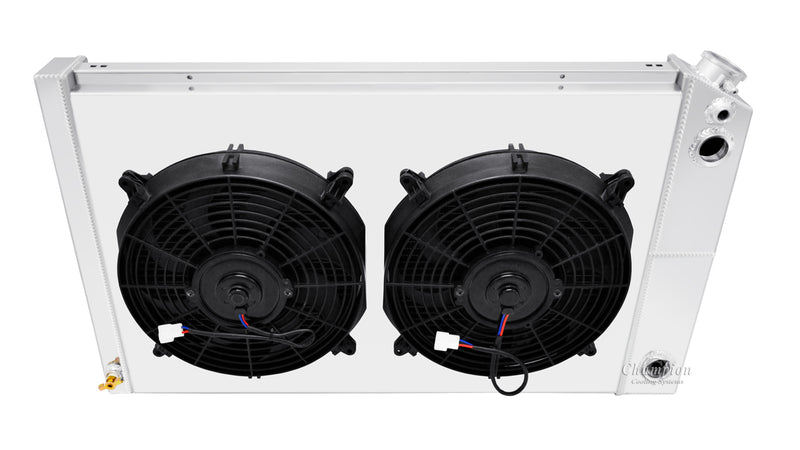

CC162DP-162FS12SP 3 Row Dual Pass

Champion All Aluminum Radiator PLUS
Aluminum Shroud & (2) SPAL-1522 12" Fans
Dual Pass / LS Conversions
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 800hp

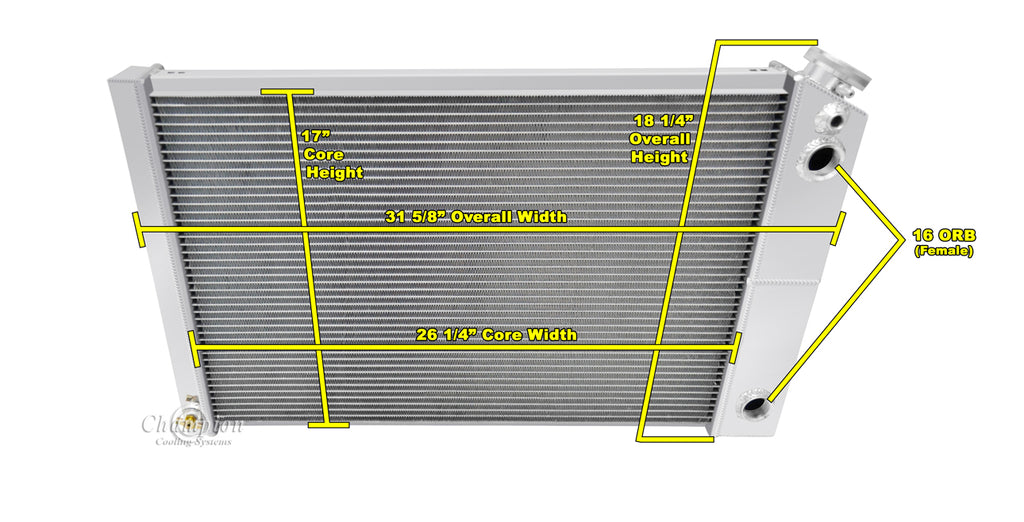

Radiator Dimensions
Total: 31" wide x 18.25" tall (19" with cap) x 2.5" deep
Core: 26.25" wide x 16.75" tall x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 5.5" (4.5" between fan motors)

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
