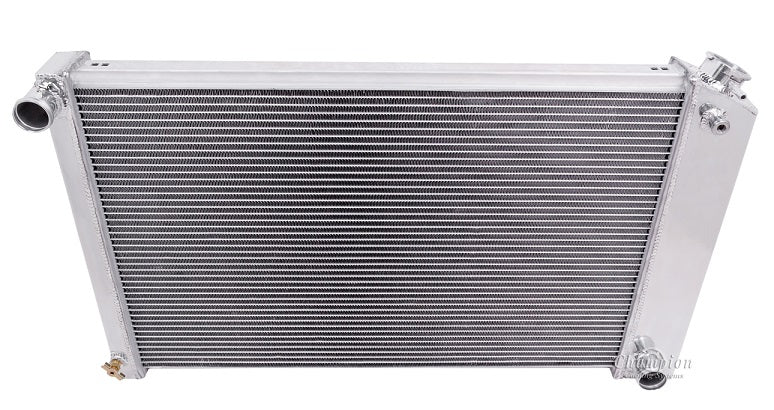

CC162-M 3 Row Manual

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp
MANUAL TRANSMISSION ONLY

Radiator Dimensions
Total: 31" wide x 18.25" tall (19" with cap) x 2.5" deep
Core: 26.25" wide x 16.75" tall x 2.25" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted


13 lb. Radiator Cap included
NO Transmission Cooler included
Aluminum Fan Shroud is also available (sold separately)

When using electric fans (sold separately):
One 16" or two 12" Electric fans recommended for this core size
