CC161DP-BLK-161FS14-BLK 3 Row Dual Pass Combo (Black)

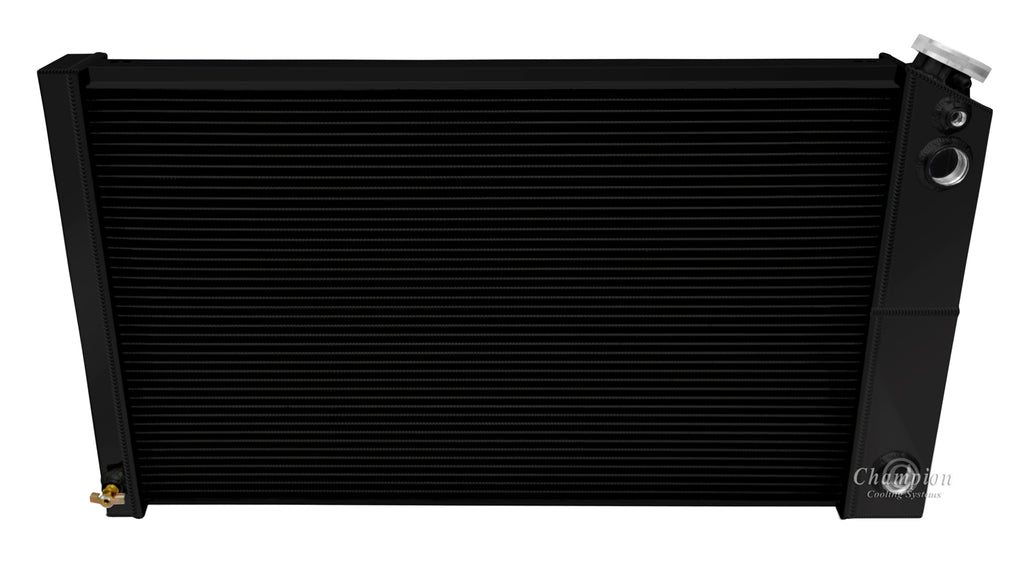

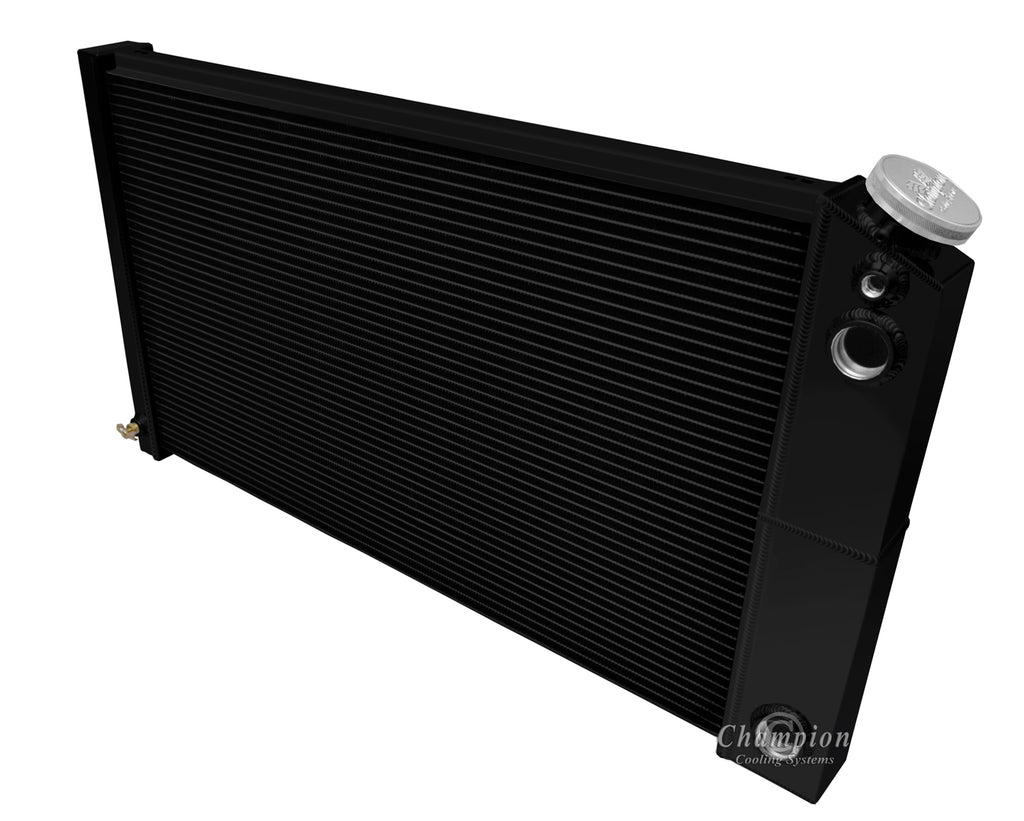

Champion All Aluminum Radiator (Black)
Dual Pass / LS Conversions

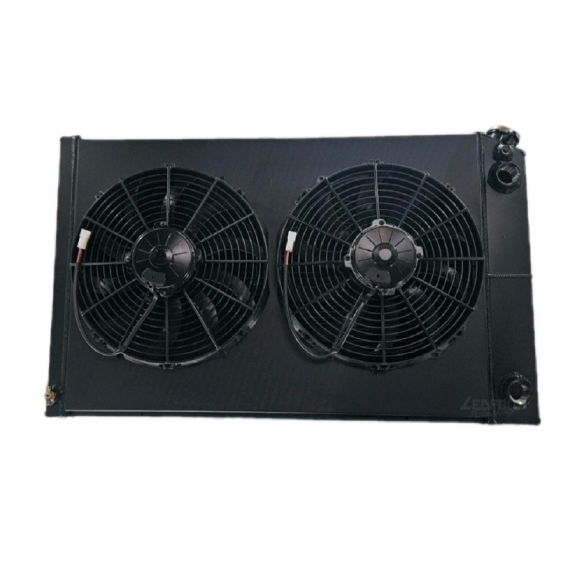

Plus Ledfoot Racing Aluminum Shroud & 2-14" Fans (Black)
Verify clearance for electric fan
You MUST Choose your Outlet sizes -->
Call for AN16 or AN20 Outlets
3-Row Core | Cools up to 1000hp

Radiator Dimensions:
Total: 18.63" tall (19" with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: (Choice your size below) passenger side
Outlet: (Choice your size below) passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Total Thickness: 6" (5" between fan motors)

Saddle Mounted

16 lb. Billet Radiator Cap included
Steam Port with 1/4" barbed fitting and plug included
