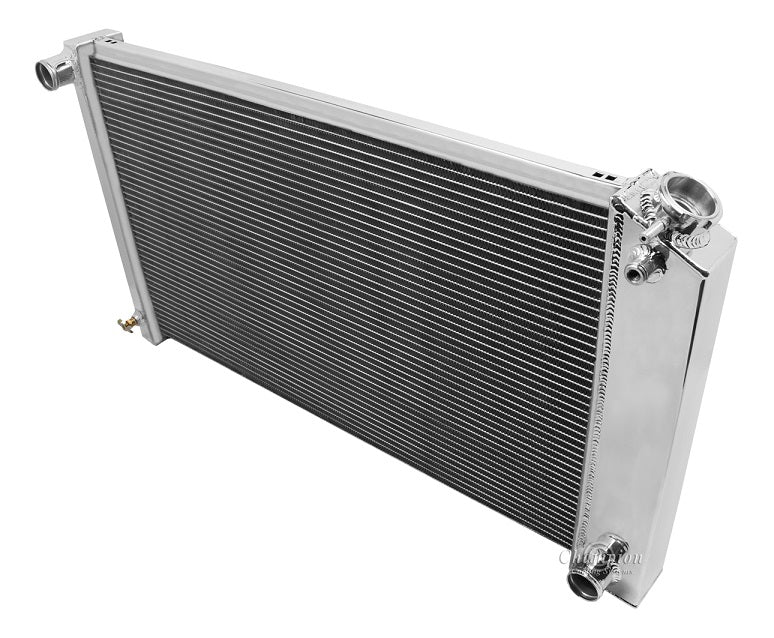

CC161-M 3 Row Manual

Champion All Aluminum Radiator
3-Row Core | Cools up to 1000hp
MANUAL TRANSMISSION ONLY

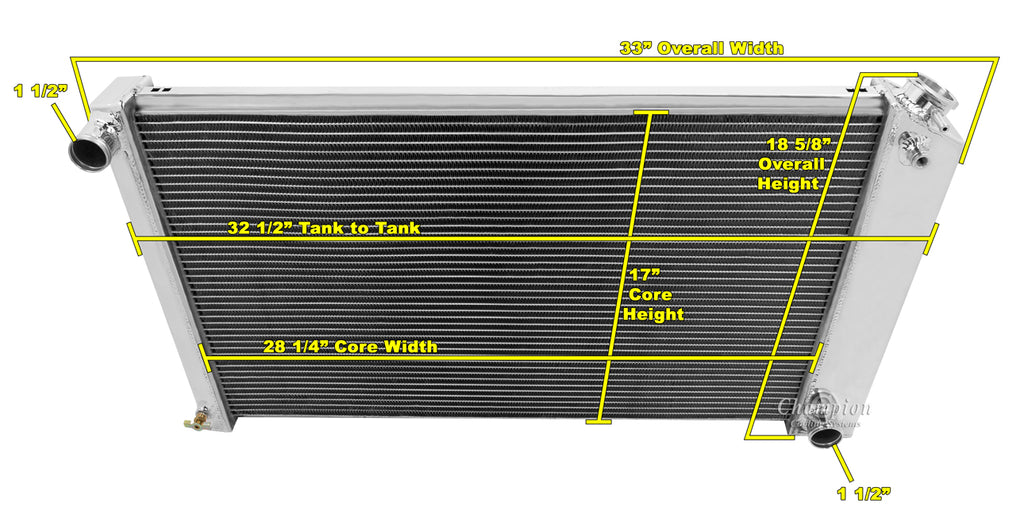

Radiator Dimensions:
Total: 18.63" tall (19” with cap) x 33" wide
Core: 17" tall x 28.25" wide x 2" thick
Inlet: 1.5" driver side
Outlet: 1.5" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

13 lb. Radiator Cap included
NO Transmission Cooler included
Aluminum Shroud is also available (sold separately)

When using electric fans (sold separately):
Two 14" Electric fans recommended for this core size
