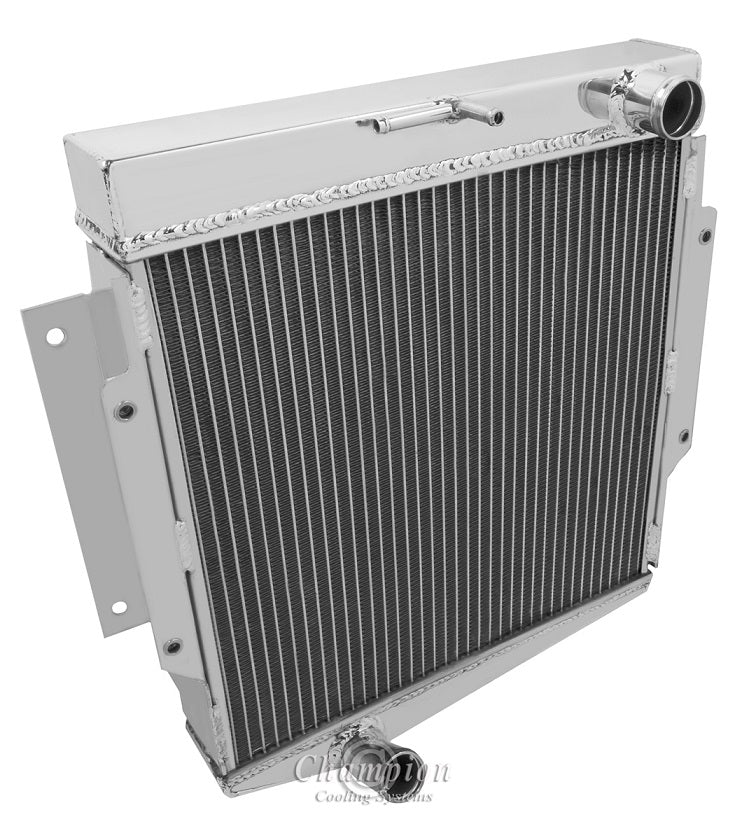

CC1600B 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 400hp

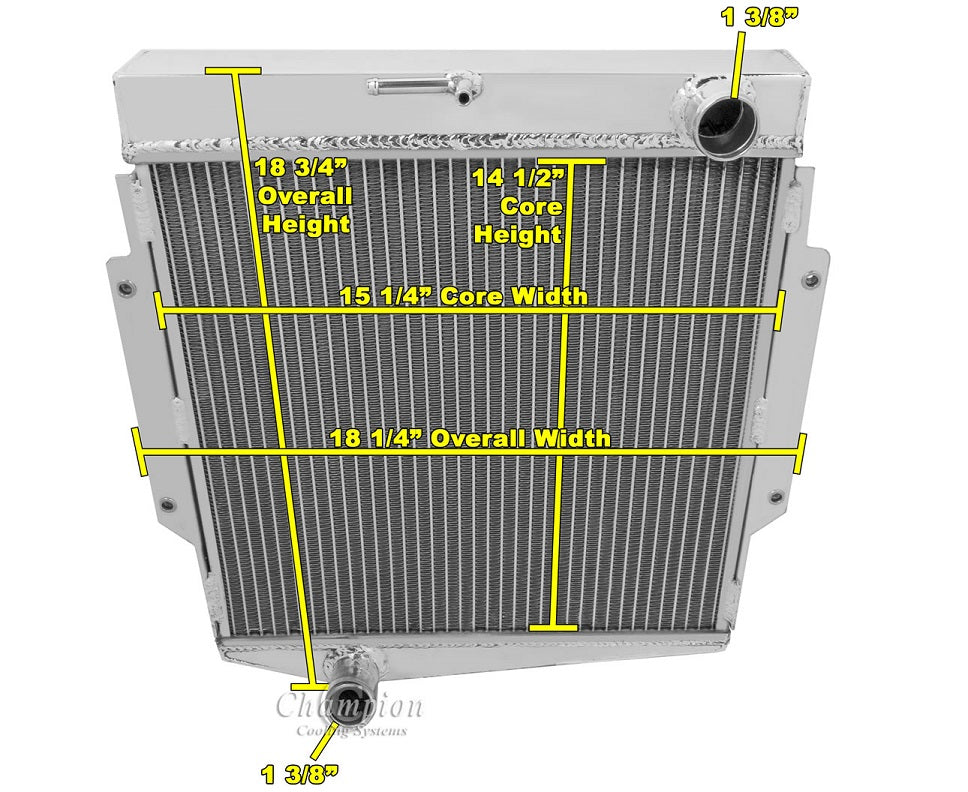

Radiator Dimensions:
Total: 18.75" tall x 18.25" wide (with brackets)
Core: 14.5" tall x 15.25" wide x 2" thick
Inlet: 1.38" passenger side
Outlet: 1.38" driver side
Tanks: 2.75" deep
Tubes: 0.75" thick

Bracket Mounted

Transmission Cooler NOT Included
16 lb. Radiator Cap included

Custom shroud for electric fan(s) available upon request:
