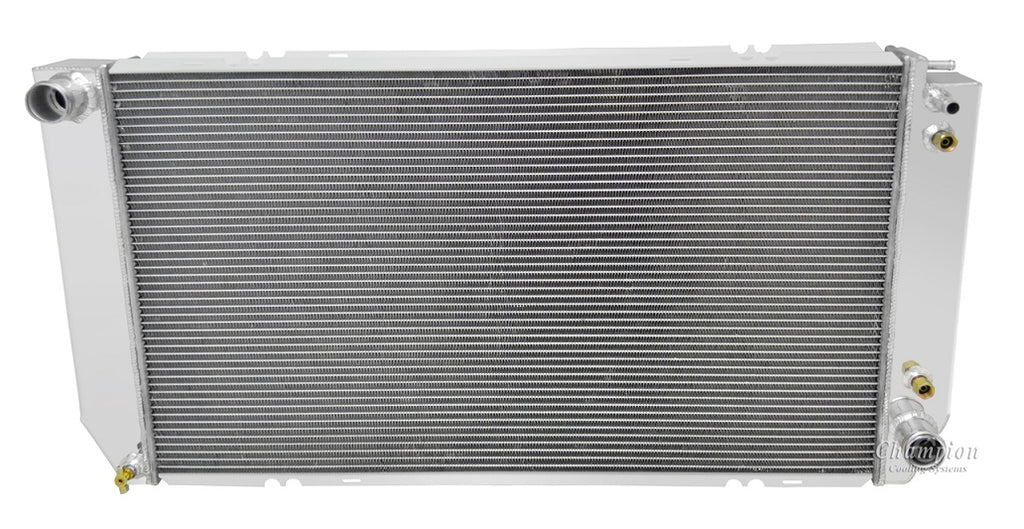

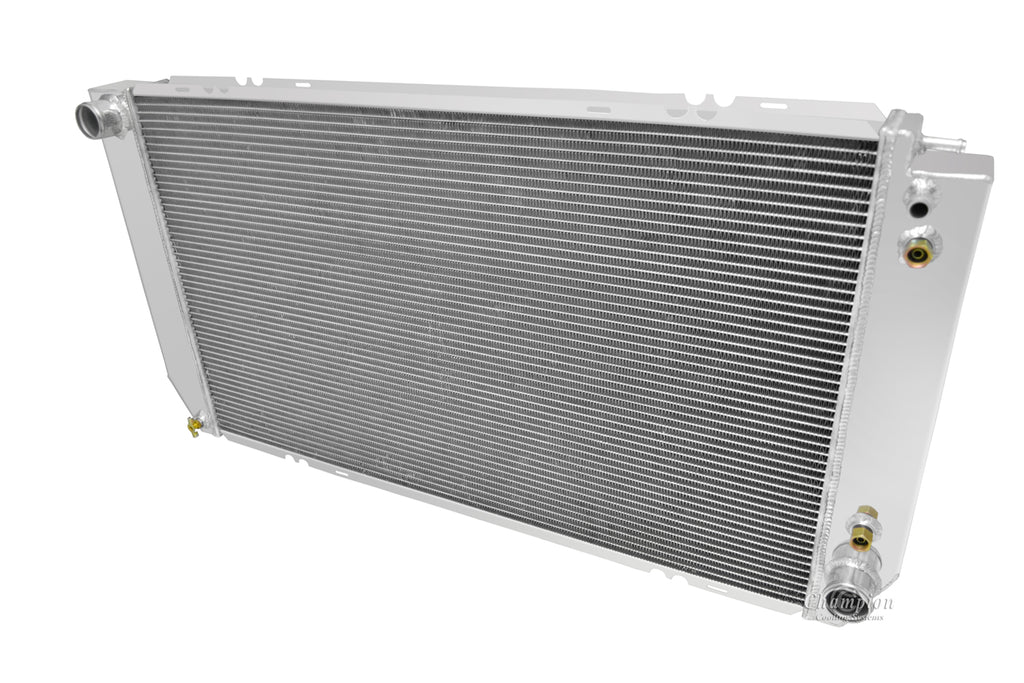

CC1523 3 Row Diesel

Champion All Aluminum Radiator
3-Row Core | Cools up to 800hp

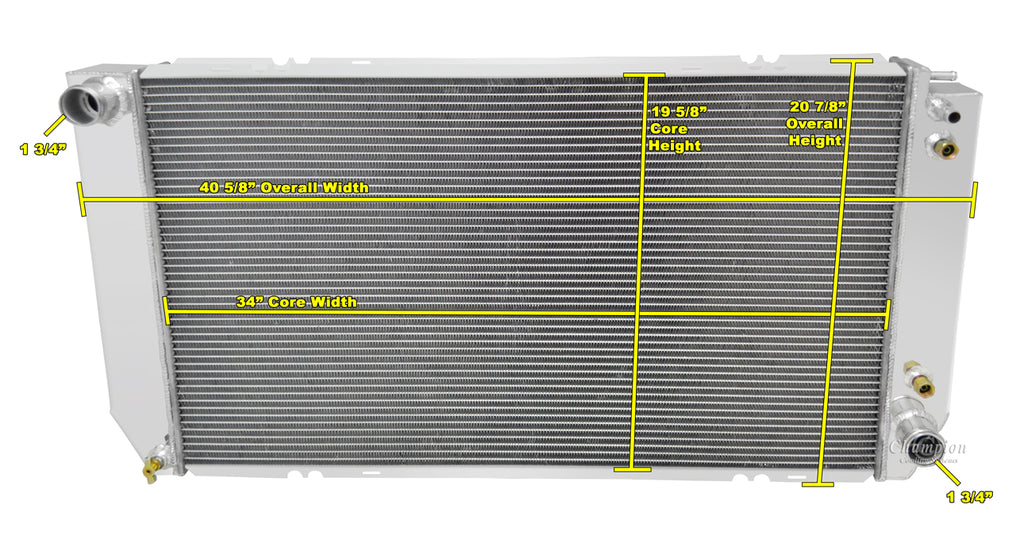

Radiator Dimensions:
Total: 20.87" tall x 40.63" wide
Core: 19.63 tall x 34 wide x 2.25" thick
Inlet: 1.75 driver side
Outlet: 1.75 passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick

Saddle Mounted

Transmission Cooler included (1/2-20 Straight Thread, Inverted Flare)

When using electric fans (sold separately):
Two 14" Electric fans or two 16" electric fans recommended for this core size
