Description

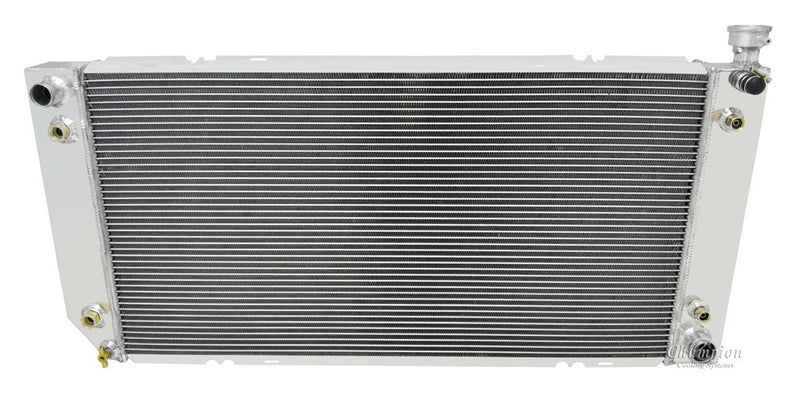

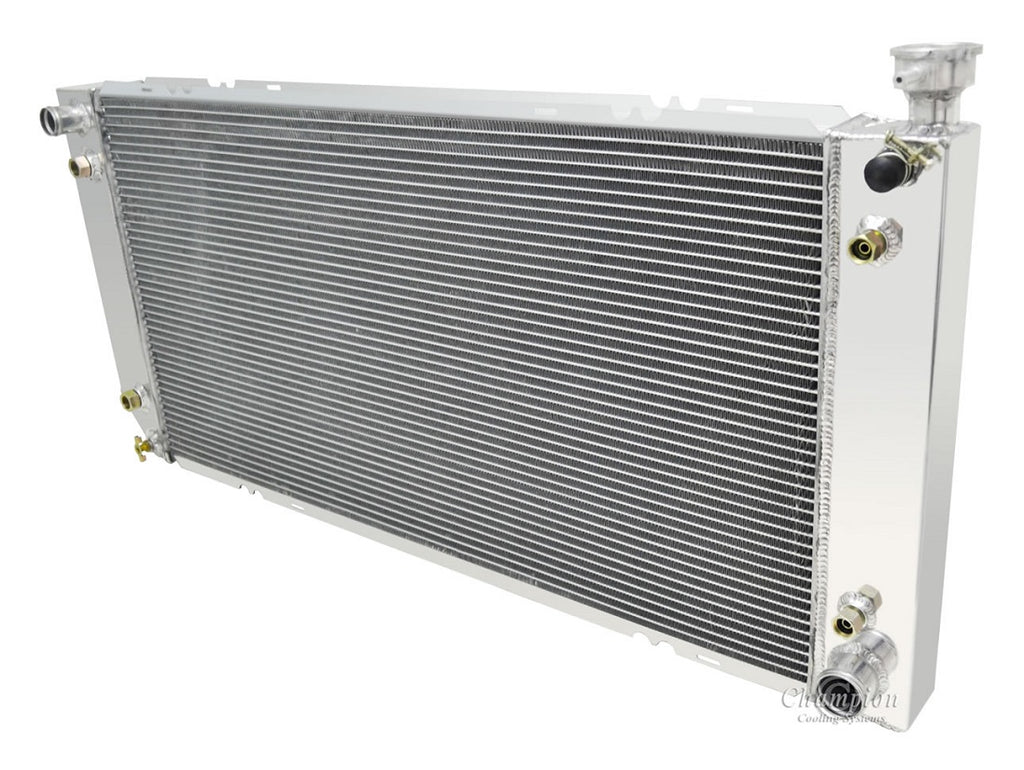

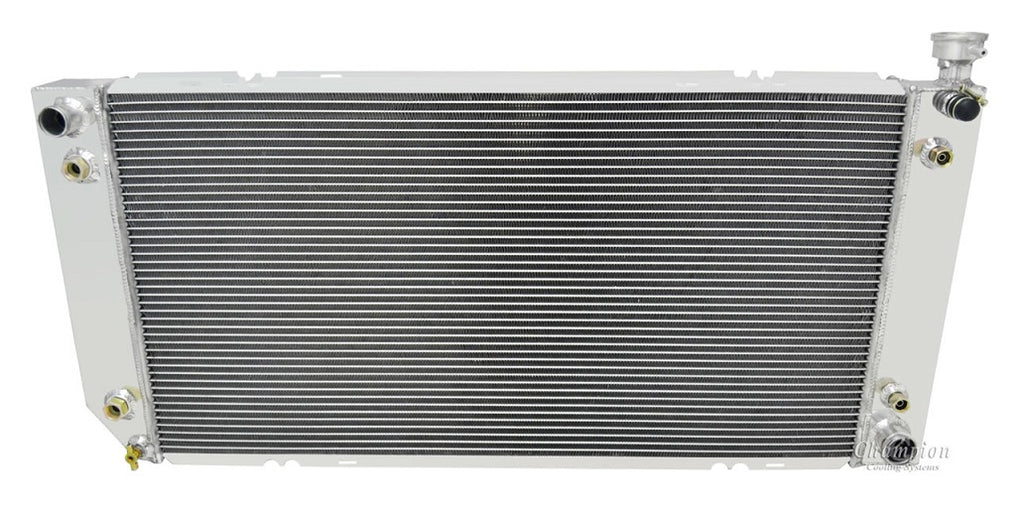

Champion All Aluminum Radiator
3-Row Core | Cools up to 800hp

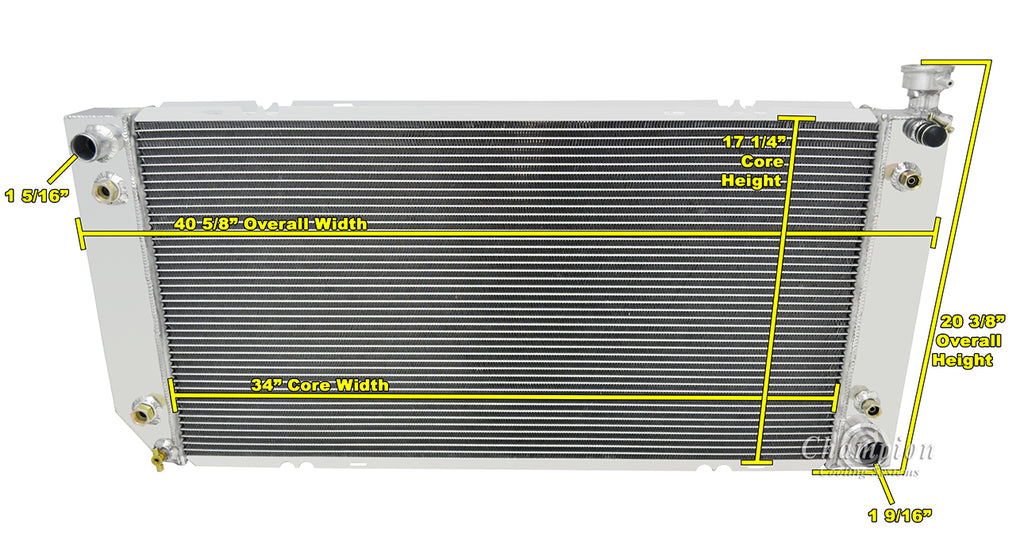

Radiator Dimensions:
Total: 20.38" tall x 40.58" wide
Core: 17.25" tall x 34" wide x 2.25" thick
Inlet: 1.31" driver side
Outlet: 1.55" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Saddle Mounted
Transmission Cooler included
(1/2"- 20 straight thread w/ 5/8"-18 adapter)
Engine oil Cooler included
(M20 x 1.5 w/ 3/4"-18 adapter)
When using electric fans (sold separately):
Two 14" Electric fans or one or two 16" electric fans recommended for this core size
Custom shroud for electric fan(s) available upon request:
3-Row Core | Cools up to 800hp
Radiator Dimensions:
Total: 20.38" tall x 40.58" wide
Core: 17.25" tall x 34" wide x 2.25" thick
Inlet: 1.31" driver side
Outlet: 1.55" passenger side
Tanks: 2.5" thick
Tubes: 0.63" thick
Saddle Mounted
Transmission Cooler included
(1/2"- 20 straight thread w/ 5/8"-18 adapter)
Engine oil Cooler included
(M20 x 1.5 w/ 3/4"-18 adapter)
When using electric fans (sold separately):
Two 14" Electric fans or one or two 16" electric fans recommended for this core size
Custom shroud for electric fan(s) available upon request:
