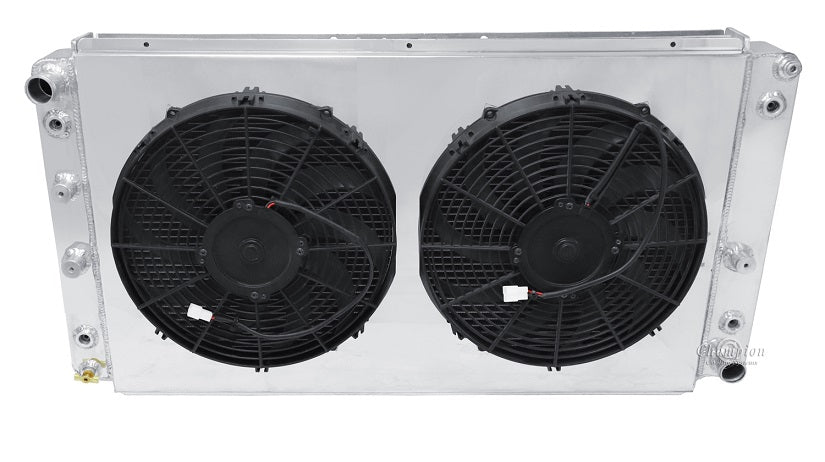

CC1517-1517FS14C 3 Row Combo

Champion All Aluminum Radiator Plus
Aluminum Shroud and (2) Pro-Series 14" Fans
3-Row Core | Cools up to 750hp

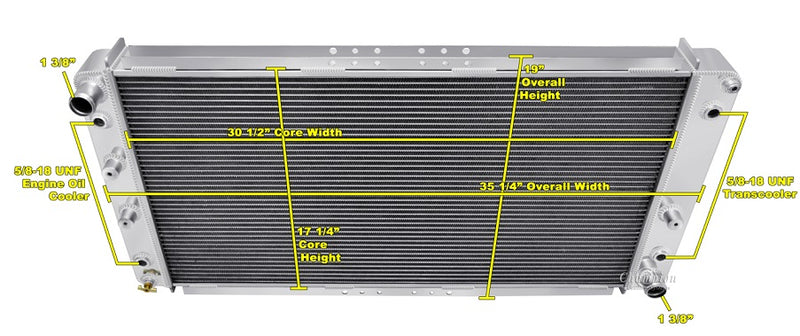

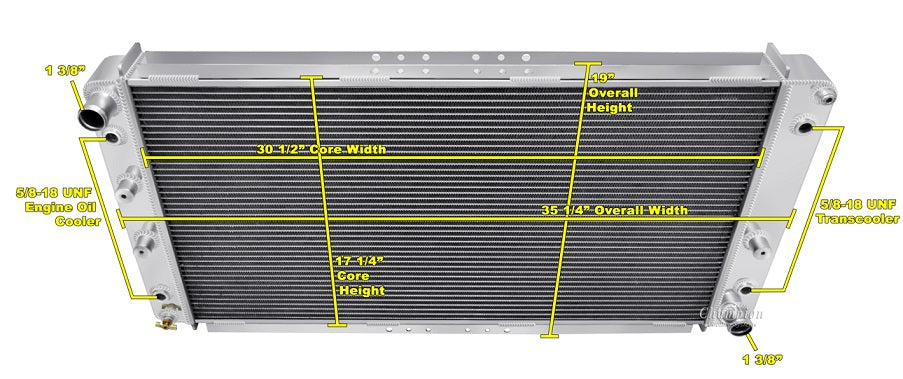

Radiator Dimensions:
Total: 19" tall (20.13" with cap) x 35.25” wide
Core: 17.25” tall x 30.5" wide x 2.25" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Total Thickness: 6" ( 4.5" between Fan Motors)

Transmission Cooler Included (5/8-18 UNF)
Engine Oil Cooler Included (5/8-18 UNF)

Includes:
Two 14" Pro-Series Electric fans
