CC1517 3 Row

Champion All Aluminum Radiator
3-Row Core | Cools up to 750hp

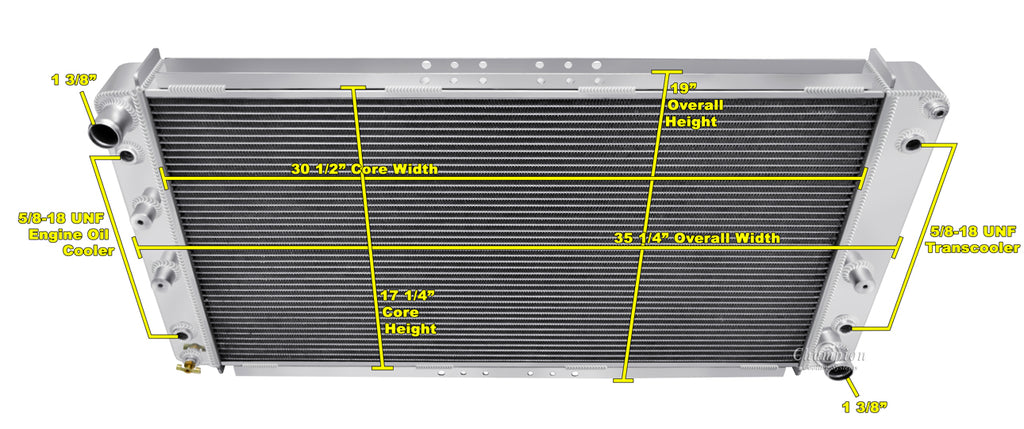

Radiator Dimensions:
Total: 19" tall (20.13" with cap) x 35.25” wide
Core: 17.25” tall x 30.5" wide x 2.25" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick

Transmission Cooler Included (5/8-18 UNF)
Engine Oil Cooler Included (5/8-18 UNF)

When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)
