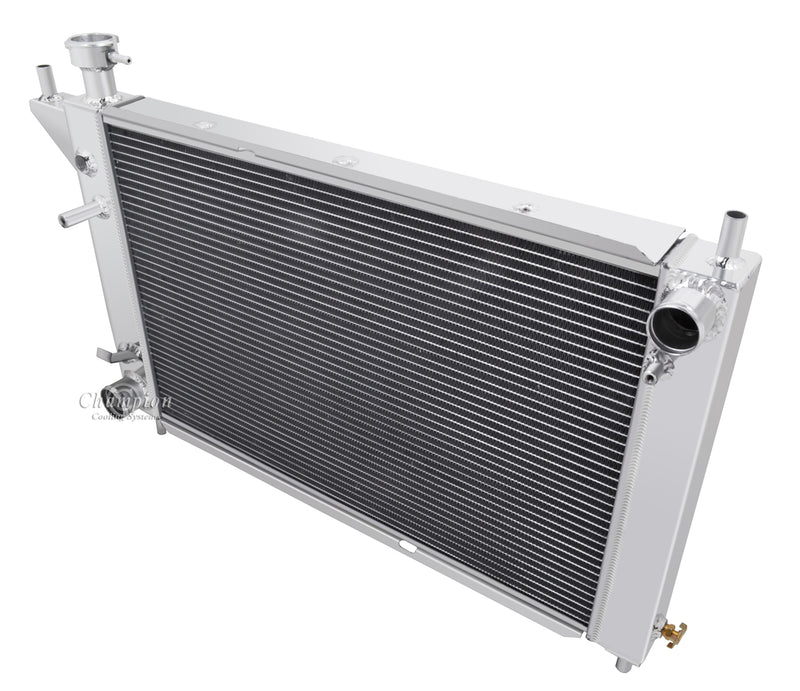

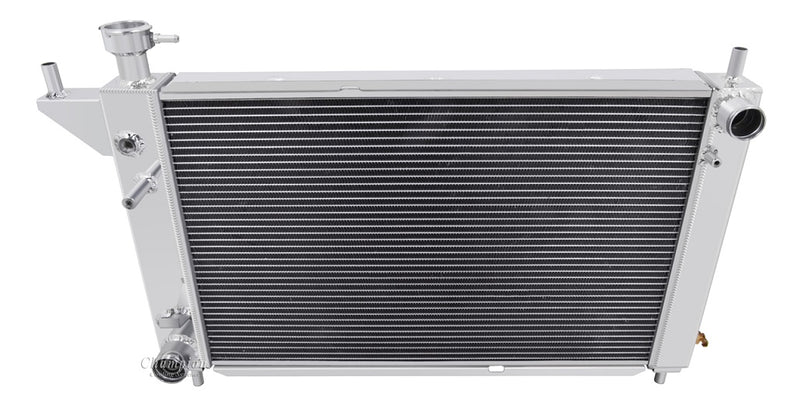

CC1488 3 Row

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp

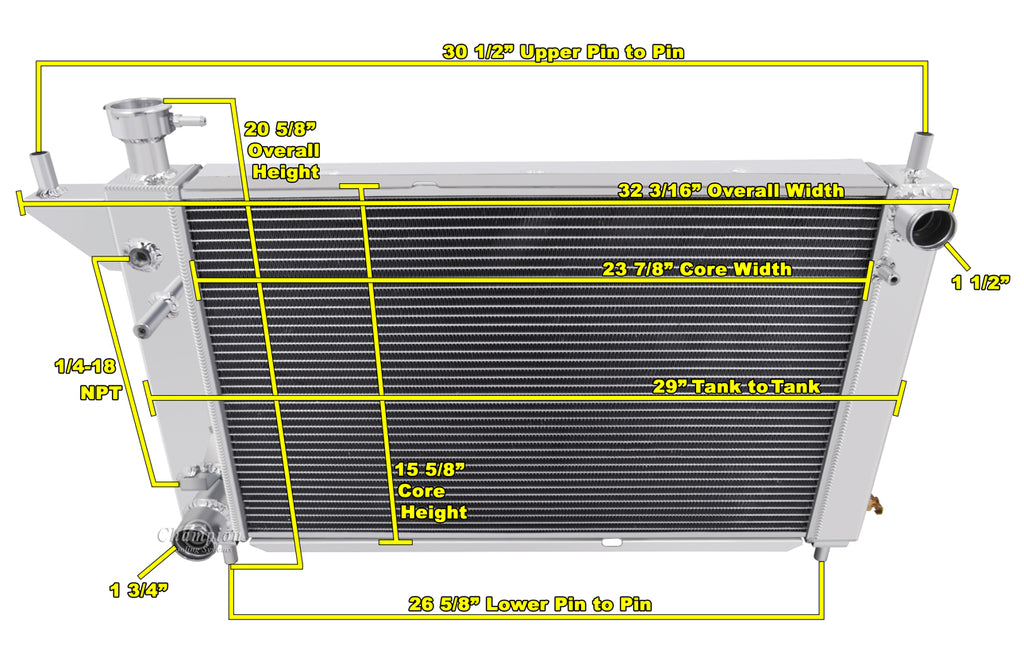

Radiator Dimensions:
Total: 20.5" tall (with cap) x 32.5" wide
Core: 14.75" tall x 23.83" wide x 2" thick
Inlet: 1.5" passenger side
Outlet: 1.75" drivers side
Tanks: 2.75" thick
Tubes: 0.63" thick

Pin Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/8-27NPT)

Recommended fans:
Two 12" Electric fans recommended for this core size (sold separately)
