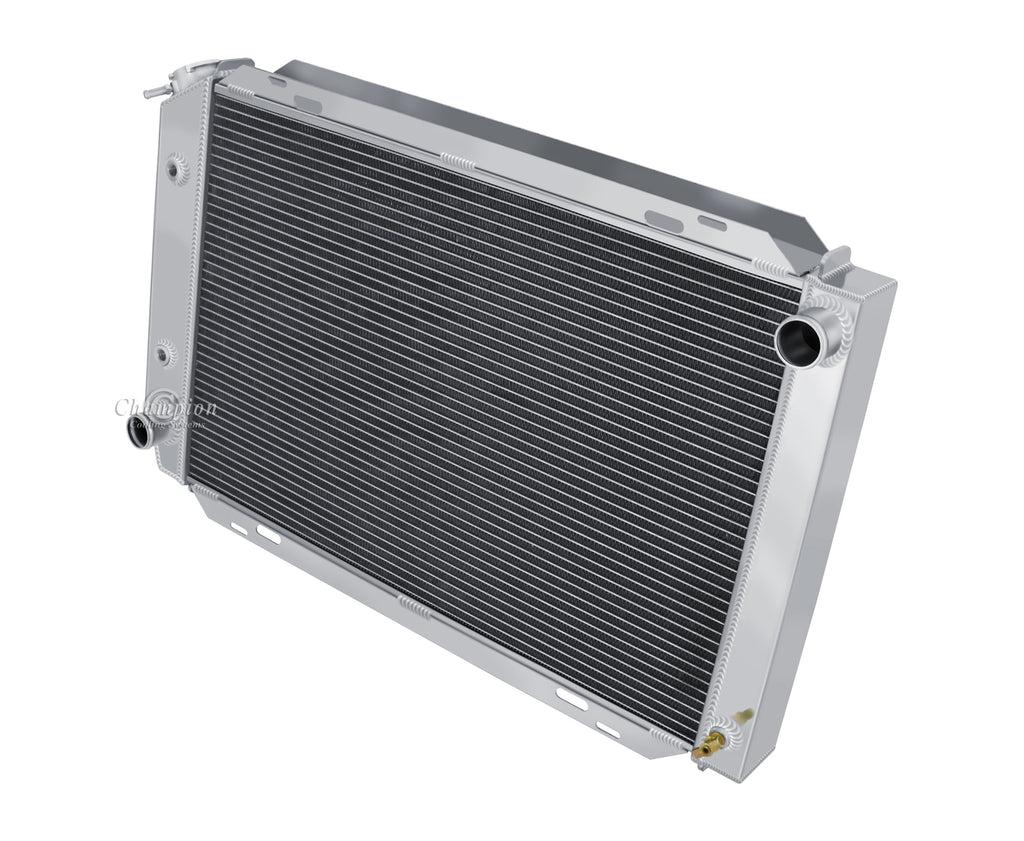

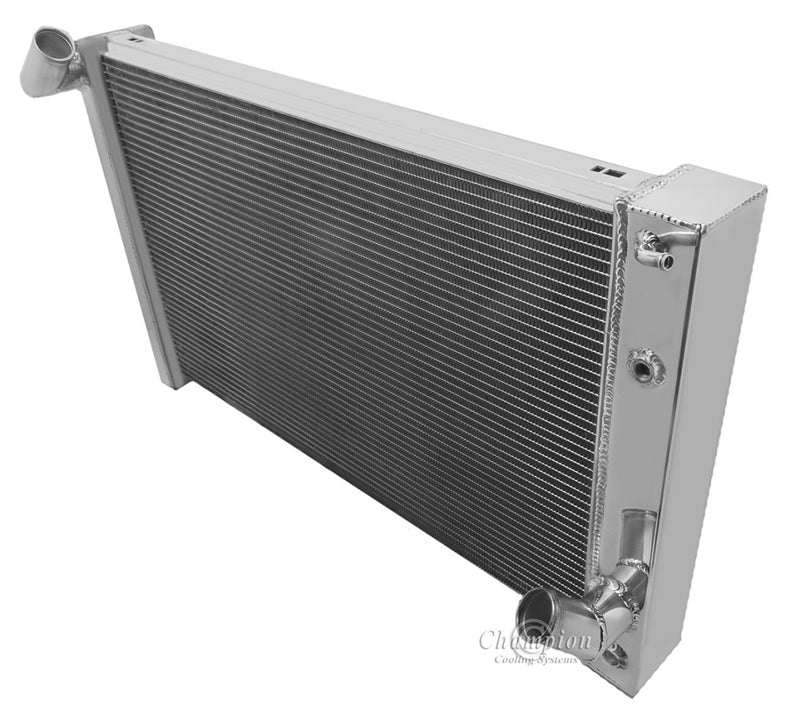

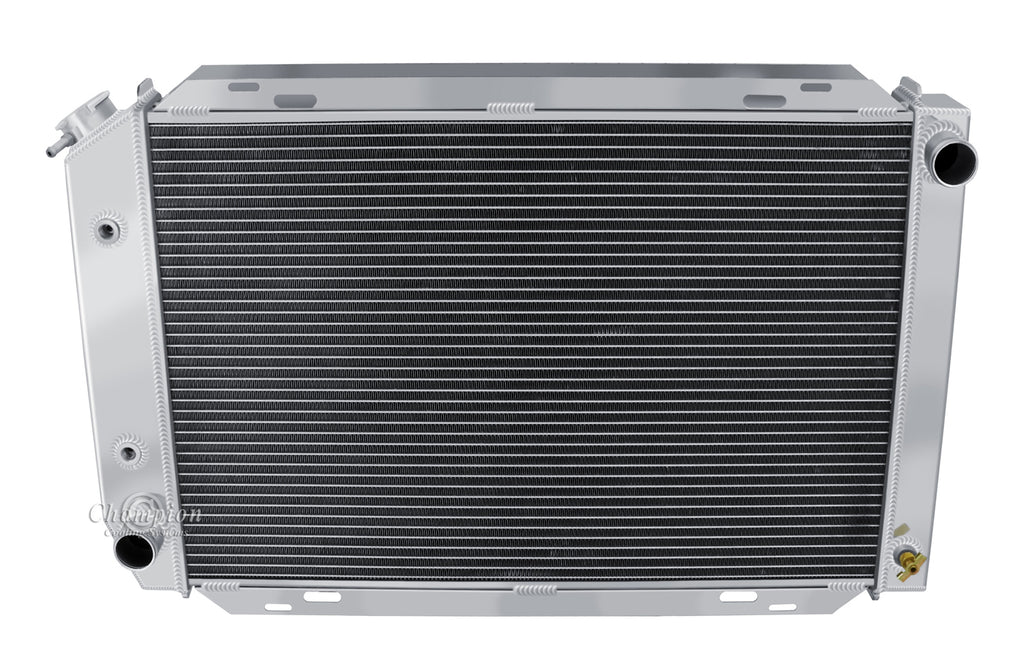

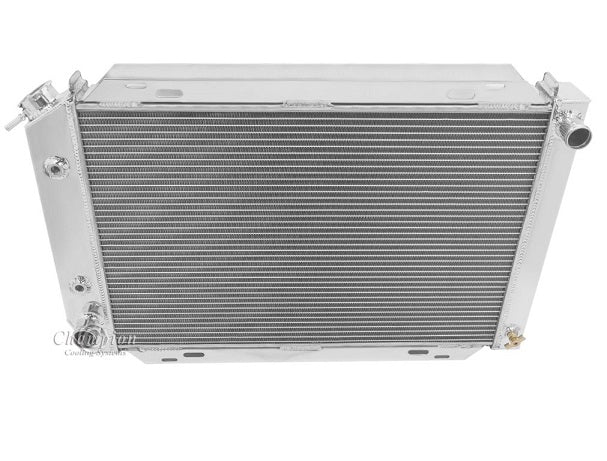

CC138B-CY 3 Row Coyote Swaps

All Aluminum Champion Radiator
3-Row Core | Cools up to 700hp
This version has the correct outlets for a Coyote engine

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick

Saddle Mounted

16 lb. Radiator cap included
Transmission Cooler included (1/4-18 NPT)
Aluminum Fan Shroud is also available (sold separately)

One 16" or 2 - 12" Electric Cooling Fans options available
