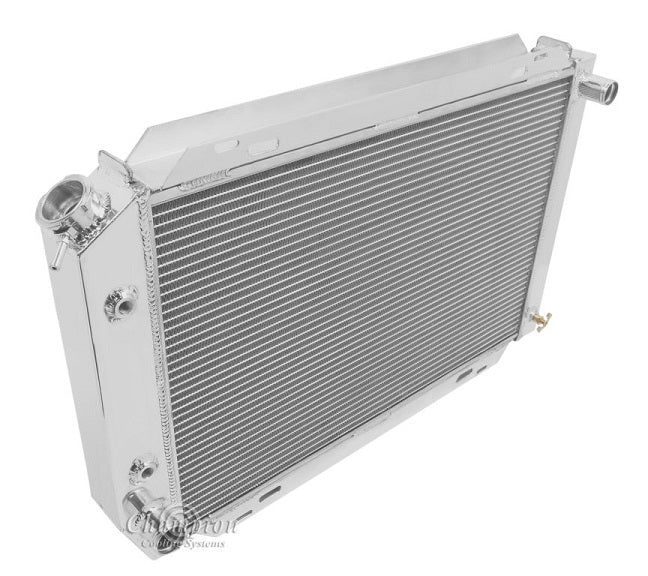

CC138B-CY-138FS11SP 3 Row Combo Coyote Swap

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 2-11" SPAL Medium Profile fans
3-Row Core | Cools up to 700hp
This version has the correct outlets for a Coyote engine

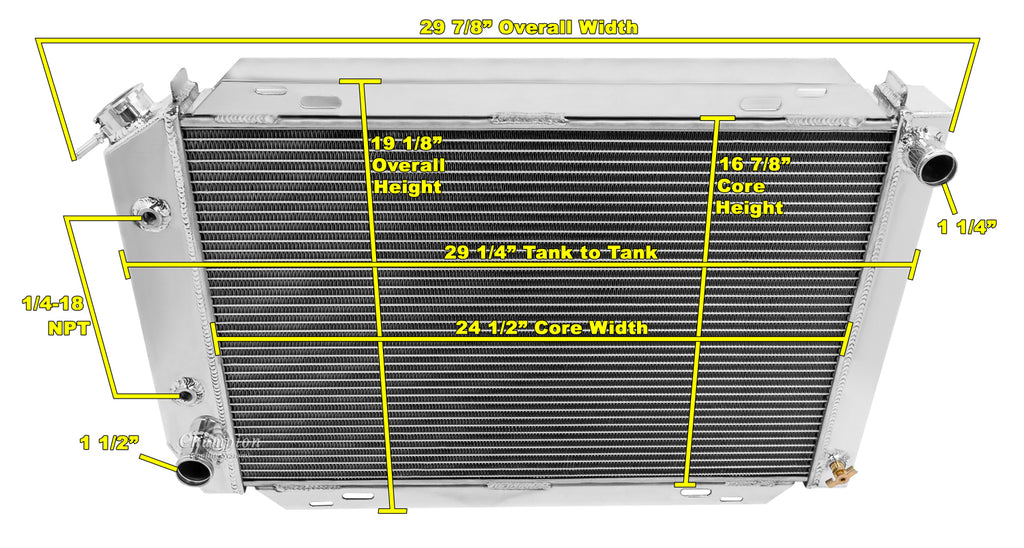

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: 1.5" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.5 to back of fans, 5.75" at center
Fan Thickness: 2.05

Saddle Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/4-18 NPT)
