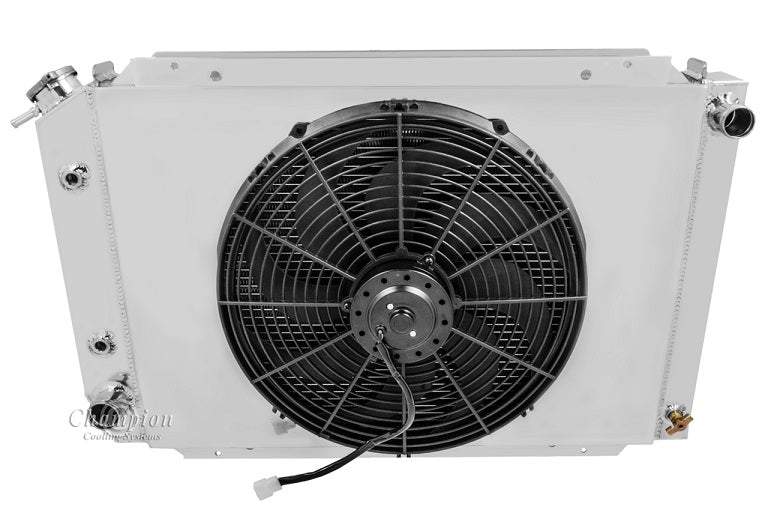

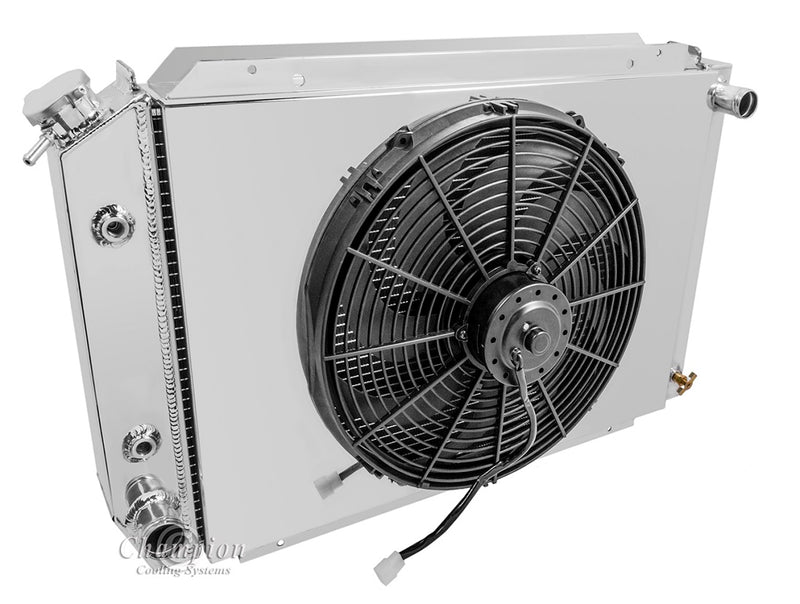

CC138B-138FS16C 3 Row Combo

All Aluminum Champion Radiator
Plus Ledfoot Racing Aluminum Shroud & 16" fan
Verify clearance for electric fan
3-Row Core | Cools up to 700hp

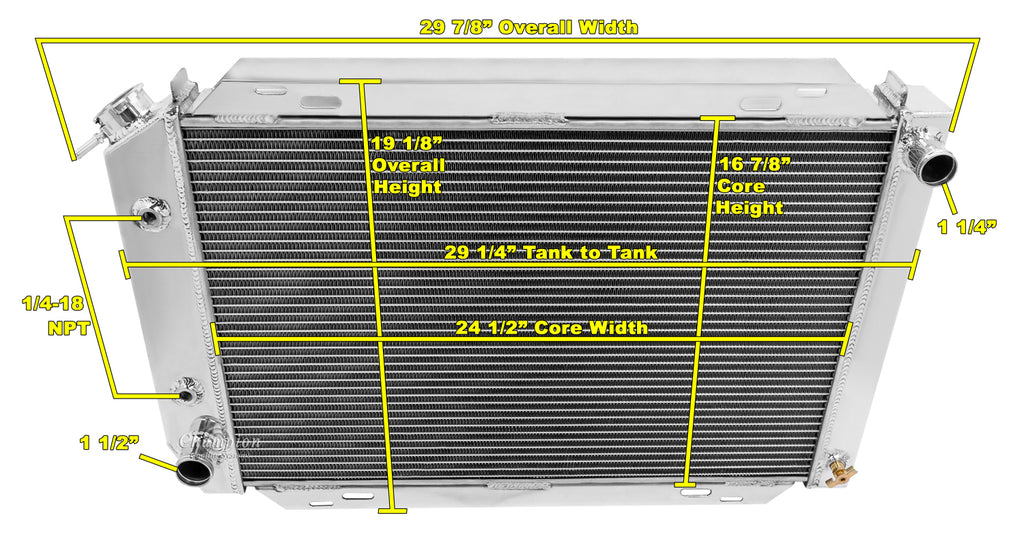

Radiator Dimensions:
Total: 19.25" tall (with cap) x 29.25" wide
Core: 16.75" tall x 24.5" wide x 2.5" thick
Inlet: 1.25" passenger side
Outlet: 1.5" driver side
Tanks: 2.75" thick
Tubes: 0.75" thick
Total Thickness: 6.25"

Saddle Mounted

13 lb. Radiator cap included
Transmission Cooler included (1/4-18 NPT)
