Description

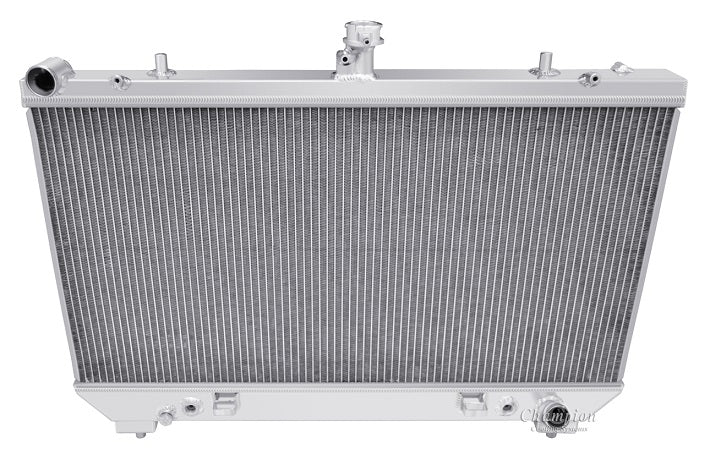

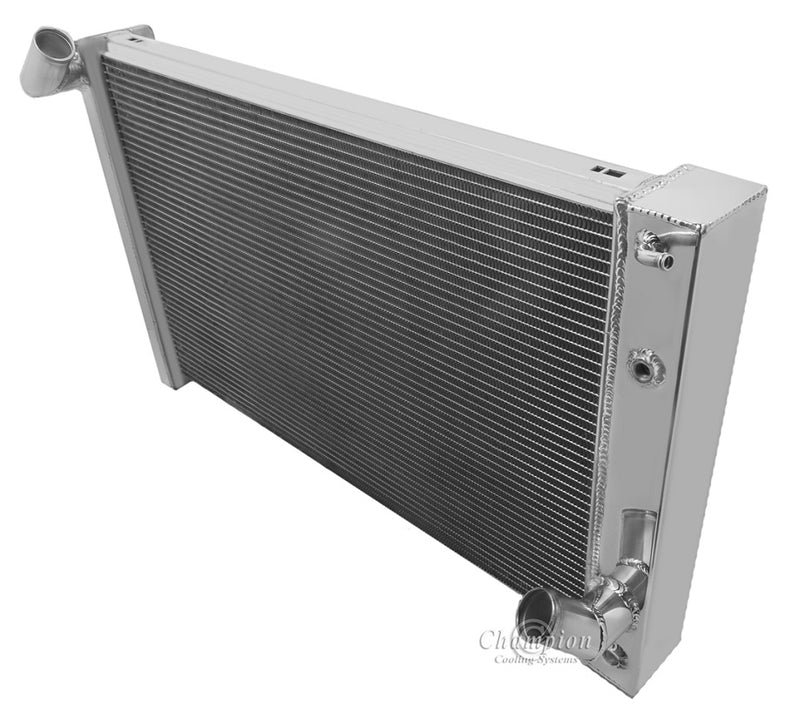

Champion All Aluminum Radiator
3-Row Core | Cools up to 700hp
CC13142 Radiator Dimensions:
Total: 23.25" tall (with cap) x 30.5" wide
Core: 15.13" tall x 29.87" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick
Pin Mounted
13. lb Radiator Cap Included
Transmission Cooler Included (9/16-18 UNF)
When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:
3-Row Core | Cools up to 700hp
CC13142 Radiator Dimensions:
Total: 23.25" tall (with cap) x 30.5" wide
Core: 15.13" tall x 29.87" wide x 2" thick
Inlet: 1.38" driver side
Outlet: 1.38" passenger side
Tanks: 2.5” thick
Tubes: 0.63" thick
Pin Mounted
13. lb Radiator Cap Included
Transmission Cooler Included (9/16-18 UNF)
When using electric fans:
Two 14" Electric fans recommended for this core size (sold separately)
Custom shroud for electric fan(s) available upon request:
